Building management system KNX

Touch sensor 2gang thermostat, display, intg bus coupl. unit,KNX-R.3, glass bl. 75642155

Name: 75642155
Brand: Hager
SKU: 75642155

EAN

4011334381419

Packaging

1 Piece

Accessories
Technical properties
Environmental value
Documentations
More products

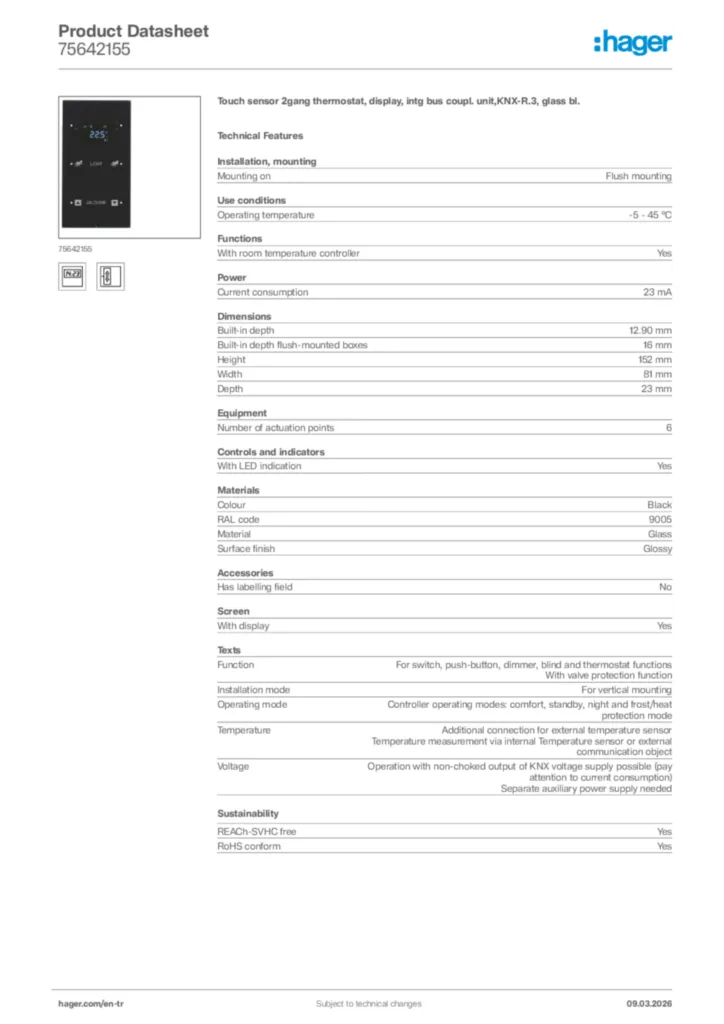

Download the data sheet

Complete your system

1809

Wall box TS

1824

Wall bo hollow-wall box, oval T

TGA200

Power supply 24 V DC 1A

Accessories/spare parts for room thermostat/clock thermostat 1 products available

Technical properties

Mounting on

Flush mounting

Operating temperature

-5 - 45 °C

With room temperature controller

Yes

Current consumption

23 mA

Built-in depth

12.90 mm
Built-in depth flush-mounted boxes

16 mm
Height

152 mm
Width

81 mm
Depth

23 mm

Number of actuation points

6

With LED indication

Yes

Colour

Black
RAL code

9005
Material

Glass
Surface finish

Glossy

Has labelling field

No

With display

Yes

Function

For switch, push-button, dimmer, blind and thermostat functions, With valve protection function
Installation mode

For vertical mounting
Operating mode

Controller operating modes: comfort, standby, night and frost/heat protection mode
Temperature

Additional connection for external temperature sensor, Temperature measurement via internal Temperature sensor or external communication object
Voltage

Operation with non-choked output of KNX voltage supply possible (pay attention to current consumption), Separate auxiliary power supply needed

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
