Building management system KNX

Touch sensor, 4-gang comf, intg bus coupling unit, KNX - R.1, glass p. white 75144160

Name: 75144160
Brand: Hager
SKU: 75144160

EAN

4011334383512

Packaging

1 Piece

Important information before ordering:
This product requires to be configurated before it can be ordered.
The configuration must be completed using our online configurator, which is accessible directly from this page.

Accessories
Technical properties
Environmental value
Documentations
More products

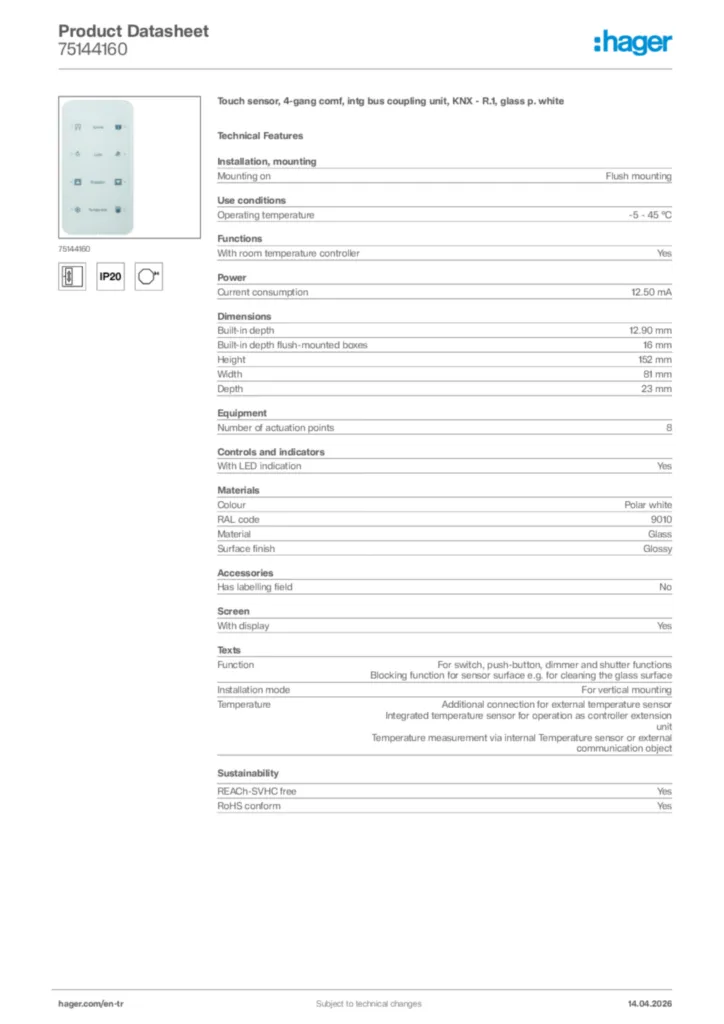

Download the data sheet

Complete your system

1809

Wall box TS

1824

Wall bo hollow-wall box, oval T

Accessories/spare parts for room thermostat/clock thermostat 1 products available

Technical properties

Mounting on

Flush mounting

Operating temperature

-5 - 45 °C

With room temperature controller

Yes

Current consumption

12.50 mA

Built-in depth

12.90 mm
Built-in depth flush-mounted boxes

16 mm
Height

152 mm
Width

81 mm
Depth

23 mm

Number of actuation points

8

With LED indication

Yes

Colour

Polar white
RAL code

9010
Material

Glass
Surface finish

Glossy

Has labelling field

No

With display

Yes

Function

For switch, push-button, dimmer and shutter functions, Blocking function for sensor surface e.g. for cleaning the glass surface
Installation mode

For vertical mounting
Temperature

Additional connection for external temperature sensor, Integrated temperature sensor for operation as controller extension unit, Temperature measurement via internal Temperature sensor or external communication object

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
