Rocker switch 3 x 1-pole Off, Module inserts 633023
EAN
4011334234326
Packaging
10 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
See All (10)
Compatible products
-
Referenced by 266 products available
Accessories mandatory
-
16658982Rocker 3gang, S.1, white glossy
-
14657009Rocker 3gang, K.1, p. white glossy
-
14657006Rocker 3gang, K.1, ant. matt, lacq.
-
14657004Rocker 3gang, K.5, stainless steel matt, lacq.
-
16658989Rocker 3gang, S.1/B.3/B.7, p. white glossy
-
16651909Rocker 3gang, S.1/B.3/B.7, p. white, matt, plastic
-
16651606Rocker 3gang, B.3/B.7, ant., matt
-
16651404Rocker 3gang, B.7, al., matt, lacq.
-
16652089Rocker 3gang, R.1/R.3, p. white glossy
-
16652045Rocker 3gang, R.1/R.3, black glossy
Referenced by
-
10128982Frame 2gang, S.1, white glossy
-
13097003Frame l. cut-out, K.5, al., al. anodised
-
13097006Frame l. cut-out, K.1, ant. matt, lacq.
-
13097009Frame l. cut-out, K.1, p. white glossy
-
14657009
Rocker 3gang, K.1, p. white glossy
-
16658982
Rocker 3gang, S.1, white glossy
-
13096089Frame l. cut-out, Q.1, p. white velvety
-
10158982Frame 5gang, S.1, white glossy
-
10158989Frame 5gang, S.1, p. white glossy
-
10159909Frame 5gang, S.1, p. white, matt, plastic
-
13098989Frame l. cut-out, S.1, p. white glossy
-
10238919Frame 3gang hor., lab. field, S.1, p. white glossy
-
10128989Frame 2gang, S.1, p. white glossy
-
10129909Frame 2gang, S.1, p. white, matt, plastic
-
10148982Frame 4gang, S.1, white glossy
-
10148989Frame 4gang, S.1, p. white glossy
-
10149909Frame 4gang, S.1, p. white, matt, plastic
-
10128919Frame 2gang vert., lab. field, S.1, p. white glossy
-
10138919Frame 3gang vert., lab. field, S.1, p. white glossy
-
10228919Frame 2gang hor., lab. field, S.1, p. white glossy
Technical properties
Electric current
-
Switching current16 AX (200W LED (SBL))
-
Rated current16 A
Installation, mounting
-
Mounting onFlush mounting
Voltage
-
Rated voltage400 V
Frequency
-
Frequency50 - 60 Hz
Materials
-
Surface finishMatt
-
MaterialMetal, Plastic
Identification
-
Assembly arrangementBasic element
Connectivity
-
Mounting typeClamp mounting, Screw connection
Controls and indicators
-
Number of buttons3
Dimensions
-
Built-in depth32 mm
-
Built-in depth flush-mounted boxes35 mm
Safety
-
Ingress Protection (IP) classIP20
-
Impact resistance IKIK07
Architecture
-
Control/operation elementSingle rocker
Texts
-
Type of connectionWith screw terminals
-
LightingCan be illuminated using neon lamp, incandescent or LED unit with N terminal
-
Switch mode3x 1--pole off
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

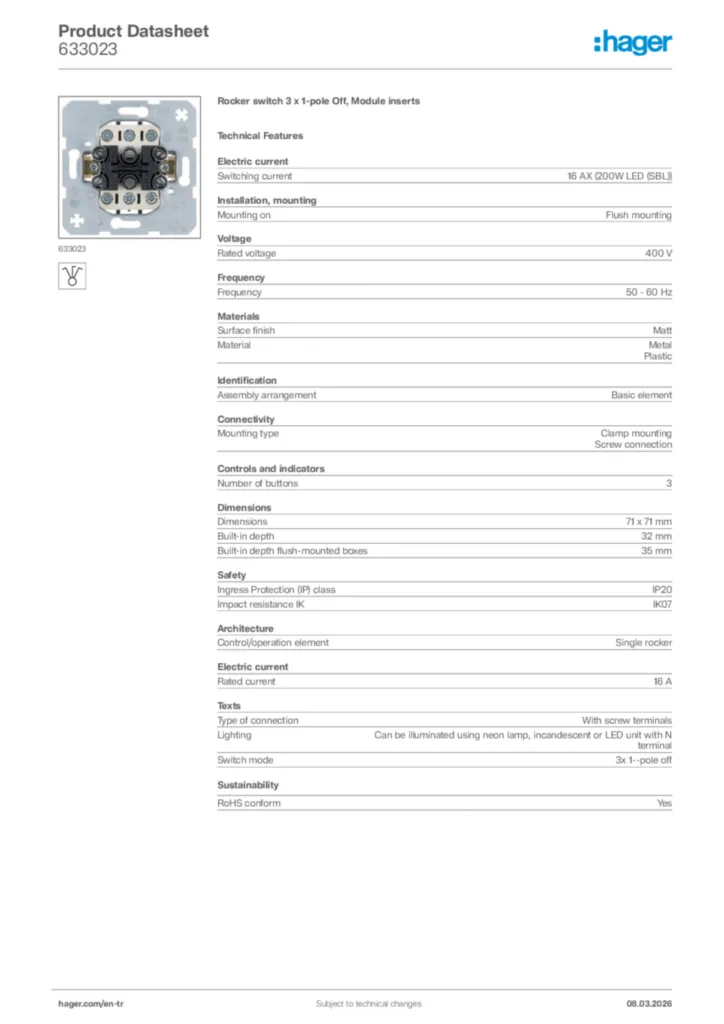

Product datasheet
Hager Product data sheet 633023
Rocker switch 3 x 1-pole Off, Module inserts
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2022-10-20
PDF236,10 kB
Declaration of conformity
Declaration of conformity International 2022-10-20
PDF230,58 kB
EU Declaration of Conformity
dc24-1014
PDF322,45 kB
