Rotary dimmer (R, L, LED), Soft locking, Light control 2873
EAN
4011334218715
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
See All (14)
Compatible products
-
Referenced by 268 products available
Accessories mandatory
-
11371909Cen. plate f.rot. dimmer/ potentiometer, setting knob, S.1/B.3/B.7, p.wh.m.plas.
-
11371606Centre plate f. rot. dimmer/rot. potentiometer, setting knob, B.3/B.7, ant. matt
-
11378989Centre plate f.rot. dimmer/potentiometer, setting knob, S.1/B.3/B.7, p.white gl.
-
11378982Centre plate for rot. dimmer/rot. potentiometer, setting knob, S.1, white glossy
-
11371404Centre plate f. rot. dimmer/potentiometer, setting knob, B.7, al. matt lacq.
-
11376089Centre plate f. rot. dimmer/potentiometer, setting knob, Q.x, p.white velv.
-
11376086Centre plate f.rot. dimmer/potentiometer, setting knob, Q.x, ant.velv.lacq.
-
11376084 -
11357009Centre plate f. rot. dimmer/rot. potentiometer, setting knob, K.1, p.white gl.
-
11357006Centre plate f. rot. dimmer/potentiometer, setting knob, K.1, ant. matt, lacq.
-
11357003Centre plate f. rot. dimmer/rot. potentiometer, setting knob, K.5, al. anodised
-
11357004Centre plate f.rot. dimmer/potentiometer, setting knob, K.5, steel matt finish
-
11372089Centre plate f. rot. dimmer/rot. potentiometer, setting knob, R.1/R.3, p.wh.gl.
-
11372045Centre plate f. rot. dimmer/rot. potentiometer, setting knob, R.1/R.3, black gl.
Referenced by
-
10148982Frame 4gang, S.1, white glossy
-
13096089Frame l. cut-out, Q.1, p. white velvety
-
11371404
Centre plate f. rot. dimmer/potentiometer, setting knob, B.7, al. matt lacq.
-
10158982Frame 5gang, S.1, white glossy
-
10158989Frame 5gang, S.1, p. white glossy
-
10159909Frame 5gang, S.1, p. white, matt, plastic
-
13098989Frame l. cut-out, S.1, p. white glossy
-
10128982Frame 2gang, S.1, white glossy
-
10128989Frame 2gang, S.1, p. white glossy
-
10129909Frame 2gang, S.1, p. white, matt, plastic
-
10238919Frame 3gang hor., lab. field, S.1, p. white glossy
-
10148989Frame 4gang, S.1, p. white glossy
-
10149909Frame 4gang, S.1, p. white, matt, plastic
-
11378982
Centre plate for rot. dimmer/rot. potentiometer, setting knob, S.1, white glossy
-
11378989
Centre plate f.rot. dimmer/potentiometer, setting knob, S.1/B.3/B.7, p.white gl.
-
11371606
Centre plate f. rot. dimmer/rot. potentiometer, setting knob, B.3/B.7, ant. matt
-
11371909
Cen. plate f.rot. dimmer/ potentiometer, setting knob, S.1/B.3/B.7, p.wh.m.plas.
-
10128919Frame 2gang vert., lab. field, S.1, p. white glossy
-
10138919Frame 3gang vert., lab. field, S.1, p. white glossy
-
10228919Frame 2gang hor., lab. field, S.1, p. white glossy
Technical properties
Voltage
-
Operating voltage230 - 230 V
Frequency
-
Frequency50 - 50 Hz
Electric current
-
Control current100 - 100 mA
Materials
-
MaterialMetal, Plastic
Dimensions
-
Diameter axis4 mm
-
Height82 mm
-
Width82 mm
-
Depth67 mm
Architecture
-
Control/operation elementPush & rotative switch
Lighting
-
Dimmable 230 V LED lamp3 - 100 W
Texts
-
Dimming principlePhase cut-on
-
FuseShort-circuit and overload-proof (fine-wire fuse), With spare fuse
-
VoltageVoltage test possible without dismantling
-
Installation modeWith spreader claws
-
Type of connectionWith plug-in terminals
-
TerminalWith terminal for base load from mains isolator
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

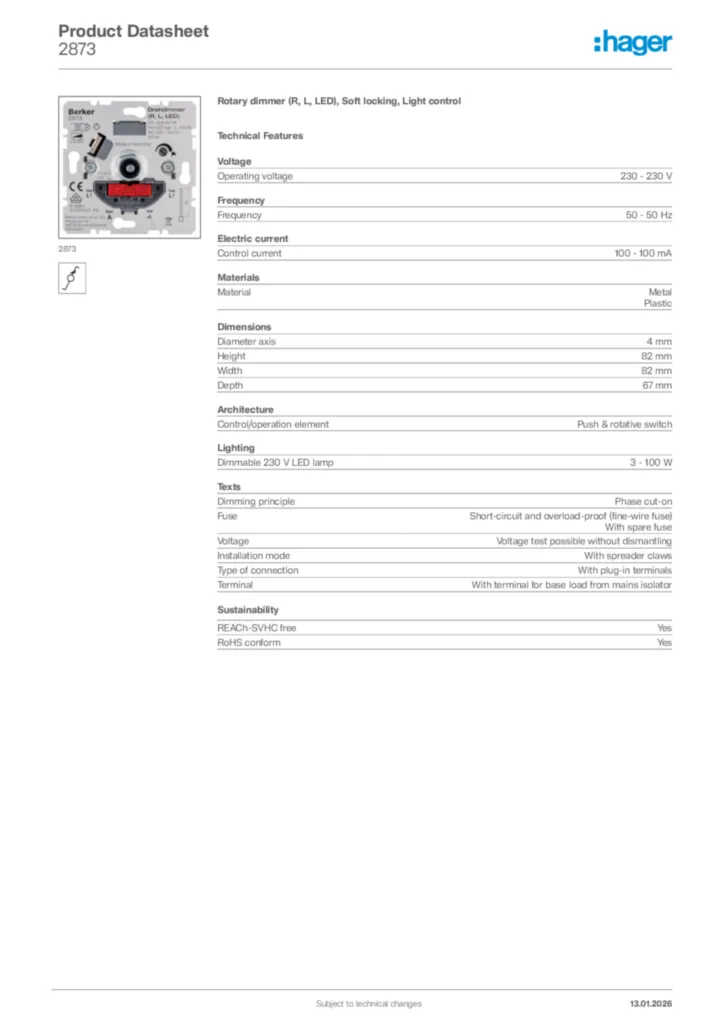

Product datasheet
Hager Product data sheet 2873
Rotary dimmer (R, L, LED), Soft locking, Light control
PDF -
Installation manual
Manual for 2873 - Rotary dimmer (R, L, LED) (EN, 2016-11)
Installation manual en-GB 2016-11-24
PDF1022,11 kB -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-08-03
PDF254,83 kB
More documentation
