Thermostat, NC contact, centre plate, rocker switch, K.1, p. white glossy 20307109
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 20 products available
Referenced by
-
13337009Frame 3gang vert., K.1, p. white glossy
-
13537006Frame 5gang vert., K.1, ant. matt, lacq.
-
13437006Frame 4gang vert., K.1, ant. matt, lacq.
-
13337006Frame 3gang vert., K.1, ant. matt, lacq.
-
13937006Frame 5gang hor., K.1, ant. matt, lacq.
-
13837006Frame 4gang hor., K.1, ant. matt, lacq.
-
13737006Frame 3gang hor., K.1, ant. matt, lacq.
-
13637006Frame 2gang hor., K.1, ant. matt, lacq.
-
13537009Frame 5gang vert., K.1, p. white glossy
-
13437009Frame 4gang vert., K.1, p. white glossy
-
13097009Frame l. cut-out, K.1, p. white glossy
-
13937009Frame 5gang hor., K.1, p. white glossy
-
13837009Frame 4gang hor., K.1, p. white glossy
-
13737009Frame 3gang hor., K.1, p. white glossy
-
13637009Frame 2gang hor., K.1, p. white glossy
-
13237006Frame 2gang vert., K.1, ant. matt, lacq.
-
13137006Frame 1gang, K.1, ant. matt, lacq.
-
13237009Frame 2gang vert., K.1, p. white glossy
-
13137009Frame 1gang, K.1, p. white glossy
-
13097006Frame l. cut-out, K.1, ant. matt, lacq.
Technical properties
Architecture
-
Control/operation elementRotative
Electric current
-
Rated current4 A
-
Max. switching current10 A
Voltage
-
Nominal voltage230-230 V
Power supply
-
Supply voltage230 V AC
Frequency
-
Frequency50 - 60 Hz
Settings
-
Comfort temperature setpoint5 - 30 °C
Materials
-
ColourPolar white
-
RAL code9010
-
Surface finishGlossy
-
MaterialMetal, Plastic
Dimensions
-
Height71 mm
-
Width71 mm
-
Depth50.90 mm
Screen
-
With displayNo
Equipment
-
Switching temperature difference0.50 K
-
Type of thermostatRoom thermostat
-
Type of probeBimetal
-
With heaterYes
Connection
-
Type of contacts1NC
Safety
-
Ingress Protection (IP) classIP20
Compatibility
-
Type of HVAC controlHeating
Use conditions
-
Energy efficiency classI (1%)
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

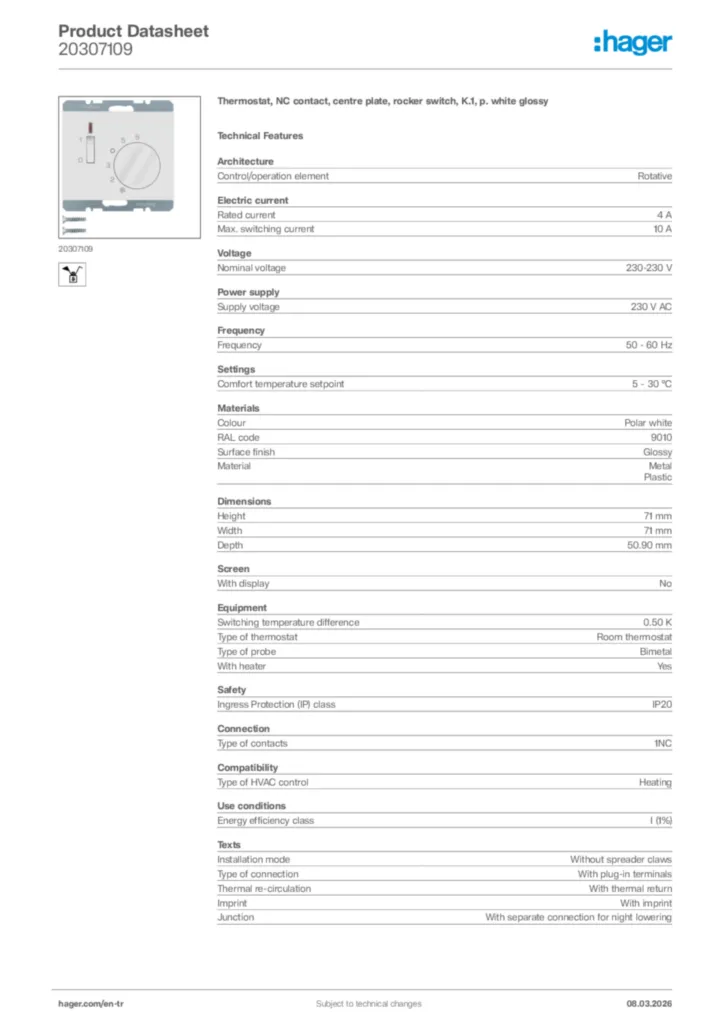

Hager Product data sheet 20307109
Thermostat, NC contact, centre plate, rocker switch, K.1, p. white glossy
PDF -
Installation manual
Manual for 2026xx-2030xx-2031xx - Thermostat, with centre plate, change-over contact/NC contact, 24 V AC/DC (EN, 2014-08)
Installation manual en-GB 2015-08-27
PDF495,19 kB -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-08-24
PDF296,65 kB
Declaration of Conformity
Declaration of conformity International 2021-08-24
PDF294,47 kB
