Silhouette 10A socket Horz + shutter WBSP1S
EAN
3250617580540
Packaging
10 PCEs
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Configuration
-
Number of modules1
Main electrical features
-
Nominal voltage250 V AC
-
Frequency50 Hz
Electric current
-
Rated current10 A
Dimensions
-
Insertion depth23 mm
-
Height77 mm
-
Width117 mm
Installation, mounting
-
Entriescable entries bevelled
-
Mounting typeflush-mounted
-
Installation modefor screw fastening
Connection
-
Type of connectionwith screw terminals
Scope of delivery
-
Scope of deliverysupplied with standard tapered point 32 mm fixing screws
Equipment
-
Number of socket outlets switchable1
Safety
-
RoHS conformYes
-
ProtectionEnhanced contact protection
Identification
-
Main design linesilhouette
Downloads
-
Product image
-
User brochure
Make the Switch Brochure
PDF1 MB -
Flyer
Make The Switch DL Brochure
PDF677 KB -

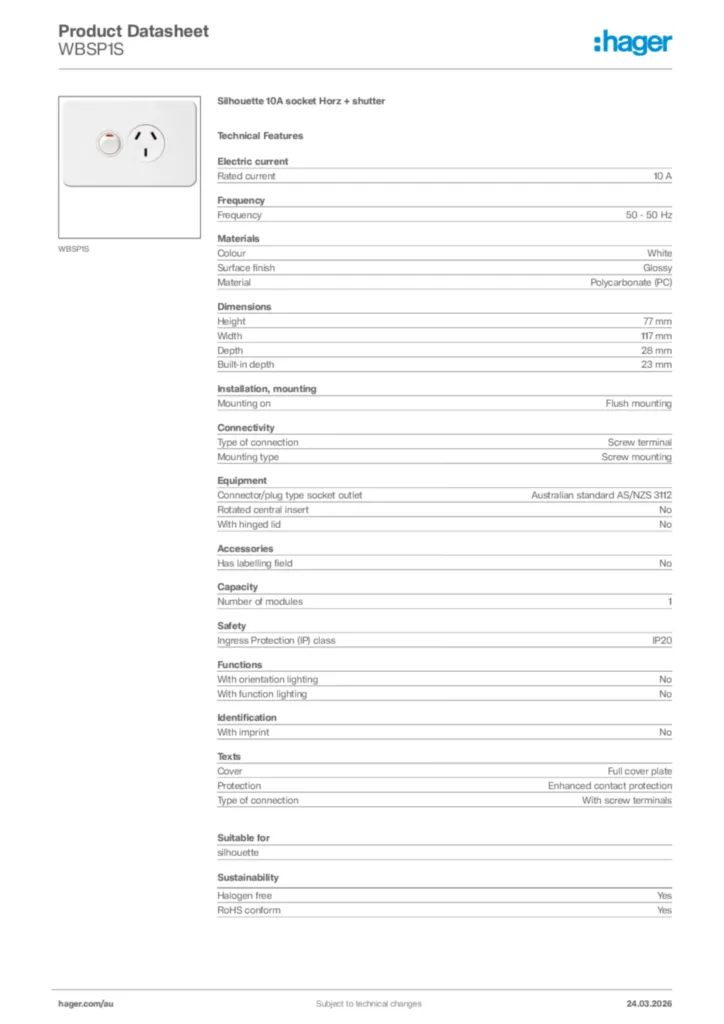

Product data sheet
Switches and Sockets Cutout Dimensions
PDF105 KB -
RoHS report
RoHS-declaration 2023-10-20 (english)
PDF32 KB
More documentation
