    Hager The Hager 9M 1-row DIN surface metal box with 7.5M door provides a neat indoor enclosure for small distribution and control assemblies. Accommodates 9 modules on 1 rail, 230-415 V. Robust steel (RAL9002) with IK05 impact resistance, IP30, Class I. 16 conduit inlets ease wiring. Surface screw mounting, snap-on door, non-transparent. Ideal for residential or light commercial panels.
    EAN
    9329659005787
    Packaging
    1 Piece
    • VT

    Surface metal DIN enclosure 1 row 9 modules IP30 IK05 steel grey-white 1 door VT09TP

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Surface metal DIN enclosure 1 row 9 modules IP30 IK05 steel grey-white 1 door

    VT09TP

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

    • Door/­op­er­ating panel 1 products available

    Complete your system

    • Door/­op­er­ating panel
    • VT031

      Door, VT, WITH CL001 LOCK to suit VT09F/VT09S Enclosures
      EUR 0.00  / *

    Technical properties

    Connec­tion
    • Number of conduit inlets
      16
    Voltage
    • Nominal voltage
      230 - 415 V
    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Surface mounting
    Equip­ment
    • Number of rails
      1
    • Number of rows
      1
    Capa­city
    • Number of modules
      9
    Dimen­sions
    • Height
      250 mm
    • Width
      259 mm
    • Depth
      71 mm
    • Built-in depth
      70 mm
    • Number of width units
      9
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      0
    • Door/­cover is trans­parent
      No
    • Cabinet door type
      Single door
    Connectivity
    • Mounting type
      Screw mounting
    Mater­ials
    • Material
      Steel
    • RAL code
      9002
    • Colour
      Grey white
    Safety
    • Protec­tion class
      Isol­a­tion class I
    • Impact resist­ance IK
      IK05
    • Ingress Protec­tion (IP) class
      IP30
    • Locking type
      Snap on lock, Without lock
    • Protec­tion class with door
      IP30

    Environmental value

    We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    REACH declaration VT09TP
    PDF
    RoHS report VT09TP
    PDF

    Downloads

    • Product image

      Image VT09TP | Hager Australia

      Product Image VT09TP

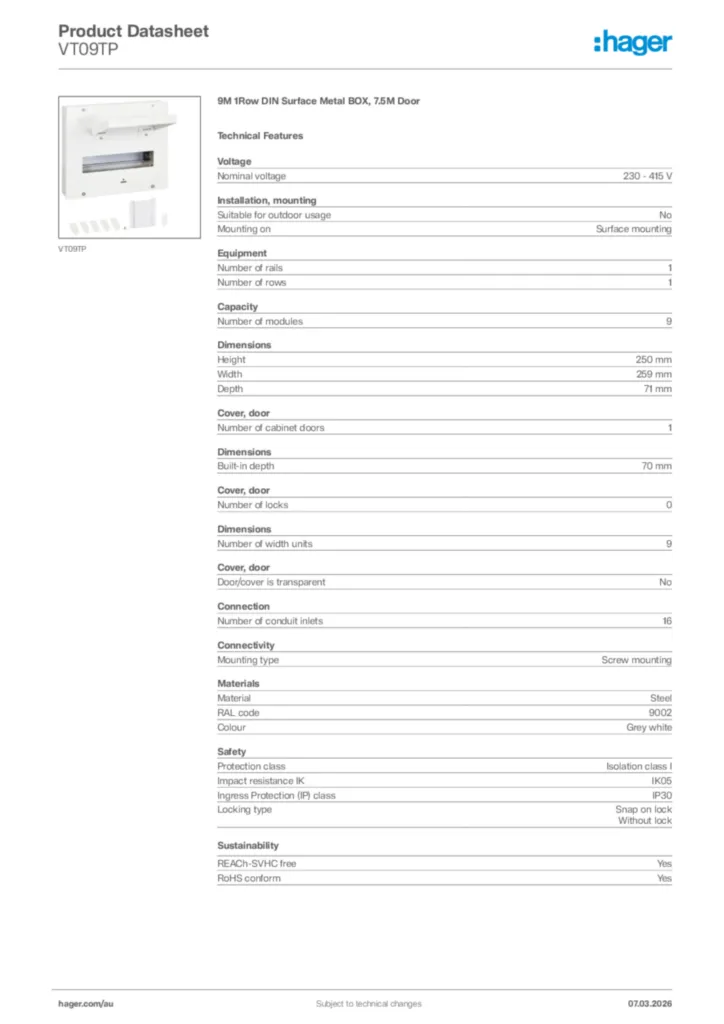

    • Product datasheet

      Image Hager Product data sheet VT09TP | Hager Australia

      Hager Product data sheet VT09TP

      9M 1Row DIN Surface Metal BOX, 7.5M Door

      PDF

    • Product data sheet

      Image Hager VT Metal Enclosure | Hager Australia

      Hager VT Metal Enclosure

      PDF
      393,83 kB
