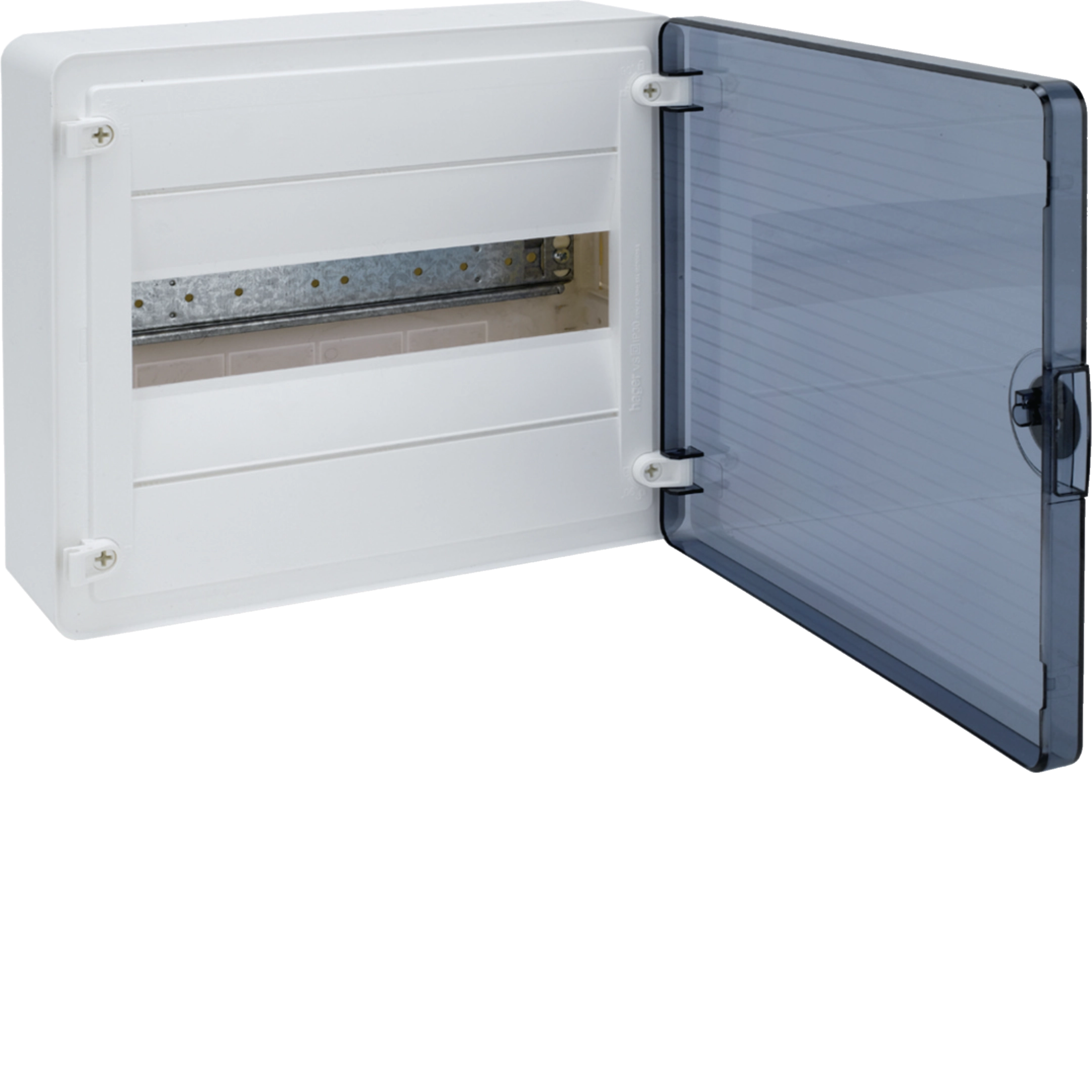

Hager The Hager Golf small surface-mounted 1-row distributor (12 modules) delivers reliable indoor circuit distribution for residential or light commercial use. Rated 80A, 400V, IP40, Class II, IK07. Includes N and PE terminal blocks and MS terminals for fast, tidy wiring, conduit inlets, and a transparent door for quick inspection. Pure white RAL9010 plastic enclosure, 252×282×99 mm.
EAN
3250616594425
Packaging
1 Piece
Small distributor Golf surface 1 row 12M IP40 N+PE transparent door 80A VS112TT
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Cover/infill panel/identification strip 1 products available -
Door/operating panel 2 products available -
Cover strip 1 products available -
Coax connector 1 products available -
Quick-release fastener for housing covers 1 products available
Complete your system
Technical properties
Voltage
-
Nominal voltage400 - 400 V
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current80 A
Equipment
-
Number of rails1
-
Number of rows1
-
Number of section in width1
-
With lockNo
-
Has neutral terminal blockYes
-
Has earthing terminal blockYes
-
Has mounting plateNo
Capacity
-
Number of modules12
Functions
-
With conduit inletsYes
Dimensions
-
Height252 mm
-
Width282 mm
-
Depth99 mm
-
Number of width units12
Cover, door
-
Number of cabinet doors1
-
Number of locks0
-
Door/cover is transparentYes
-
Cabinet door typeSingle door
Materials
-
MaterialPlastic
-
RAL code9010
-
ColourPure white
-
Ultraviolet-resistantNo
Safety
-
Protection classIsolation class II
-
Impact resistance IKIK07
-
Ingress Protection (IP) classIP40
-
Locking typeSnap on lock, Without lock
-
Glow wire test650 °C
-
Protection class with doorIP40
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

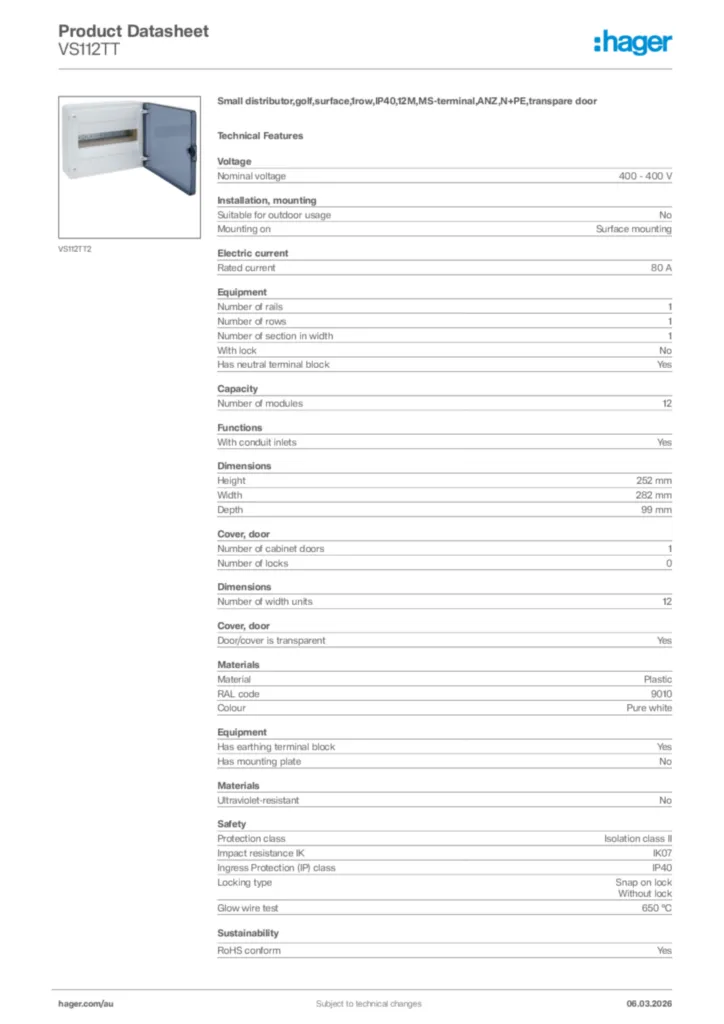

Hager Product data sheet VS112TT
Small distributor,golf,surface,1row,IP40,12M,MS-terminal,ANZ,N+PE,transpare door
PDF -
Installation manual
Installation manual en-GB 2021-05-17
PDF5,13 MB
