Hager The Hager VD/IC² small distribution board, AUS version, is a surface‑mount, 1‑row, 8‑module enclosure for indoor use. Rated 63 A at 400 V, it offers IP40 protection, Class II insulation and 650°C glow‑wire compliance. Includes one DIN rail, MS terminals, and N+PE terminal blocks, with conduit inlets and white opaque door. Compact 170×170.5×91 mm, ideal for residential or light commercial installations.
EAN
3250616467392
Packaging
1 Piece
Surface distribution board 1-row 8M IP40 63A N+PE MS terminals white door VD108PT
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Voltage
-
Nominal voltage400 - 400 V
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current63 A
Equipment
-
Number of rails1
-
Number of rows1
-
Number of section in width1
-
With lockNo
-
Has neutral terminal blockYes
-
Has earthing terminal blockYes
-
Has mounting plateNo
Capacity
-
Number of modules8
Functions
-
With conduit inletsYes
Dimensions
-
Height170 mm
-
Width170,50 mm
-
Depth91 mm
-
Number of width units8
Cover, door
-
Number of cabinet doors1
-
Number of locks0
-
Door/cover is transparentNo
-
Cabinet door typeSingle door
Materials
-
MaterialPlastic
-
RAL code9010
-
ColourPure white
-
Ultraviolet-resistantNo
Safety
-
Protection classIsolation class II
-
Ingress Protection (IP) classIP40
-
Locking typeSnap on lock, Without lock
-
Glow wire test650 °C
-
Protection class with doorIP40
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-

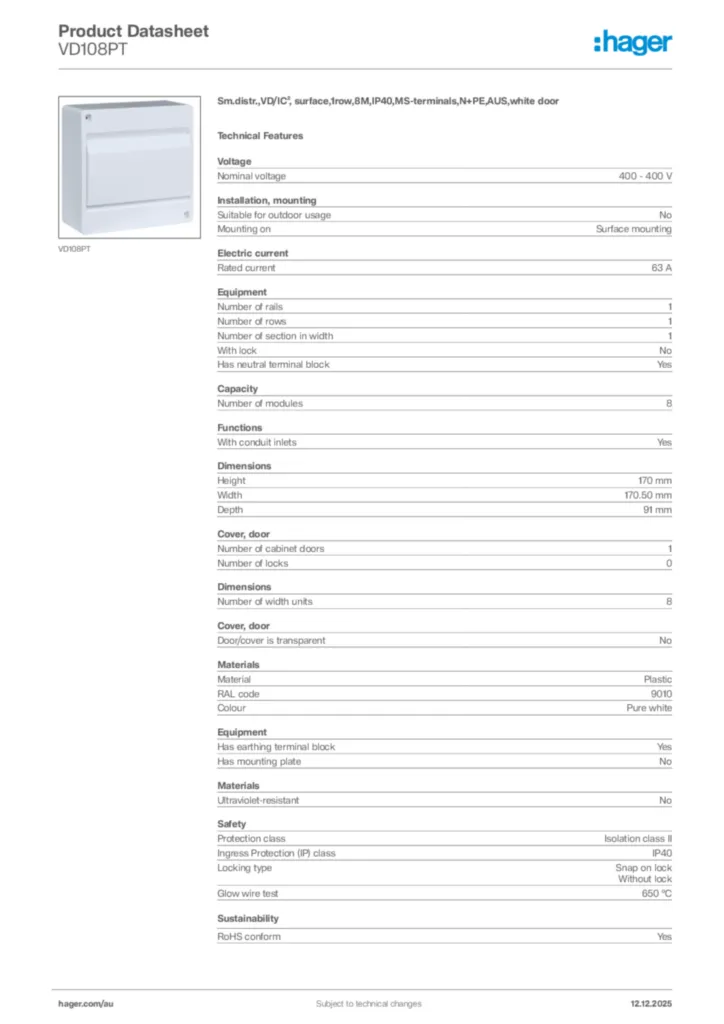

Product datasheet
Hager Product data sheet VD108PT
Sm.distr.,VD/IC², surface,1row,8M,IP40,MS-terminals,N+PE,AUS,white door
PDF -
Declaration of conformity
Declaration of conformity en-GB 2024-04-08
PDF205,55 kB
