Hager The Hager surface-mounted small distribution board offers 1 row/10 modules for neat indoor sub-distribution. Rated 63 A at 400 V with Class II insulation, IP40 and IK07 for solid safety. Supplied with N and PE terminal blocks and conduit inlets for fast wiring. Transparent door enables quick inspection. Pure white RAL9010 plastic enclosure suits residential and light commercial applications where compact, reliable circuit organisation is needed.
EAN
3250616467422
Packaging
1 Piece
Surface distribution board VD/IC² 1 row 10M IP40 N+PE 63A AUS transparent door VD110TT
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Voltage
-
Nominal voltage400 - 400 V
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current63 A
Equipment
-
Number of rails1
-
Number of rows1
-
Number of section in width1
-
With lockNo
-
Has neutral terminal blockYes
-
Has earthing terminal blockYes
-
Has mounting plateNo
Capacity
-
Number of modules10
Functions
-
With conduit inletsYes
Dimensions
-
Height170 mm
-
Width206,50 mm
-
Depth91 mm
-
Number of width units10
Cover, door
-
Number of cabinet doors1
-
Number of locks0
-
Door/cover is transparentYes
-
Cabinet door typeSingle door
Materials
-
MaterialPlastic
-
RAL code9010
-
ColourPure white
-
Ultraviolet-resistantNo
Safety
-
Protection classIsolation class II
-
Impact resistance IKIK07
-
Ingress Protection (IP) classIP40
-
Locking typeSnap on lock, Without lock
-
Glow wire test650 °C
-
Protection class with doorIP40
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

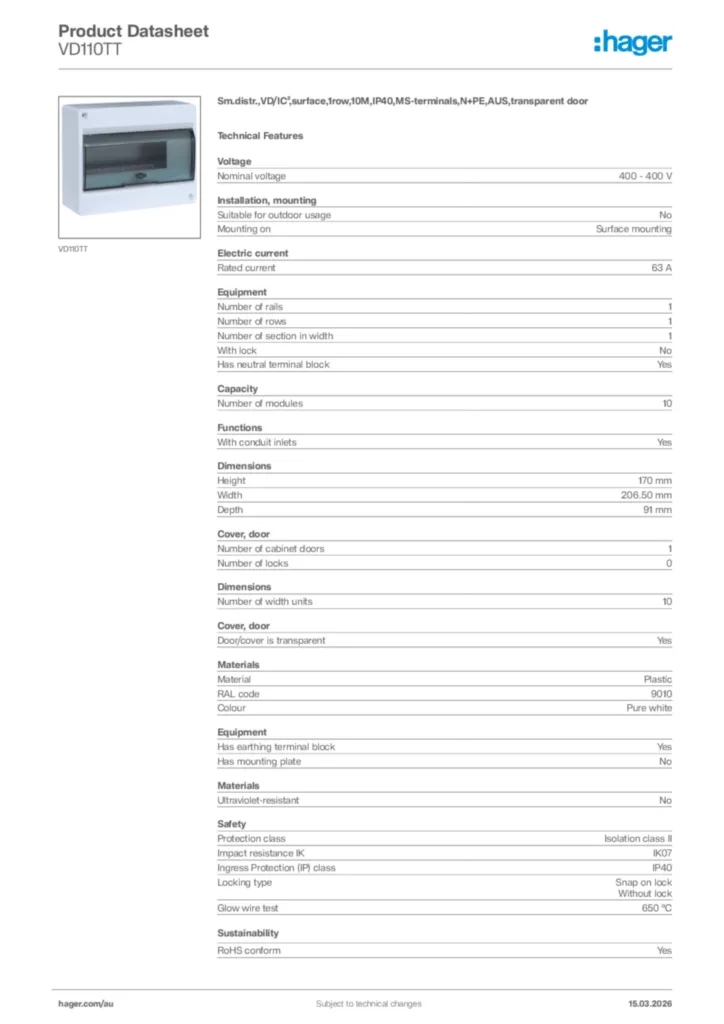

Hager Product data sheet VD110TT
Sm.distr.,VD/IC²,surface,1row,10M,IP40,MS-terminals,N+PE,AUS,transparent door
PDF -
Declaration of conformity
Declaration of conformity en-GB 2024-04-08
PDF205,55 kB
