Australia
Hager The Hager VD/IC² small surface‑mount distribution enclosure, 1 row/1 module, IP30, without door, safely houses a single modular device up to 63 A at 400 V. It features one DIN rail, conduit inlets, Class II insulation, IK07 impact resistance, and 750°C glow‑wire compliance. Pure white RAL9010 plastic. Ideal for indoor residential or light commercial add‑ons in Australian installations; no terminal blocks included.
EAN
3250616467149
Packaging
1 Piece
Small distribution board surface 1-row 1M 63A IP30 class II no door VD101NT
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Voltage
-
Nominal voltage400 - 400 V
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current63 A
Equipment
-
Number of rails1
-
Number of rows1
-
Number of section in width1
-
With lockNo
-
Has neutral terminal blockNo
-
Has earthing terminal blockNo
-
Has mounting plateNo
Capacity
-
Number of modules1
Functions
-
With conduit inletsYes
Dimensions
-
Height163,50 mm
-
Width27,50 mm
-
Depth71 mm
-
Number of width units1
Cover, door
-
Number of cabinet doors0
-
Number of locks0
Materials
-
MaterialPlastic
-
RAL code9010
-
ColourPure white
-
Ultraviolet-resistantNo
Safety
-
Protection classIsolation class II
-
Impact resistance IKIK07
-
Ingress Protection (IP) classIP30
-
Locking typeWithout lock
-
Glow wire test750 °C
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

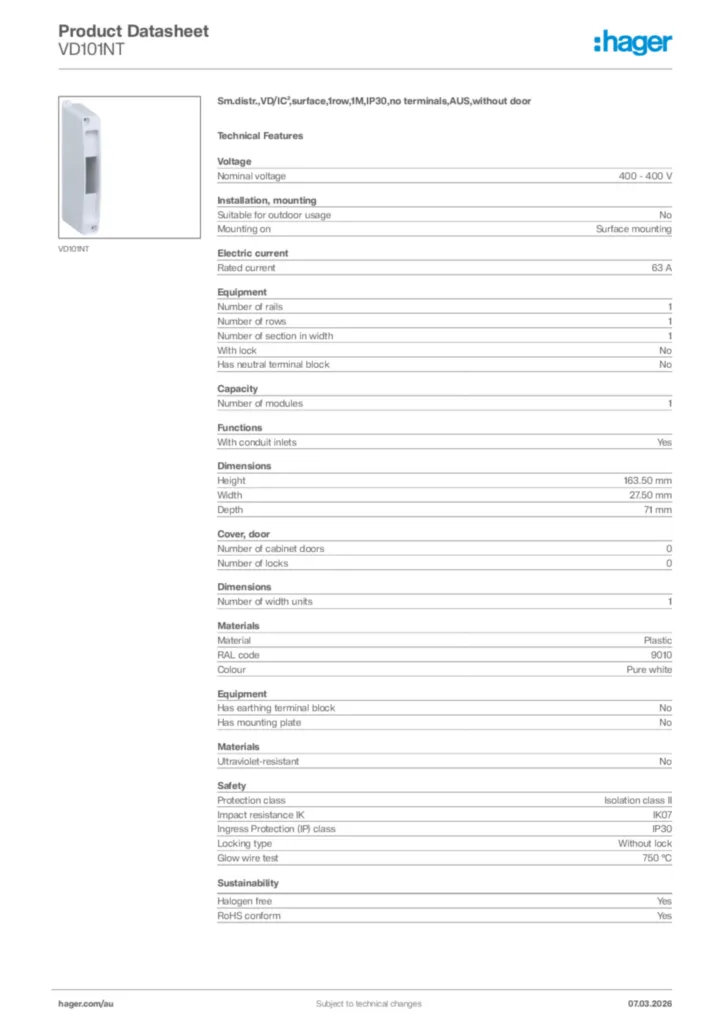

Hager Product data sheet VD101NT
Sm.distr.,VD/IC²,surface,1row,1M,IP30,no terminals,AUS,without door
PDF -
Installation manual
Installation manual International 2020-01-01
PDF2,36 MB -
Declaration of conformity

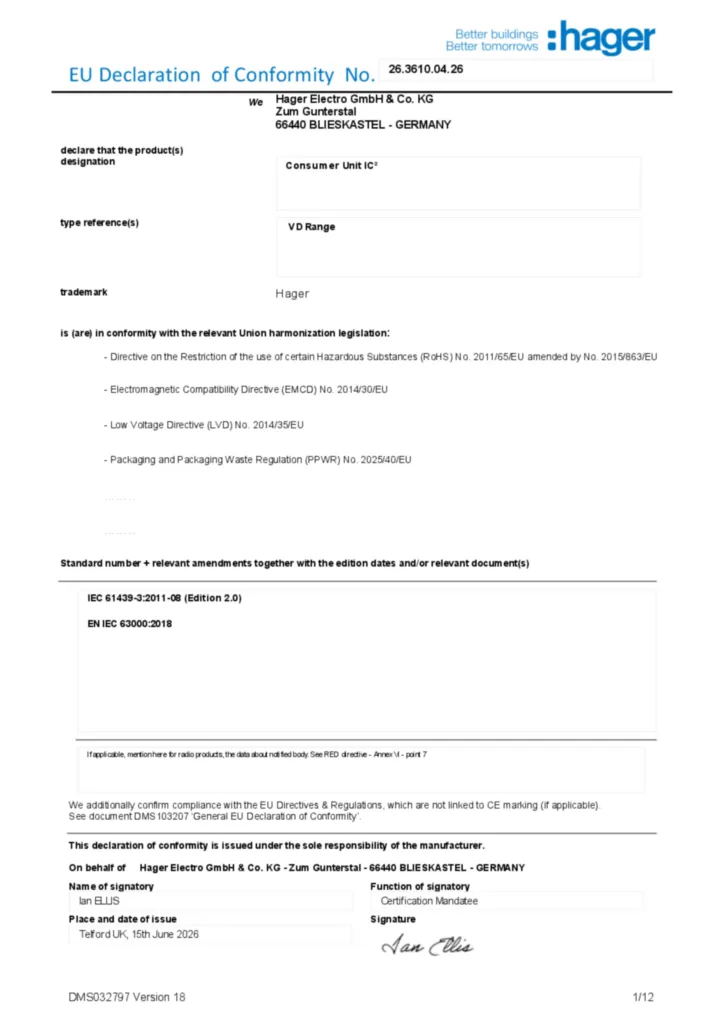

Declaration of conformity en-GB 2024-04-08
PDF205,55 kB
