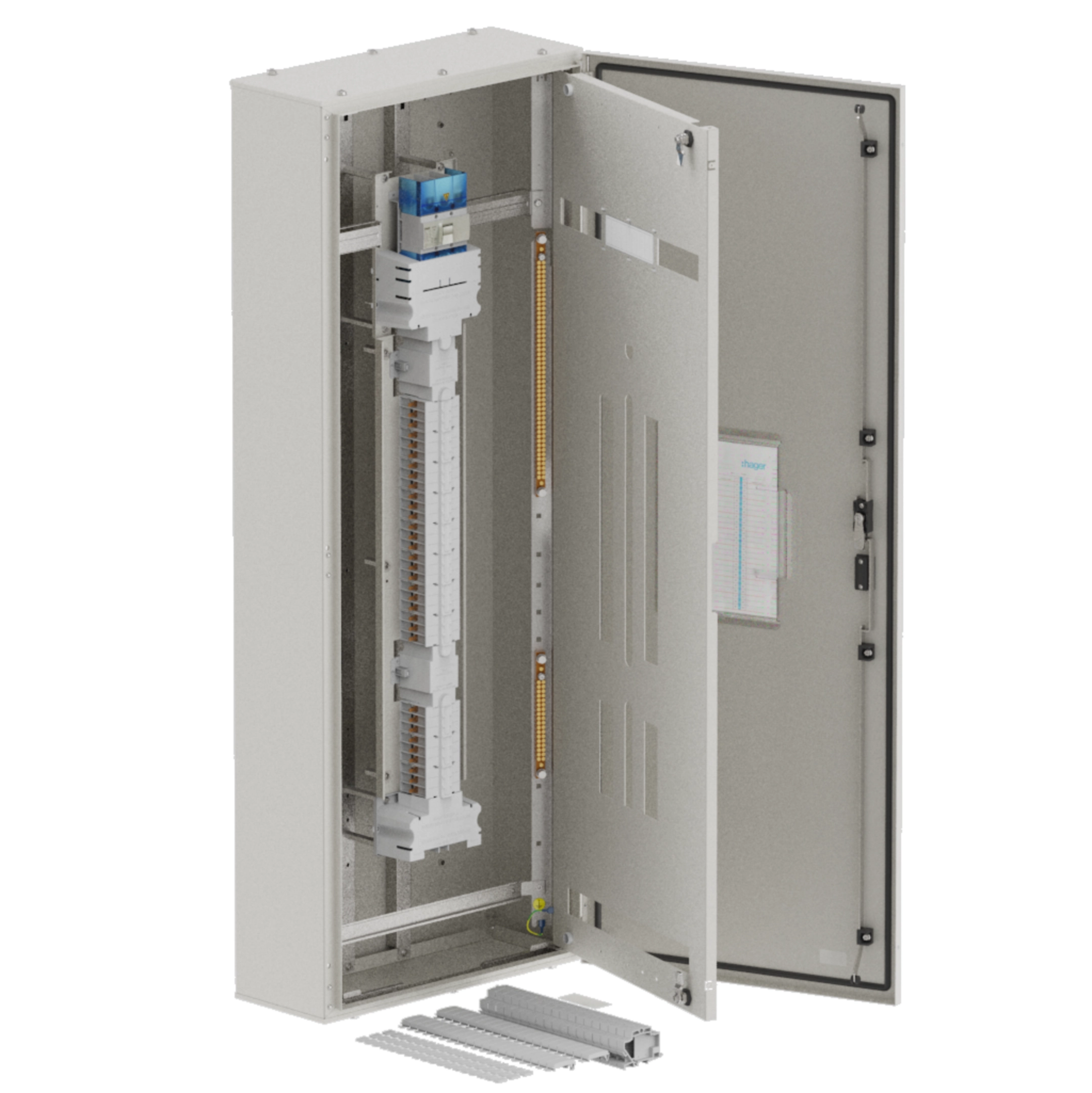

Hager The Hager Elite meter distribution board with twin 250A isolator delivers reliable main isolation and ample capacity for commercial/industrial sites. Surface‑mounted steel enclosure (1600×600×250 mm) with split chassis and integrated CTs provides 42 modules. IP66, IK05 and Class I insulation ensure durability, including outdoors. Secure 3‑point key‑lock door; RAL7035 light grey finish.
EAN
9329659018909
Packaging
1 Piece
DB Elite IP66 Surface 250A Split Chassis with CT 1600x600x250mm JPE4818S25DW-M
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Accessories/spare parts for low-voltage switch technology 16 products available -
Emergency lighting kit 2 products available -
Gland plate for enclosure 1 products available -
Document holder 1 products available -
Insert for lock system 1 products available
Complete your system
-
JVC0PFL
-
FL72Z
Cylinder insert for key lock, Orion.Plus
-
FL78Z1AU
Elite, Swing handel lock with padlock option + Insert key
-
JP012Pole filler, Consumer Unit, Single pole for Din rail ways
-
JPA0D250 -
JPA0D25KMain direct incomer link kit
-
JPA0EXTMPMounting Plate, APEX/ELITE, for extension box
-
JPA0M160 -
JPA0M16Kmain incomer 160A MCCB (X250) link kit
-
JPA0M200 -
JPA0M20Kmain incomer 200A MCCB (X250) link kit
-
JPA0S160 -
JPA0S16KPerforma 2 primary incoming link Kit
-
JPA0S250 -
JPA0S25Kmain incomer 250A switch link kit
-
JPA0S40K400A main switch kit (HA357 )
Technical properties
Connection
-
Number of accessible phases66
Installation, mounting
-
Mounting onSurface mounting
Electric current
-
Rated current250 A
Equipment
-
With lockYes
-
Has mounting plateNo
-
Equipped with switchIsolator
-
Number of switches1
-
Type of busbar chassisSplit chassis with CT integrated
Capacity
-
Number of modules42
Weight
-
Weight79 kg
Dimensions
-
Height1600 mm
-
Width600 mm
-
Depth250 mm
Cover, door
-
Door/cover is transparentNo
Materials
-
MaterialSteel
-
RAL code7035
-
ColourLight grey
Safety
-
Protection classIsolation class I
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP66
-
Locking type3-point lever, Key lock
Architecture
-
Number of poles66
