Australia

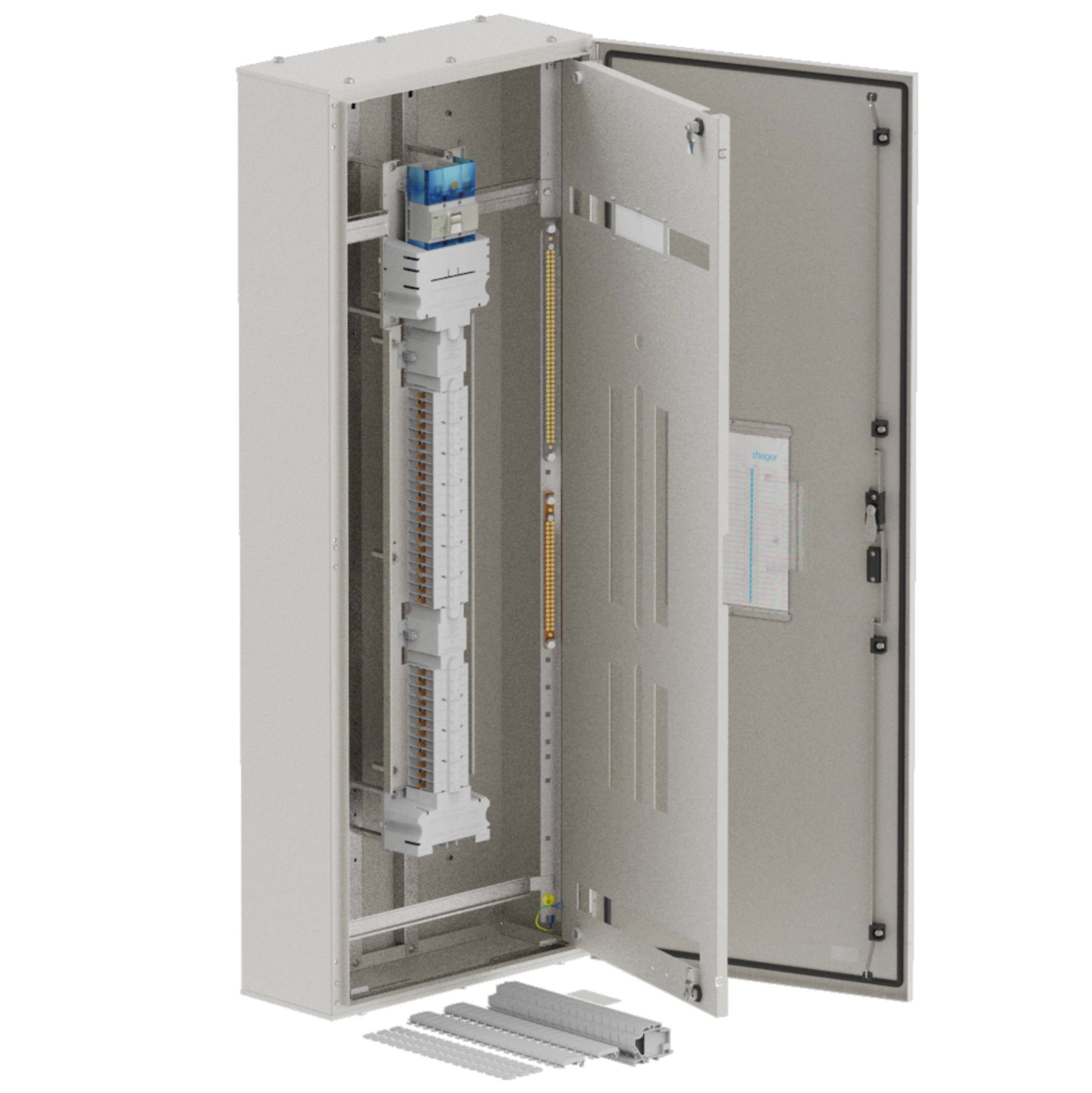

Hager The Hager Elite IP66 surface‑mount distribution board with split chassis and integrated CT delivers secure metered power distribution. Rated 250A and suited for twin‑isolator configurations, it offers 42‑module capacity in a robust RAL7035 steel enclosure (1600×600×250 mm). IK05 impact resistance and a 3‑point key lock enhance durability and security, ideal for commercial and industrial installations.
EAN
9329659018886
Packaging
1 Piece
Distribution board Elite IP66 250A Twin Isolator Metered 42M CT chassis JPE4224S25DW-M
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Accessories/spare parts for low-voltage switch technology 16 products available -
Emergency lighting kit 2 products available -
Gland plate for enclosure 1 products available -
Document holder 1 products available -
Insert for lock system 1 products available
Complete your system
-
JVC0PFL
-
FL72Z
Cylinder insert for key lock, Orion.Plus
-
FL78Z1AU
Elite, Swing handel lock with padlock option + Insert key
-
JP012Pole filler, Consumer Unit, Single pole for Din rail ways
-
JPA0D250 -
JPA0D25KMain direct incomer link kit
-
JPA0EXTMPMounting Plate, APEX/ELITE, for extension box
-
JPA0M160 -
JPA0M16Kmain incomer 160A MCCB (X250) link kit
-
JPA0M200 -
JPA0M20Kmain incomer 200A MCCB (X250) link kit
-
JPA0S160 -
JPA0S16KPerforma 2 primary incoming link Kit
-
JPA0S250 -
JPA0S25Kmain incomer 250A switch link kit
-
JPA0S40K400A main switch kit (HA357 )
Technical properties
Connection
-
Number of accessible phases66
Installation, mounting
-
Mounting onSurface mounting
Electric current
-
Rated current250 A
Equipment
-
With lockYes
-
Has mounting plateNo
-
Equipped with switchIsolator
-
Number of switches1
-
Type of busbar chassisSplit chassis with CT integrated
Capacity
-
Number of modules42
Weight
-
Weight68 kg
Dimensions
-
Height1600 mm
-
Width600 mm
-
Depth250 mm
Cover, door
-
Door/cover is transparentNo
Materials
-
MaterialSteel
-
RAL code7035
-
ColourLight grey
Safety
-
Protection classIsolation class I
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP66
-
Locking type3-point lever, Key lock
Architecture
-
Number of poles66
