Australia

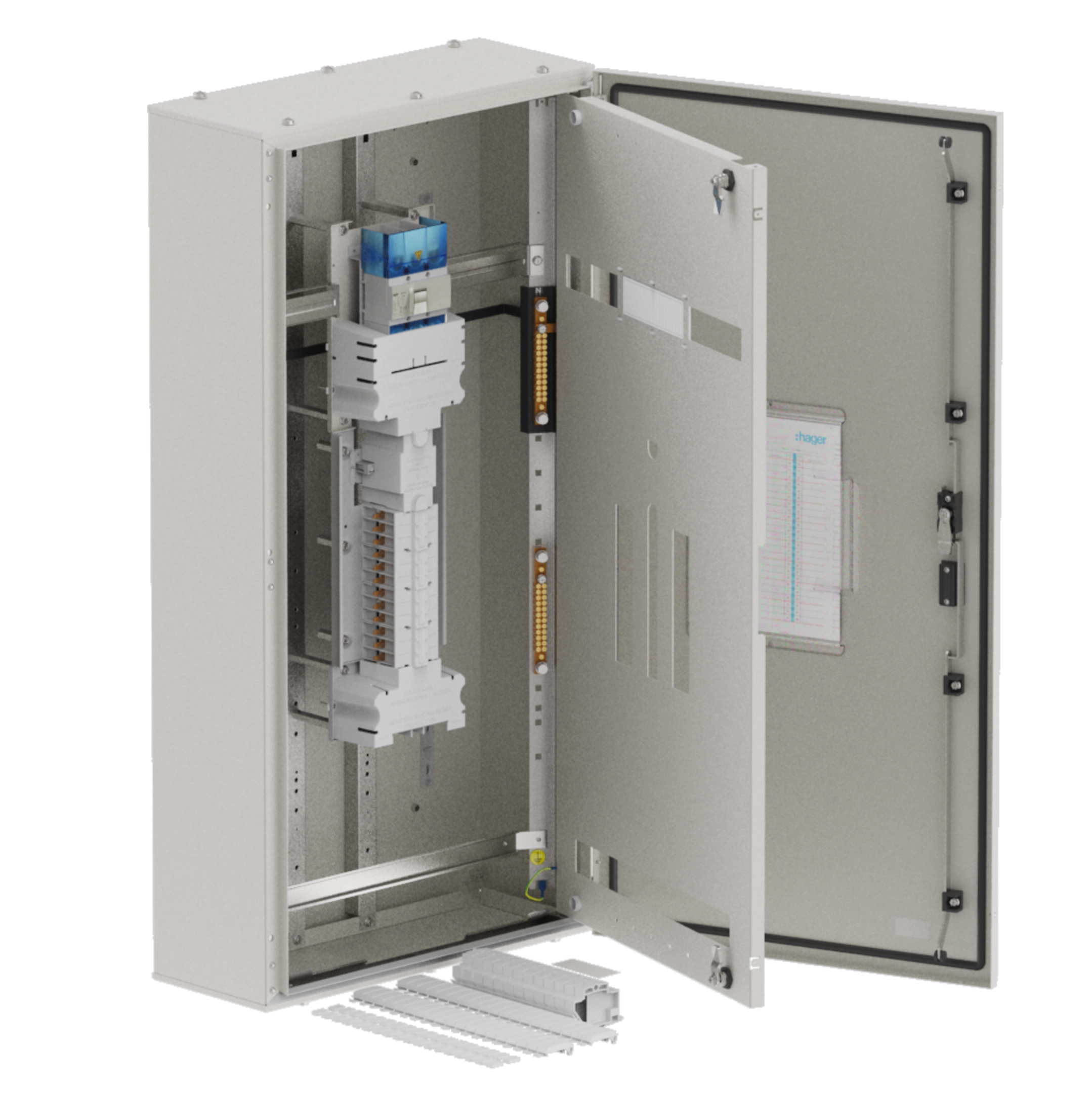

Hager DB elite 24‑pole meter enclosure with 250A isolator delivers reliable distribution and metering. Offers 42 modules (2x8 + 26), surface mounting, and a fixed load chassis with integrated CT for streamlined metering. Steel RAL7035 cabinet (1200x600x250 mm), IP66, IK05, Class I, with 3‑point key lock for security. Ideal for residential and commercial installations needing 250A isolation and generous module capacity.
EAN
9329659018817
Packaging
1 Piece
DB Elite 24-pole Meter Enclosure 250A Isolator IP66 42 Modules Surface JPE2400S25DW-M
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Accessories/spare parts for low-voltage switch technology 16 products available -
Emergency lighting kit 2 products available -
Gland plate for enclosure 1 products available -
Document holder 1 products available -
Insert for lock system 1 products available
Complete your system
-
JVC0PFL
-
FL72Z
Cylinder insert for key lock, Orion.Plus
-
FL78Z1AU
Elite, Swing handel lock with padlock option + Insert key
-
JP012Pole filler, Consumer Unit, Single pole for Din rail ways
-
JPA0D250 -
JPA0D25KMain direct incomer link kit
-
JPA0EXTMPMounting Plate, APEX/ELITE, for extension box
-
JPA0M160 -
JPA0M16Kmain incomer 160A MCCB (X250) link kit
-
JPA0M200 -
JPA0M20Kmain incomer 200A MCCB (X250) link kit
-
JPA0S160 -
JPA0S16KPerforma 2 primary incoming link Kit
-
JPA0S250 -
JPA0S25Kmain incomer 250A switch link kit
-
JPA0S40K400A main switch kit (HA357 )
Technical properties
Connection
-
Number of accessible phases24
Installation, mounting
-
Mounting onSurface mounting
Electric current
-
Rated current250 A
Equipment
-
With lockYes
-
Has mounting plateNo
-
Equipped with switchIsolator
-
Number of switches1
-
Type of busbar chassisFixed load chassis with CT integrated
Capacity
-
Number of modules42
Weight
-
Weight68 kg
Dimensions
-
Height1200 mm
-
Width600 mm
-
Depth250 mm
Cover, door
-
Door/cover is transparentNo
Materials
-
MaterialSteel
-
RAL code7035
-
ColourLight grey
Safety
-
Protection classIsolation class I
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP66
-
Locking type3-point lever, Key lock
Architecture
-
Number of poles24
