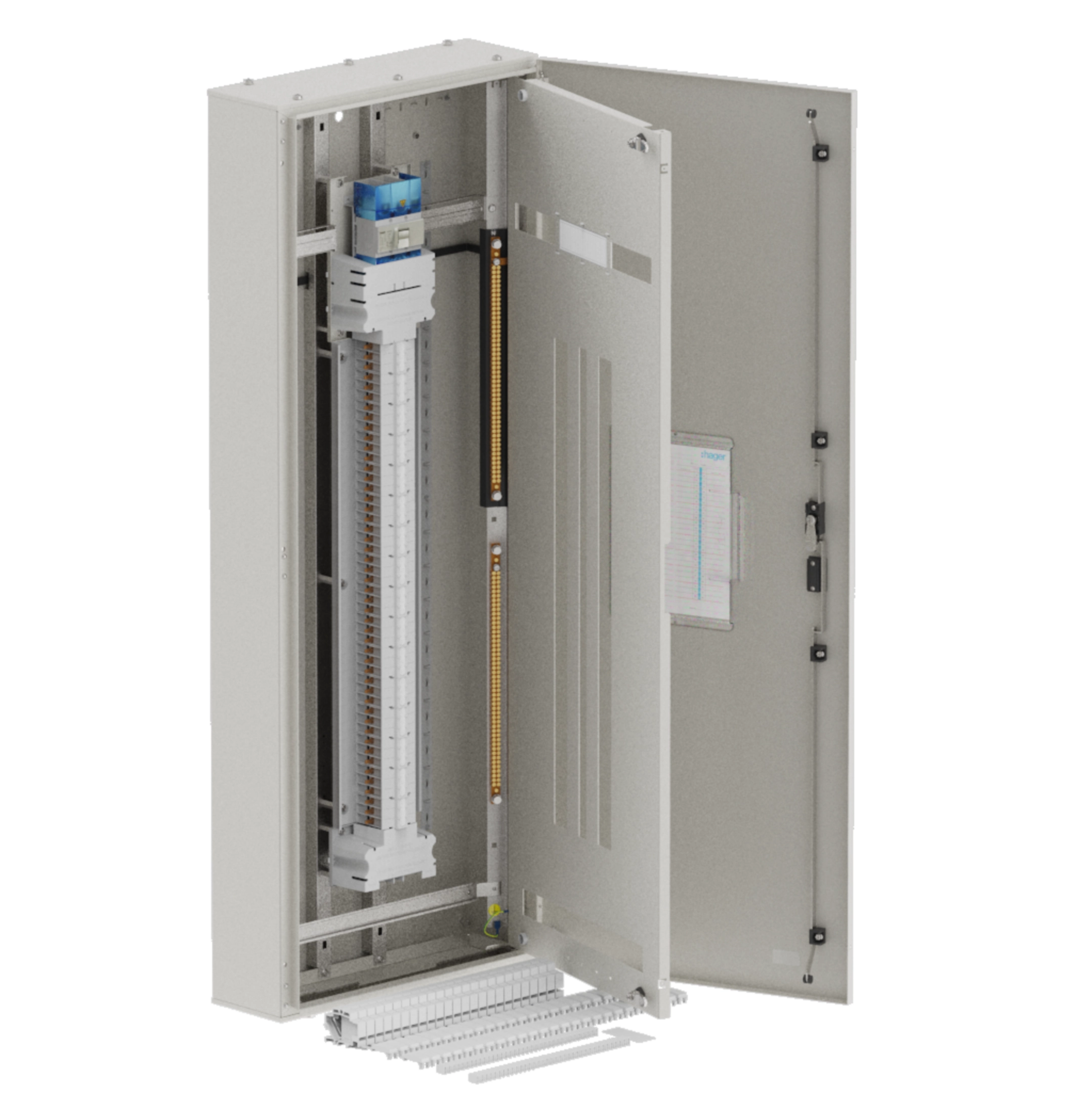

Hager The Hager apex+ DB, 96‑pole surface‑mounted enclosure delivers robust power distribution for commercial sites. Rated for 250 A incomer, it offers 42 modular spaces (2x8 + 26), fixed load chassis, and secure 3‑point key locking. Made of steel in RAL7035, it provides IP43 and IK05 protection. Opaque door, Class I insulation. Dimensions 1600×600×200 mm. Ideal for reliable, high‑capacity distribution with enhanced safety.
EAN
9329659003622
Packaging
1 Piece
Apex+ distribution board 250A isolator 96P IP43 IK05 1600x600x200mm JPD9600S25DW
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Power phase busbar 1 products available -
Accessories/spare parts for low-voltage switch technology 13 products available -
TPN/SPN boards 1 products available -
Common Accessories 1 products available
Complete your system
-
JVC0PFL
-
JP012Pole filler, Consumer Unit, Single pole for Din rail ways
-
JPA0D250 -
JPA0D25KMain direct incomer link kit
-
JPA0EXTMPMounting Plate, APEX/ELITE, for extension box
-
JPA0M160 -
JPA0M16Kmain incomer 160A MCCB (X250) link kit
-
JPA0M200 -
JPA0M20Kmain incomer 200A MCCB (X250) link kit
-
JPA0S160 -
JPA0S16KPerforma 2 primary incoming link Kit
-
JPA0S250 -
JPA0S25Kmain incomer 250A switch link kit
Technical properties
Connection
-
Number of accessible phases96
Installation, mounting
-
Mounting onSurface mounting
Electric current
-
Rated current250 A
Equipment
-
With lockYes
-
Has mounting plateNo
-
Equipped with switchIsolator
-
Number of switches1
-
Type of busbar chassisFixed load chassis
Capacity
-
Number of modules42
Weight
-
Weight70 kg
Dimensions
-
Height1600 mm
-
Width600 mm
-
Depth200 mm
Cover, door
-
Door/cover is transparentNo
Materials
-
MaterialSteel
-
RAL code7035
-
ColourLight grey
Safety
-
Protection classIsolation class I
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP43
-
Locking type3-point lever, Key lock
Architecture
-
Number of poles96
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet
Hager Product data sheet JPD9600S25DW
DB, apex+, 96Pole,250A Isolator 2x8 Mod+26 Mod, grey, 1600x600x200mm
