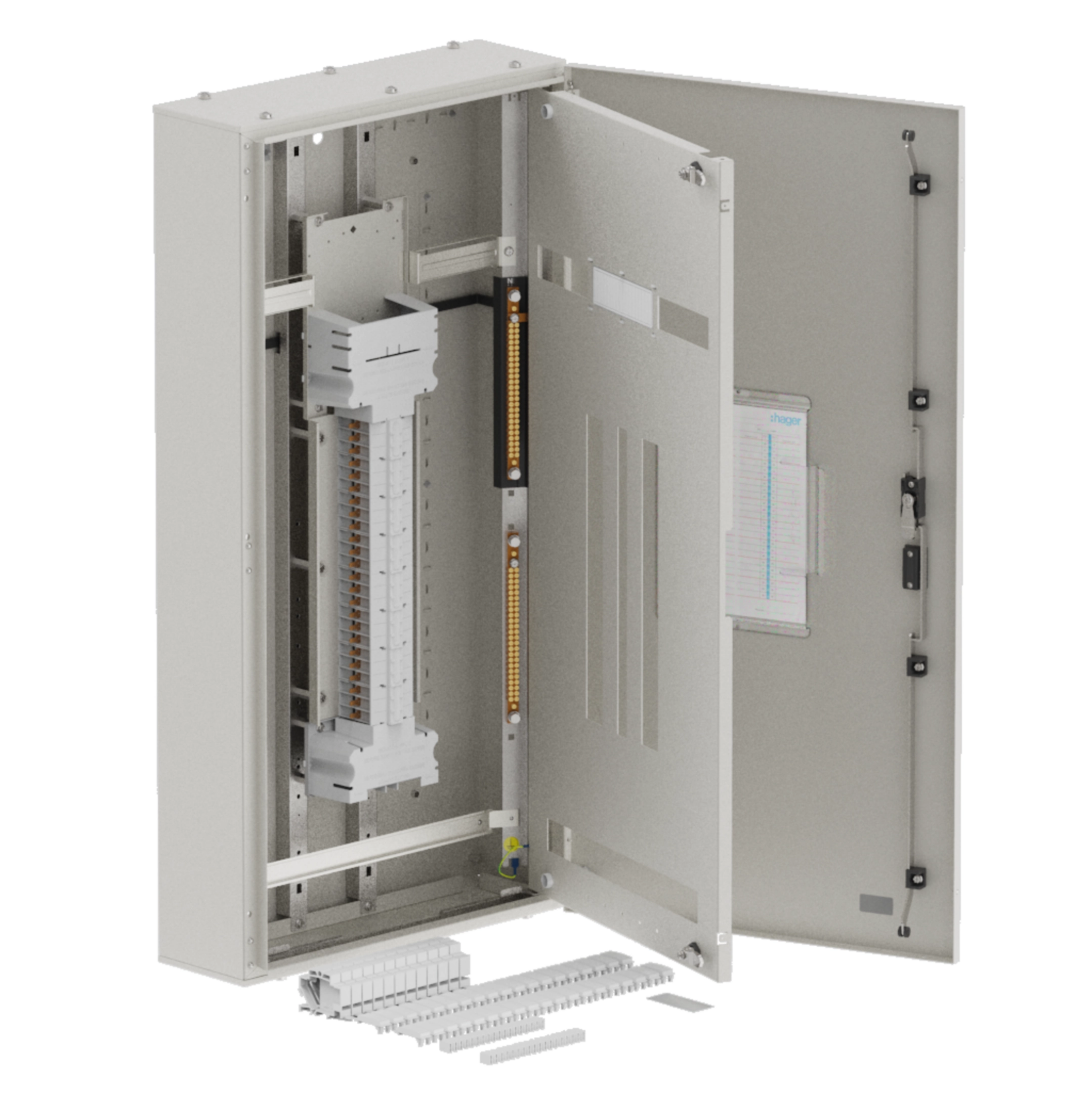

DB, apex+, 48Pole, 250A Direct Twin,8 Mod+26 Mod,grey,1200x600x200mm JPD4800NSSDW

EAN
9329659002885
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

DB, apex+, 48Pole, 250A Direct Twin,8 Mod+26 Mod,grey,1200x600x200mm

JPD4800NSSDW

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • Accessor­ies/s­pare parts for low-­voltage switch tech­no­logy 13 products available
  • Key for enclos­ures/cab­inets 1 products available
  • Power phase busbar 2 products available
  • TPN/SPN boards 1 products available
  • Common Accessories 1 products available

Complete your system

  • Accessor­ies/s­pare parts for low-­voltage switch tech­no­logy
  • Key for enclos­ures/cab­inets
  • Power phase busbar
  • TPN/SPN boards
  • Common Accessories
  • JVC0PFL

    EUR 0.00  / *
  • JP012

    Pole filler, Consumer Unit, Single pole for Din rail ways
    EUR 0.00  / *
  • JPA0D250

    EUR 0.00  / *
  • JPA0D25K

    Main direct incomer link kit
    EUR 0.00  / *
  • JPA0EXTMP

    Mounting Plate, APEX/ELITE, for extension box
    EUR 0.00  / *
  • JPA0M160

    EUR 0.00  / *
  • JPA0M16K

    main incomer 160A MCCB (X250) link kit
    EUR 0.00  / *
  • JPA0M200

    EUR 0.00  / *
  • JPA0M20K

    main incomer 200A MCCB (X250) link kit
    EUR 0.00  / *
  • JPA0S160

    EUR 0.00  / *
  • JPA0S16K

    Performa 2 primary incoming link Kit
    EUR 0.00  / *
  • JPA0S250

    EUR 0.00  / *
  • JPA0S25K

    main incomer 250A switch link kit
    EUR 0.00  / *
  • JVC0LSK

    EUR 0.00  / *
  • JPD4800C

    EUR 0.00  / *
  • JK4P16C1

    EUR 0.00  / *
  • JPA0EXT0W

    Extension Box, apex, blank, 400x600x200mm, grey
    EUR 0.00  / *
  • JPASMSEAL2

    EUR 0.00  / *

Technical properties

Connec­tion
  • Number of access­ible phases
    48
Install­a­tion, mounting
  • Mounting on
    Surface mounting
Elec­tric current
  • Rated current
    250 A
  • Breaking and opening capa­city Idm
    0
Equip­ment
  • With lock
    Yes
  • Has mounting plate
    No
  • Equipped with switch
    No switch
  • Number of switches
    0
  • Type of busbar chassis
    Fixed load chassis
Capa­city
  • Number of modules
    42
Dimen­sions
  • Height
    1200 mm
  • Width
    600 mm
  • Depth
    200 mm
Cover, door
  • Door/­cover is trans­parent
    No
Mater­ials
  • Material
    Steel
  • RAL code
    7035
  • Colour
    Light grey
Safety
  • Protec­tion class
    Isol­a­tion class I
  • Impact resist­ance IK
    IK05
  • Ingress Protec­tion (IP) class
    IP43
  • Locking type
    3-point lever, Key lock
Archi­tec­ture
  • Number of poles
    48

Environmental value

We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

Certifications and documents

125A 4 Way TPN Board c/w SD & SPD
PDF
17,17 MB
Hager REACH declaration JPD4800NSSDW
PDF

Downloads

  • Product image

    Image JPD4800NSSDW | Hager Australia

    Product Image JPD4800NSSDW

  • Product datasheet

    Image Hager Product data sheet JPD4800NSSDW | Hager Australia

    Hager Product data sheet JPD4800NSSDW

    DB, apex+, 48Pole, 250A Direct Twin,8 Mod+26 Mod,grey,1200x600x200mm

    PDF

  • Manual

    Image Manual en-GB 2024-03-12 | Hager Australia

    Manual en-GB 2024-03-12

    PDF
    16,41 MB

  • Brochure

    Image Brochure en-AU 2023-12-15 | Hager Australia

    Brochure en-AU 2023-12-15

    PDF
    11,47 MB
