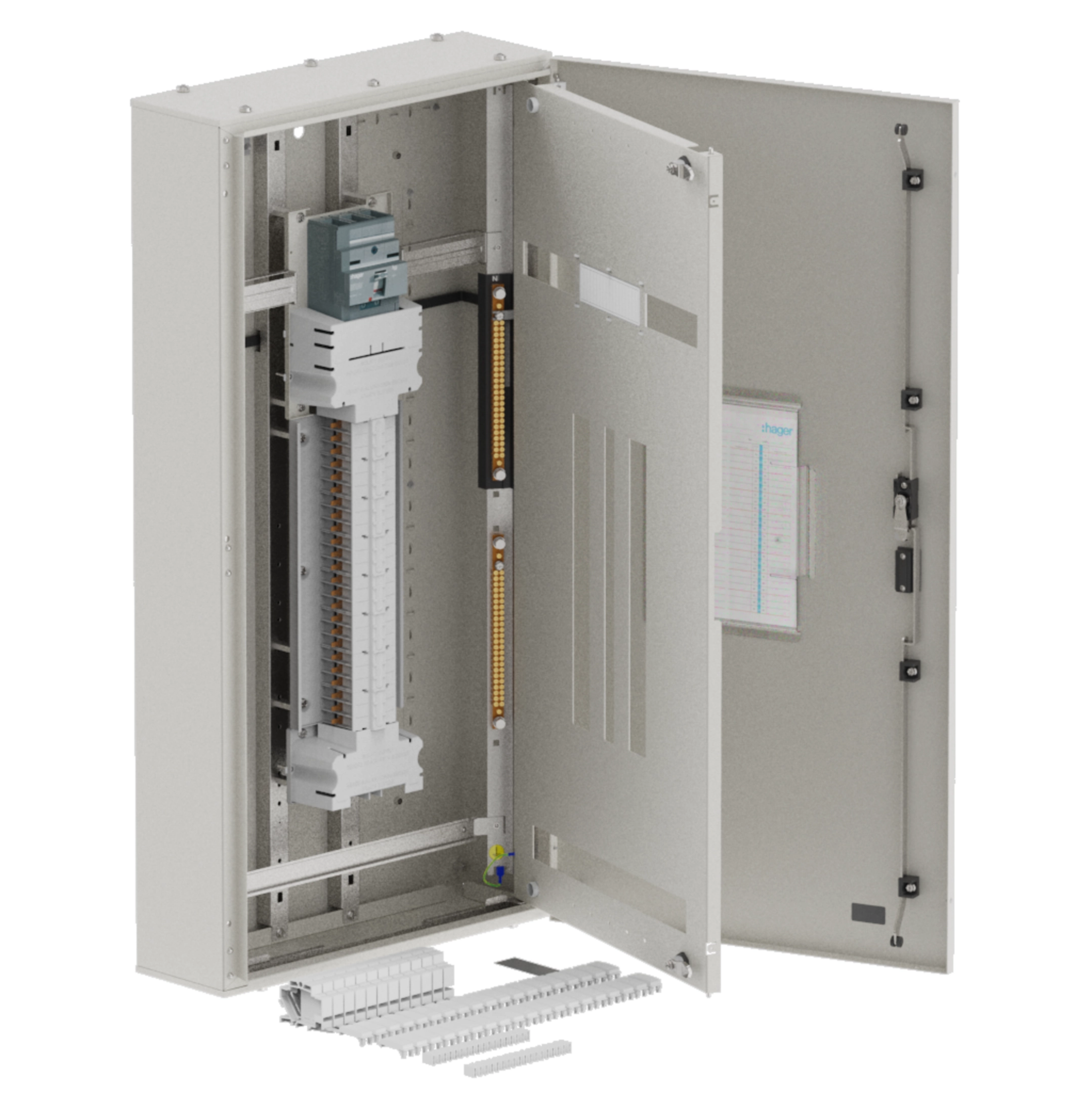

Hager The Hager apex+ DB, 48-pole, MCCB twin-incomer ready, 200A, is a robust surface-mounted distribution board for commercial and light industrial power distribution. Steel, RAL7035 light grey, 1200×600×200 mm, it offers 42 modules on a fixed load chassis. IP43 and IK05 ensure reliable protection; Class I insulation and a 3-point key lock enhance safety and security. Ideal for neat, scalable multi-circuit installations.
EAN
9329659002861
Packaging
1 Piece
Distribution board apex+ 48-pole 200A MCCB Twin IP43 IK05 1200x600x200 JPD4800M20DW
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Accessories/spare parts for low-voltage switch technology 13 products available -
Power phase busbar 2 products available -
TPN/SPN boards 1 products available -
Common Accessories 1 products available
Complete your system
-
JVC0PFL
-
JP012Pole filler, Consumer Unit, Single pole for Din rail ways
-
JPA0D250 -
JPA0D25KMain direct incomer link kit
-
JPA0EXTMPMounting Plate, APEX/ELITE, for extension box
-
JPA0M160 -
JPA0M16Kmain incomer 160A MCCB (X250) link kit
-
JPA0M200 -
JPA0M20Kmain incomer 200A MCCB (X250) link kit
-
JPA0S160 -
JPA0S16KPerforma 2 primary incoming link Kit
-
JPA0S250 -
JPA0S25Kmain incomer 250A switch link kit
Technical properties
Connection
-
Number of accessible phases48
Installation, mounting
-
Mounting onSurface mounting
Electric current
-
Rated current200 A
Equipment
-
With lockYes
-
Has mounting plateNo
-
Equipped with switchMCCB
-
Number of switches1
-
Type of busbar chassisFixed load chassis
Capacity
-
Number of modules42
Weight
-
Weight57 kg
Dimensions
-
Height1200 mm
-
Width600 mm
-
Depth200 mm
Cover, door
-
Door/cover is transparentNo
Materials
-
MaterialSteel
-
RAL code7035
-
ColourLight grey
Safety
-
Protection classIsolation class I
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP43
-
Locking type3-point lever, Key lock
Architecture
-
Number of poles48
