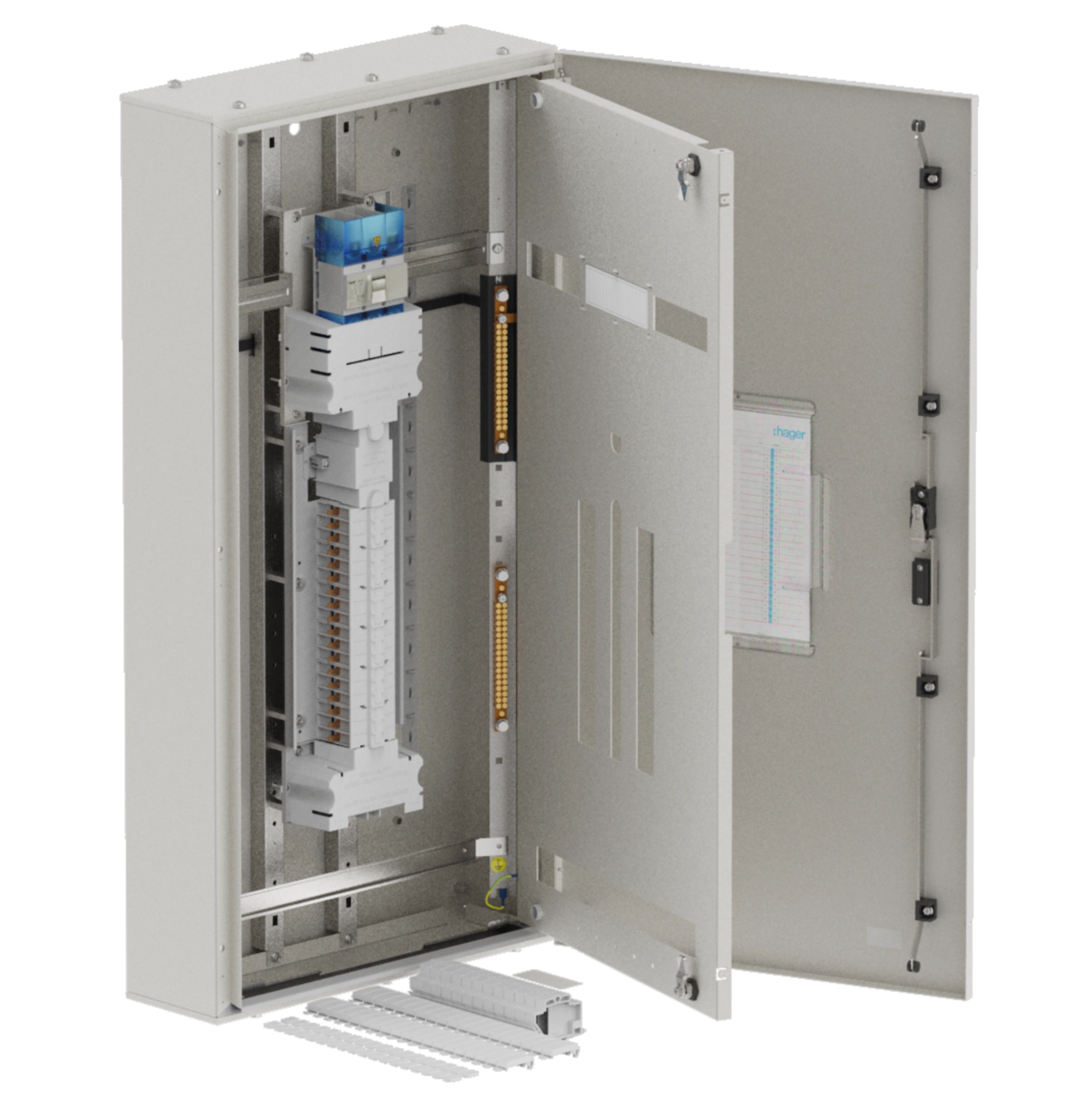

Hager The Hager Apex+ 36‑pole metered distribution board delivers reliable power distribution for commercial and industrial applications. Rated 250 A, it provides 42 modules (2x8M + 26M) on a fixed-load chassis with integrated CTs for accurate metering. Robust steel IP43 IK05 enclosure, 1200×600×200 mm, surface-mounted, light grey RAL7035. Opaque door with 3‑point lever lock for secure access.
EAN
9329659018671
Packaging
1 Piece
Apex+ DB 36-pole meter board 250A isolator CT chassis IP43 1200x600x200 JPD3600S25DW-M
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Power phase busbar 2 products available -
Accessories/spare parts for low-voltage switch technology 13 products available -
TPN/SPN boards 1 products available
Complete your system
-
JVC0PFL
-
JP012Pole filler, Consumer Unit, Single pole for Din rail ways
-
JPA0D250 -
JPA0D25KMain direct incomer link kit
-
JPA0EXTMPMounting Plate, APEX/ELITE, for extension box
-
JPA0M160 -
JPA0M16Kmain incomer 160A MCCB (X250) link kit
-
JPA0M200 -
JPA0M20Kmain incomer 200A MCCB (X250) link kit
-
JPA0S160 -
JPA0S16KPerforma 2 primary incoming link Kit
-
JPA0S250 -
JPA0S25Kmain incomer 250A switch link kit
Technical properties
Connection
-
Number of accessible phases36
Installation, mounting
-
Mounting onSurface mounting
Electric current
-
Rated current250 A
Equipment
-
With lockYes
-
Has mounting plateNo
-
Equipped with switchIsolator
-
Number of switches1
-
Type of busbar chassisFixed load chassis with CT integrated
Capacity
-
Number of modules42
Weight
-
Weight48 kg
Dimensions
-
Height1200 mm
-
Width600 mm
-
Depth200 mm
Cover, door
-
Door/cover is transparentNo
Materials
-
MaterialSteel
-
RAL code7035
-
ColourLight grey
Safety
-
Protection classIsolation class I
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP43
-
Locking type3-point lever
Architecture
-
Number of poles36
