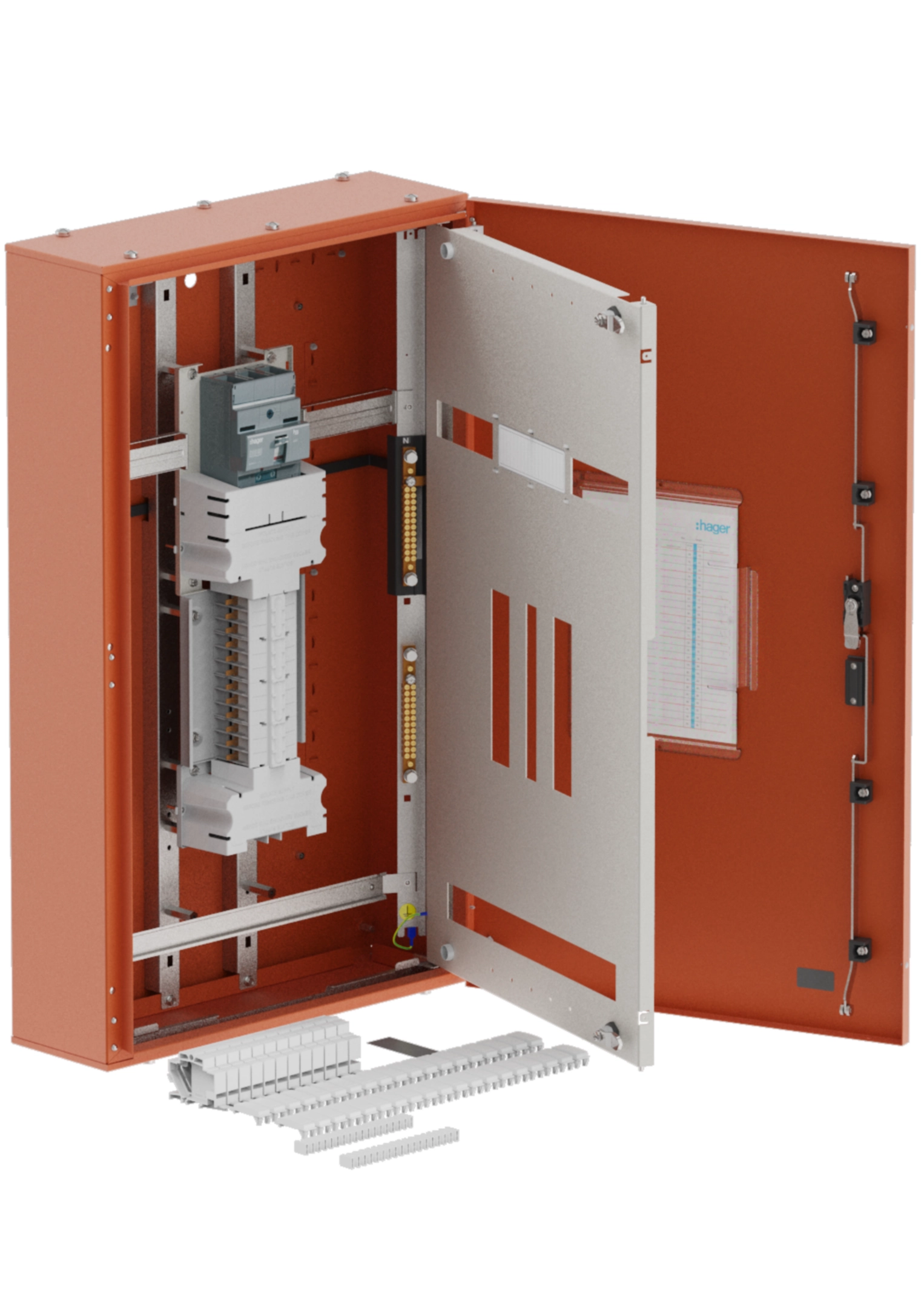

Hager apex+ 24‑pole distribution board, twin‑MCCB ready, delivers 200 A service for commercial/industrial distribution. Surface‑mounted steel enclosure 1000×600×200 mm with fixed‑load chassis provides 42 modules. IP43, IK05, Class I. Secure 3‑point key‑lock door; non‑transparent. Orange finish for easy identification. Ideal for organizing multiple circuits while saving panel space and ensuring robust, reliable performance.
EAN
9329659002076
Packaging
1 Piece
Apex+ Distribution Board 24P Twin 200A MCCB IP43 IK05 42M 1000x600x200 Orange JPD2400M20DX
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Power phase busbar 1 products available -
Accessories/spare parts for low-voltage switch technology 13 products available -
TPN/SPN boards 1 products available -
Common Accessories 1 products available
Complete your system
-
JVC0PFL
-
JP012Pole filler, Consumer Unit, Single pole for Din rail ways
-
JPA0D250 -
JPA0D25KMain direct incomer link kit
-
JPA0EXTMPMounting Plate, APEX/ELITE, for extension box
-
JPA0M160 -
JPA0M16Kmain incomer 160A MCCB (X250) link kit
-
JPA0M200 -
JPA0M20Kmain incomer 200A MCCB (X250) link kit
-
JPA0S160 -
JPA0S16KPerforma 2 primary incoming link Kit
-
JPA0S250 -
JPA0S25Kmain incomer 250A switch link kit
Technical properties
Connection
-
Number of accessible phases36
Installation, mounting
-
Mounting onSurface mounting
Electric current
-
Rated current200 A
Equipment
-
With lockYes
-
Has mounting plateNo
-
Equipped with switchMCCB
-
Number of switches1
-
Type of busbar chassisFixed load chassis
Capacity
-
Number of modules42
Weight
-
Weight42 kg
Dimensions
-
Height1000 mm
-
Width600 mm
-
Depth200 mm
Cover, door
-
Door/cover is transparentNo
Materials
-
MaterialSteel
-
ColourOrange
Safety
-
Protection classIsolation class I
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP43
-
Locking type3-point lever, Key lock
Architecture
-
Number of poles24
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

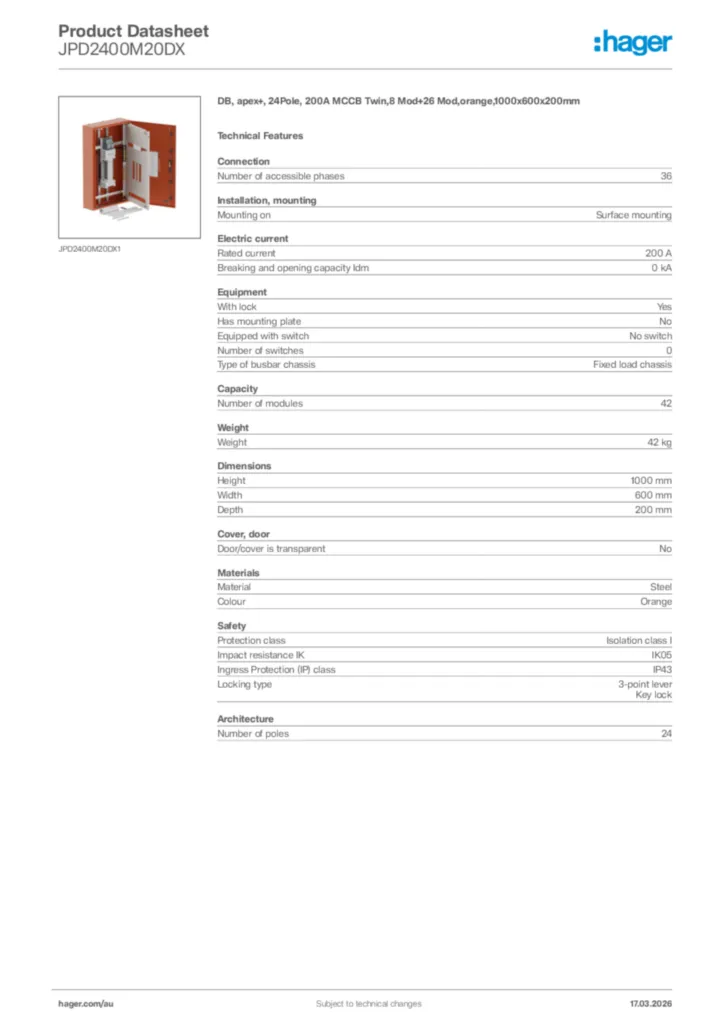

Hager Product data sheet JPD2400M20DX
DB, apex+, 24Pole, 200A MCCB Twin,8 Mod+26 Mod,orange,1000x600x200mm
PDF -
Manual
Manual en-GB 2024-03-12
PDF16,41 MB -
