    Hager The Hager IP66 63A 2P (1P+N) isolator provides safe on-load disconnection for single-phase circuits. Rated 63 A AC21/AC22/AC23A and 250 V, it handles resistive and moderately inductive loads. Weatherproof IP66 for outdoor/harsh sites, 50-60 Hz. Robust Ui 440 V, Icm/Icw 0.75 kA. Ideal as a main isolator for HVAC, lighting, or plant; accepts 10-16 mm² conductors.
    EAN
    3250617509718
    Packaging
    1 Piece
    • IP66 Isol­ators

    Isolator Switch 2P (1P+N) 63A IP66 250V AC21/22/23A JG263IN

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Isolator Switch 2P (1P+N) 63A IP66 250V AC21/22/23A

    JG263IN

    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Archi­tec­ture
    • Number of poles
      2
    • Type of pole
      1P+N
    Elec­tric current
    • Rated current
      63 A
    • Accept­able current rating AC21
      63 A
    • Accept­able current rating AC21 category A
      63 A
    • Rated short-­time with­stand current Icw IEC 60947
      0,75 kA
    • Accept­able current rating AC22 category A
      63 A
    • Rated short-­cir­cuit making capa­city Icm under 240 V AC according to IEC 60947-3
      0,75 kA
    • Accept­able current rating AC23 category A
      63 A
    • Rated short-­time with­stand current Icw t=1s 220 - 240 V AC according to IEC 60947 - 3
      0,75 kA
    Voltage
    • Rated oper­a­tional voltage Ue
      250 - 250 V
    • Rated insu­la­tion voltage Ui
      440 V
    Install­a­tion, mounting
    • Nominal tight­ening torque
      2,50 - 2,50 Nm
    Dimen­sions
    • Height
      170 mm
    • Width
      84 mm
    • Depth
      87 mm
    Power
    • Rated oper­a­tional power under 400 V AC AC23
      10200 W
    Safety
    • Ingress Protec­tion (IP) class
      IP66
    Use condi­tions
    • Oper­ating temper­ature
      -5 - 40 °C
    Connec­tion
    • Cross-sec­tion rigid conductor
      10 - 16 mm²
    Frequency
    • Frequency
      50 - 60 Hz

    Environmental value

    We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

    RoHS conform Yes

    Certifications and documents

    REACH declaration JG263IN
    PDF
    RoHS report JG263IN
    PDF

    Downloads

    • Product image

      Image JG263IN | Hager Australia

      Product Image JG263IN

    • Product datasheet

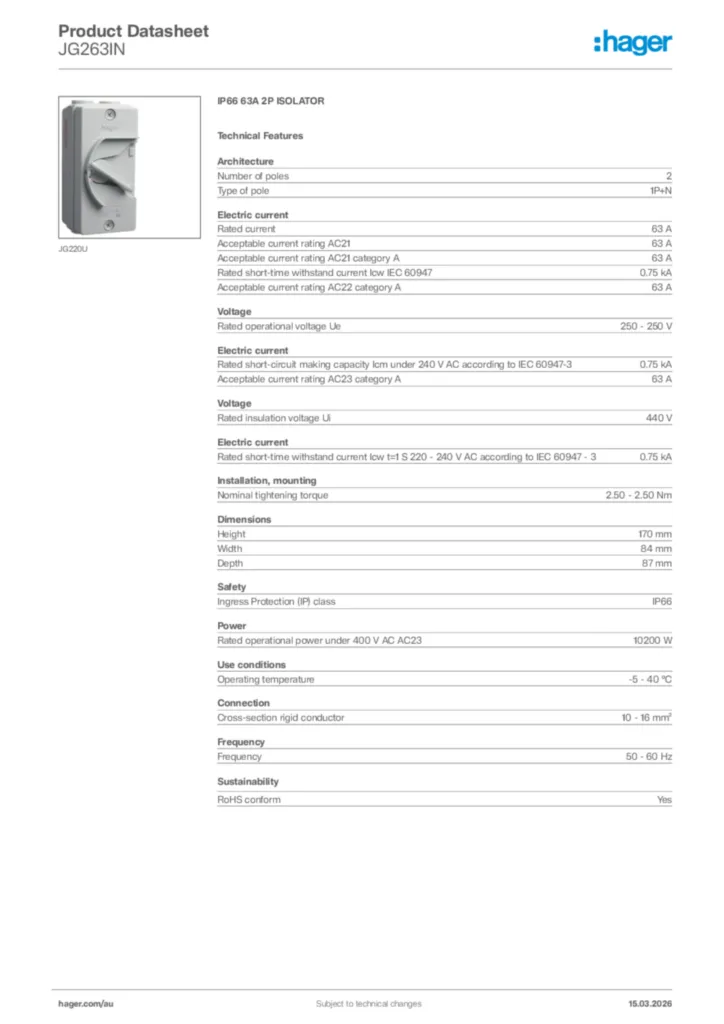

      Image Hager Product data sheet JG263IN | Hager Australia

      Hager Product data sheet JG263IN

      IP66 63A 2P ISOLATOR

      PDF

    • Installation manual

      Image User instructions for JGxxxIN | Hager Australia

      User instructions for JGxxxIN

      Installation manual International 2010-02-11

      PDF
      955,55 kB

    • Product data sheet

      Image JG Weatherproof Isolators Data Sheet | Hager Australia

      JG Weatherproof Isolators Data Sheet

      Product data sheet en-GB 2016-03-15

      PDF
      120,29 kB

    • Declaration of conformity

      Image Declaration | Hager Australia

      Declaration

      Declaration of conformity International 2021-08-25

      PDF
      492,64 kB
