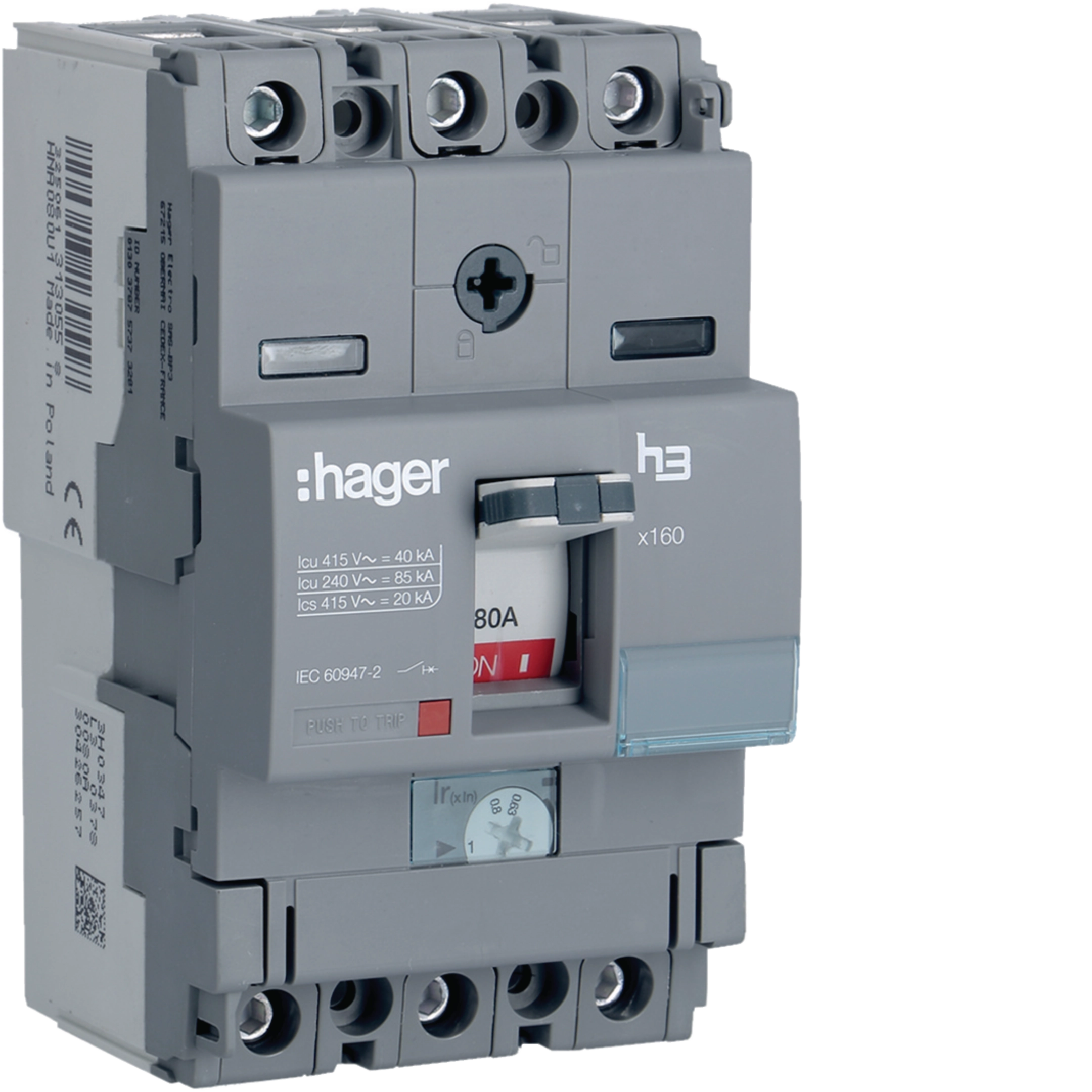

Moulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 80A 40kA CTC HNA080U

EAN
3250613130558
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Moulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 80A 40kA CTC

HNA080U

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • See more (20)
    • Connec­tion Func­tions 3 products available
    • Shunt release 4 products available
    • Auxil­i­aries contact block 4 products available
    • Handle for power circuit breaker 2 products available
    • Terminal cover 3 products available
    • Locking inter­locking func­tions 1 products available

    Complete your system

    • Connec­tion Func­tions
    • Shunt release
    • Auxil­i­aries contact block
    • Handle for power circuit breaker
    • Terminal cover
    • Locking inter­locking func­tions
    • Phase separ­a­tion func­tions
    • DIN rail adapter
    • Under voltage coil
    • HYA014H

      Spreader x160 3P collar
      EUR 0.00  / *
    • HYA013H

      Extended connection x160 4P collar
      EUR 0.00  / *
    • HYA005H

      Collar terminal x160 Al 3P
      EUR 0.00  / *
    • HXA005H

      Shunt trip 380-450V AC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HXA001H

      Shunt trip 24V DC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HXA004H

      Shunt trip 200-240V AC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HXA002H

      Shunt trip 48V DC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HXA025H

      Auxiliary low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HXA021H

      Auxiliary contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HXA024H

      Alarm contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HXA026H

      Alarm contact low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HXA031H

      Extended rotary handle x160
      EUR 0.00  / *
    • HXA030H

      Direct rotary handle x160
      EUR 0.00  / *
    • HYA027H

      Terminal cover for collar terminal x160 3P
      EUR 0.00  / *
    • HYA023H

      Terminal cover x160 3P spreader
      EUR 0.00  / *
    • HYA021H

      Terminal cover x160 3P long
      EUR 0.00  / *
    • HXA039H

      Padlock (x160-P160-x250-P250-x630)
      EUR 0.00  / *
    • HYA019H

      Interphase barrier x160 3/4P
      EUR 0.00  / *
    • HYA033H

      DIN Rail adaptator x160 3P/4P
      EUR 0.00  / *
    • HXA014H

      Undervoltage release 200-240V AC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *

    Technical properties

    Elec­tric current
    • Rated current
      80 A
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 400 V AC IEC 60947-2
      40 kA
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 240 V AC IEC 60947-2
      85 kA
    • Rated service breaking capa­city Ics under 230 V AC according to IEC 60947-2
      40 kA
    • Rated service breaking capa­city Ics under 400 V AC according to IEC 60947-2
      20 kA
    Archi­tec­ture
    • Number of poles
      3
    Frequency
    • Frequency
      50 - 60 Hz
    Voltage
    • Rated impulse with­stand voltage Uimp
      8000 V
    • Rated insu­la­tion voltage Ui
      690 V
    • Rated oper­a­tional voltage Ue
      220 - 415 V
    Func­tions
    • Trip unit
      TM A/F
    Power
    • Total power loss under IN
      32,10 W
    Endur­ance
    • Elec­tric endur­ance in number of cycles
      10000
    • Number of mech­an­ical oper­a­tions
      20000
    Safety
    • Ingress Protec­tion (IP) class
      IP4X
    Connec­tion
    • Cross-sec­tion flex­ible conductor
      4 - 70 mm²
    • Cross-sec­tion rigid conductor
      4 - 95 mm²
    Connectivity
    • Type of connec­tion
      Screw terminal
    Settings
    • Thermal protec­tion knob setting xIN
      0.63, 0.8, 1
    Dimen­sions
    • Height
      130 mm
    • Width
      75 mm
    • Depth
      68 mm

    Environmental value

    We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    MCCB h3+ P250 TM 4x250A 40kA
    PDF
    1,78 MB
    Hager REACH declaration HNA080U
    PDF
    RoHS report HNA080U
    PDF

    Downloads

    • Product image

      Image HNA080U | Hager Australia

      Product Image HNA080U

    • Product datasheet

      Image Hager Product data sheet HNA080U | Hager Australia

      Hager Product data sheet HNA080U

      Moulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 80A 40kA CTC

      PDF

    • Installation manual

      Image Installation manual International 2021-06-07 | Hager Australia

      Installation manual International 2021-06-07

      PDF
      8,51 MB

    • Declaration of conformity

      Image EU Declaration of Conformity | Hager Australia

      EU Declaration of Conformity

      Declaration of conformity en-GB 2025-03-20

      PDF
      430,96 kB
      Image UKCA Declaration of Conformity | Hager Australia

      UKCA Declaration of Conformity

      Declaration of conformity en-GB 2025-03-20

      PDF
      435,49 kB
