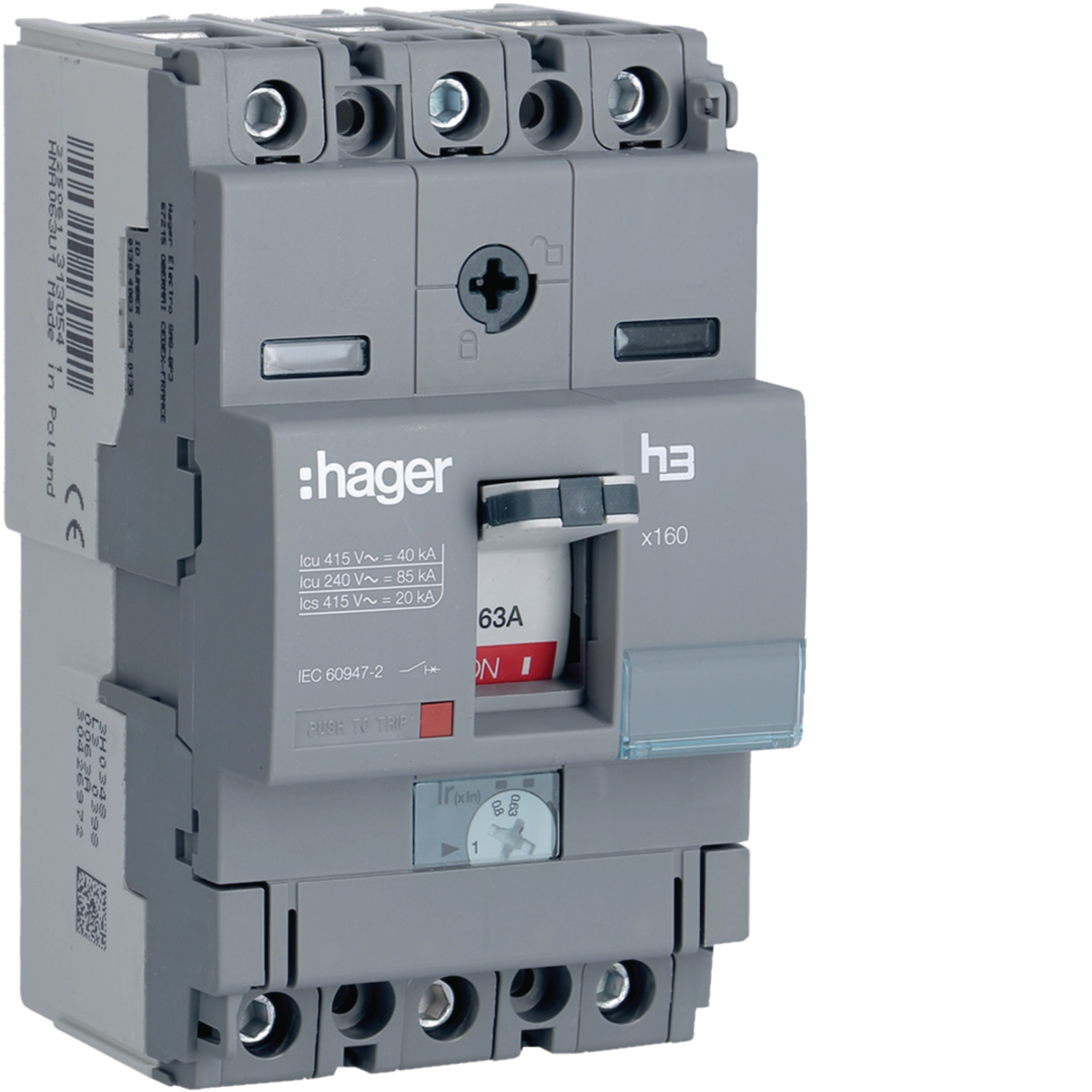

Moulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 63A 40kA CTC HNA063U
EAN
3250613130541
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Neutral positionwithout neutral
-
Number of protected poles3
-
Number of poles3 P
-
Type of pole3P3D
Functions
-
Trip UnitTM A/F
-
Integrated earth fault protectionNo
-
Concurrently switching N-neutralNo
Controls and indicators
-
Motor drive integratedNo
Main electrical features
-
Rated operational voltage Ue220 / 415 V
-
Frequency50/60 Hz
Voltage
-
Rated insulation voltage690 V
-
Rated impulse withstand voltage8 kV
-
With under voltage releaseNo
Electric current
-
Rated current63 A
-
Thermal protection nob setting xIN0.63 / 0.8 / 1
-
Rating current 10°C according to IEC 6094771.7 A
-
Rating current 15°C according to IEC 6094770.7 A
-
Rating current 20°C according to IEC 6094769.6 A
-
Rating current 25°C according to IEC 6094768.6 A
-
Rating current 30°C according to IEC 6094767.5 A
-
Rating current 35°C according to IEC 6094766.4 A
-
Rating current 40°C according to IEC 6094765.3 A
-
Rating current 45°C according to IEC 6094764.1 A
-
Rating current 50°C according to IEC 6094763 A
-
Rating current 55°C according to IEC 6094761.8 A
-
Rating current 60°C according to IEC 6094760.6 A
-
Rating current 65°C according to IEC 6094759.3 A
-
Rating current 70°C according to IEC 6094758.1 A
-
Rated ultimate short-circuit breaking capacity Icu under 230V AC IEC 60947-285 kA
-
Rated ultimate short-circuit breaking capacity Icu under 240V AC IEC 60947-285 kA
-
Rated ultimate short-circuit breaking capacity Icu under 400V AC IEC 60947-240 kA
-
Rated ultimate short-circuit breaking capacity Icu under 415V AC IEC 60947-240 kA
-
Range of the thermal adjustment40 / 50 / 63 A
-
Rated ultimate short-circuit breaking capacity Icu under 380V AC IEC 60947-240 kA
Dimensions
-
Depth of installed product68 mm
-
Height of installed product130 mm
-
Width of installed product75 mm
Frequency
-
Frequency50 to 60 Hz
Power
-
Power loss per pole at 0.63*In4 W
-
Power loss per pole at 0.8*In6.3 W
-
Total power loss at 0.63*In12.1 W
-
Total power loss at 0.8*In18.9 W
-
Total power loss under IN30 W
-
Power loss per pole at In10 W
Endurance
-
Electric endurance in number of cycles1000
-
Number of mechanical operations4000
Connection
-
Type of connectionwith screw
Settings
-
Range of the magnetic adjustment1000 A
Equipment
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as normally open contact0
-
Number of auxiliary contacts as change-over contact0
-
Can be accessorizedYes
Standards
-
Standard textIEC 60947-2
Safety
-
REACH conformYes
-
RoHS conformYes
-
Halogen freeNo
Use conditions
-
Degree of pollution according to IEC 60664 / IEC 60947-23
-
Altitude2000 m
temperatur
-
Temperature of calibration50 °C
