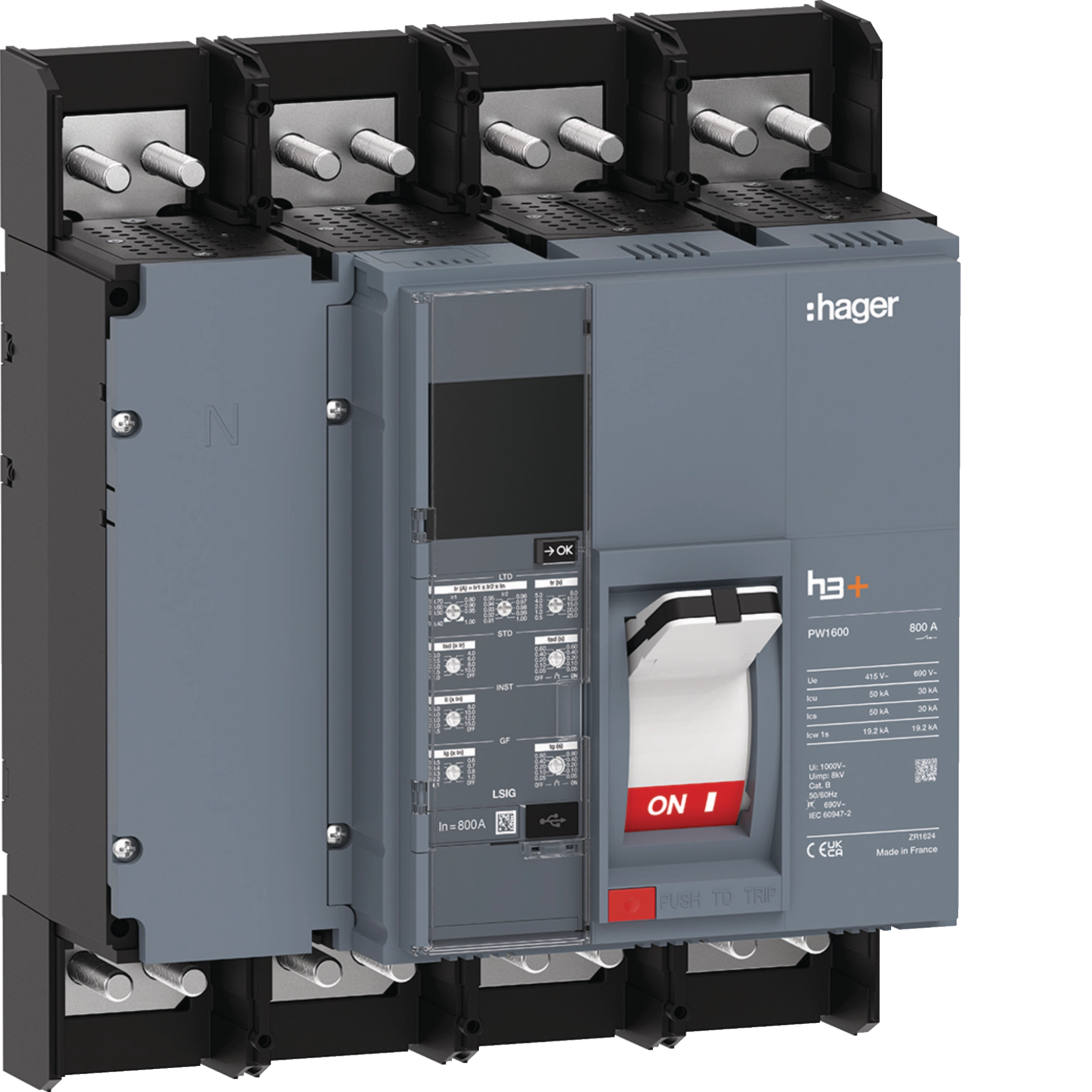

Moulded Case Circuit Breaker h3+ PW1600 LSIG 4P4D 800A 50kA FTC

HMQ801LR

  • Main Switchgear

Moulded Case Circuit Breaker h3+ PW1600 LSIG 4P4D 800A 50kA FTC HMQ801LR

EAN
3250613251208
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products

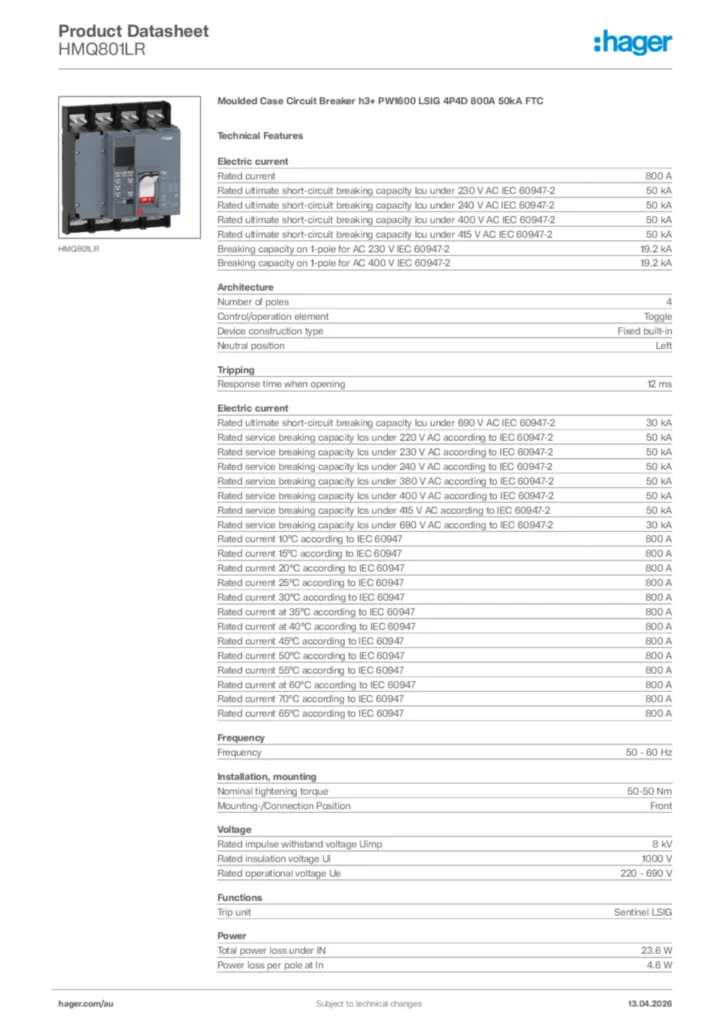

Download the data sheet

Complete your system

Optional accessories

  • Connec­tion Func­tions 3 products available
  • Under voltage time controller 4 products available
  • Locking inter­locking func­tions 1 products available
  • Auxil­i­aries contact block 2 products available
  • Handle for power circuit breaker 1 products available
  • See more 8 other products available

Complete your system

  • Connec­tion Func­tions
  • Under voltage time controller
  • Locking inter­locking func­tions
  • Auxil­i­aries contact block
  • Handle for power circuit breaker
  • Auxil­i­aries switch posi­tion
  • Mech­anic accessories for low-­voltage compon­ents
  • Elec­trical accessories for low-­voltage compon­ents
  • Terminal cover
  • HWY001H

    Spreaders 3P HW1 (SP)
    EUR 0.00  / *
    Add to a list
    Add to a list
  • HWY002H

    Spreaders 4P HW1 (SP)
    EUR 0.00  / *
    Add to a list
    Add to a list
  • HWY049H

    Terminal Connection Rear - top/bottom - HW1 4 Pole (RC)
    EUR 0.00  / *
    Add to a list
    Add to a list
  • HWY030H

    UV time delay controller 24-30V AC/DC (UVTC)
    EUR 0.00  / *
    Add to a list
    Add to a list
  • HWY031H

    UV time delay controller 48-60V AC/DC (UVTC)
    EUR 0.00  / *
    Add to a list
    Add to a list
  • HWY033H

    UV time delay controller 200-250V AC (UVTC)
    EUR 0.00  / *
    Add to a list
    Add to a list
  • HWY034H

    UV time delay controller 380-480V AC (UVTC)
    EUR 0.00  / *
    Add to a list
    Add to a list
  • HXA039H

    Padlock (x160-P160-x250-P250-x630)
    EUR 0.00  / *
    Add to a list
    Add to a list
  • HXH027H

    Auxiliary Switch for AX/AL/FS/AXO/AXC STATUS
    EUR 0.00  / *
    Add to a list
    Add to a list
  • HXH028H

    Auxiliary Switch low-level for AX/AL/FS/AXO/AXC STATUS
    EUR 0.00  / *
    Add to a list
    Add to a list
  • HXH036H

    Rotary handle sentinel
    EUR 0.00  / *
    Add to a list
    Add to a list
  • HXH090H

    OAC for h3+ PW1600
    EUR 0.00  / *
    Add to a list
    Add to a list
  • HXH888H

    Ronis kit adaptor for MCCB
    EUR 0.00  / *
    Add to a list
    Add to a list
  • HYH041H

    Terminal connection FC - top/bottom 4P PW1600
    EUR 0.00  / *
    Add to a list
    Add to a list
  • HYH500H

    MCCB PW1600 MOUNTING SCREWS
    EUR 0.00  / *
    Add to a list
    Add to a list
  • HYH502H

    MCCB PW1600 MOUNTING NUTS & WASHERS 4P
    EUR 0.00  / *
    Add to a list
    Add to a list
  • HXH957H

    Terminal block MCCB PW1600 Energy
    EUR 0.00  / *
    Add to a list
    Add to a list
  • HYH957H

    TERMINAL BLOCK MCCB PW1600 sentinel & sentinel Energy SPARE version
    EUR 0.00  / *
    Add to a list
    Add to a list
  • HYH022H

    Terminal cover 4P PW1600
    EUR 0.00  / *
    Add to a list
    Add to a list

Technical properties

Elec­tric current
  • Rated current
    800 A
  • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 230 V AC IEC 60947-2
    50 kA
  • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 240 V AC IEC 60947-2
    50 kA
  • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 400 V AC IEC 60947-2
    50 kA
  • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 415 V AC IEC 60947-2
    50 kA
  • Breaking capa­city on 1-pole for AC 230 V IEC 60947-2
    19,2 kA
  • Breaking capa­city on 1-pole for AC 400 V IEC 60947-2
    19,2 kA
  • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 690 V AC IEC 60947-2
    30 kA
  • Rated service breaking capa­city Ics under 220 V AC according to IEC 60947-2
    50 kA
  • Rated service breaking capa­city Ics under 230 V AC according to IEC 60947-2
    50 kA
  • Rated service breaking capa­city Ics under 240 V AC according to IEC 60947-2
    50 kA
  • Rated service breaking capa­city Ics under 380 V AC according to IEC 60947-2
    50 kA
  • Rated service breaking capa­city Ics under 400 V AC according to IEC 60947-2
    50 kA
  • Rated service breaking capa­city Ics under 415 V AC according to IEC 60947-2
    50 kA
  • Rated service breaking capa­city Ics under 690 V AC according to IEC 60947-2
    30 kA
  • Rated current 10°C according to IEC 60947
    800 A
  • Rated current 15°C according to IEC 60947
    800 A
  • Rated current 20°C according to IEC 60947
    800 A
  • Rated current 25°C according to IEC 60947
    800 A
  • Rated current 30°C according to IEC 60947
    800 A
  • Rated current at 35°C according to IEC 60947
    800 A
  • Rated current at 40°C according to IEC 60947
    800 A
  • Rated current 45°C according to IEC 60947
    800 A
  • Rated current 50°C according to IEC 60947
    800 A
  • Rated current 55°C according to IEC 60947
    800 A
  • Rated current at 60°C according to IEC 60947
    800 A
  • Rated current 70°C according to IEC 60947
    800 A
  • Rated current 65°C according to IEC 60947
    800 A
Archi­tec­ture
  • Number of poles
    4
  • Control/­op­er­a­tion element
    Toggle
  • Device construc­tion type
    Fixed built-in
  • Neutral posi­tion
    Left
Trip­ping
  • Response time when opening
    12 ms
Frequency
  • Frequency
    50 - 60 Hz
Install­a­tion, mounting
  • Nominal tight­ening torque
    50-50 Nm
  • Mount­ing-/­Con­nec­tion Posi­tion
    Front
Voltage
  • Rated impulse with­stand voltage Uimp
    8 kV
  • Rated insu­la­tion voltage Ui
    1000 V
  • Rated oper­a­tional voltage Ue
    220 - 690 V
Func­tions
  • Trip unit
    Sentinel LSIG
Power
  • Total power loss under IN
    23,6 W
  • Power loss per pole at In
    4,6 W
Endur­ance
  • Elec­tric endur­ance in number of cycles
    4000
  • Number of mech­an­ical oper­a­tions
    20000
Equip­ment
  • Number of auxil­iary contacts as change-over contact
    0
  • Number of auxil­iary contacts as normally closed contact
    0
  • Number of auxil­iary contacts as normally open contact
    0
Safety
  • Ingress Protec­tion (IP) class
    IP20
Use condi­tions
  • Oper­ating temper­ature
    -25-70 °C
  • Degree of pollu­tion according to IEC 60664 / IEC 60947-2
    3
Cover, door
  • Inter­lock­able
    Yes
Cable
  • Cable material
    Copper, Aluminium
Dimen­sions
  • Height
    330 mm
  • Depth
    198 mm
Controls and indic­ators
  • Motor drive integ­rated
    No
Compat­ib­ility
  • Suit­able for DIN Rail
    No
  • Compat­ible with RDC AOB
    No
Power supply
  • Posi­tion power supply
    Bidirec­tional
Elec­trical protec­tion
  • Long-­time over­load protec­tion (ltd): delay (tr)
    0.5 s, 1 s, 2 s, 4 s, 5 s, 8 s, 10 s, 15 s, 20 s, 25 s
  • Short-­time protec­tion (std): delay (tsd)
    50 ms, 100 ms, 200 ms, 400 ms, 600 ms
  • Instant­an­eous protec­tion (li): dial setting coef­fi­cient
    1.5, 2, 3, 4, 6, 8, 10, 12, 15
