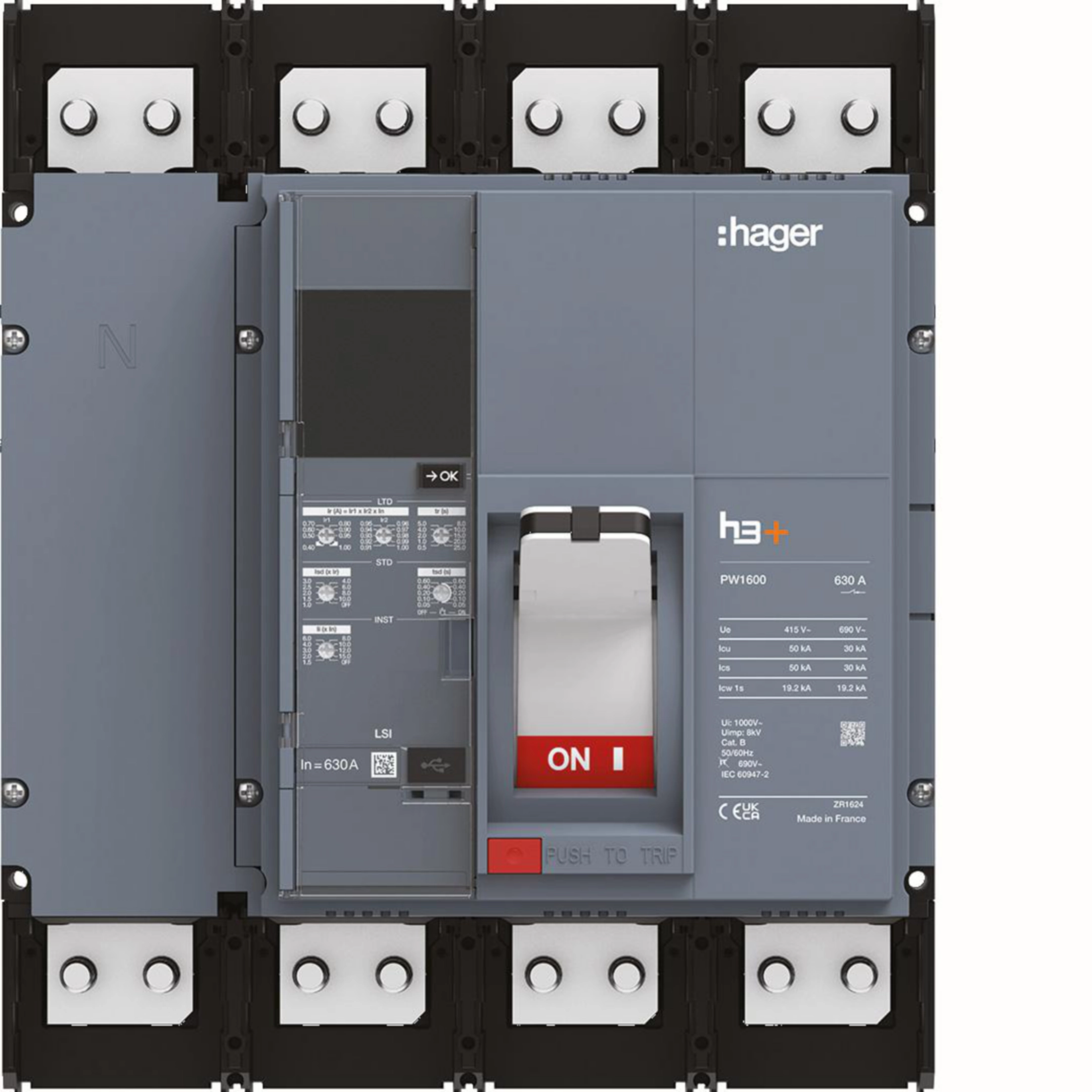

Moulded Case Circuit Breaker h3+ PW1600 LSI 4P4D 630A 50kA FTC HMQ631JR
EAN
3250613251093
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-

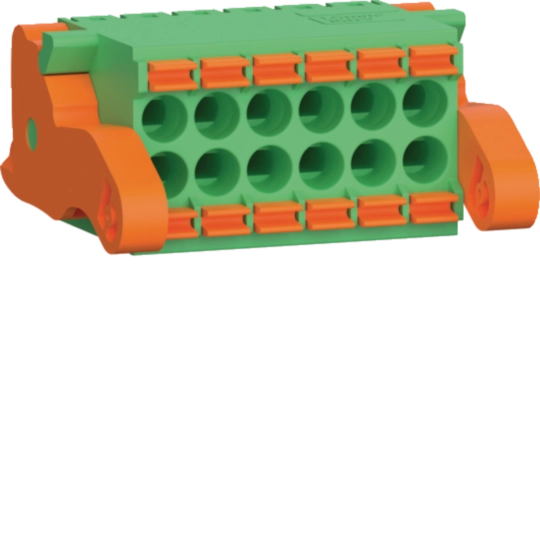

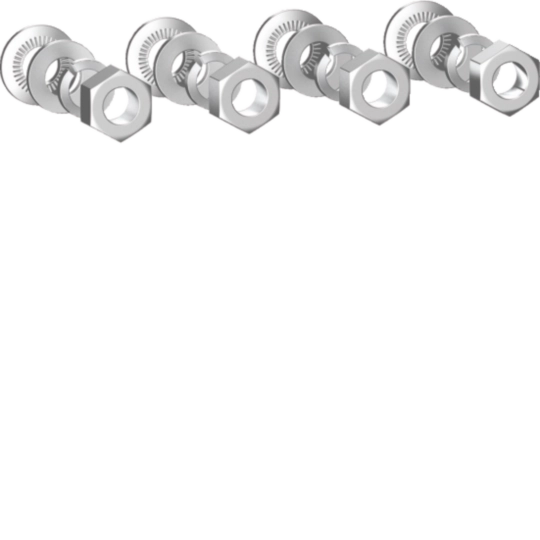

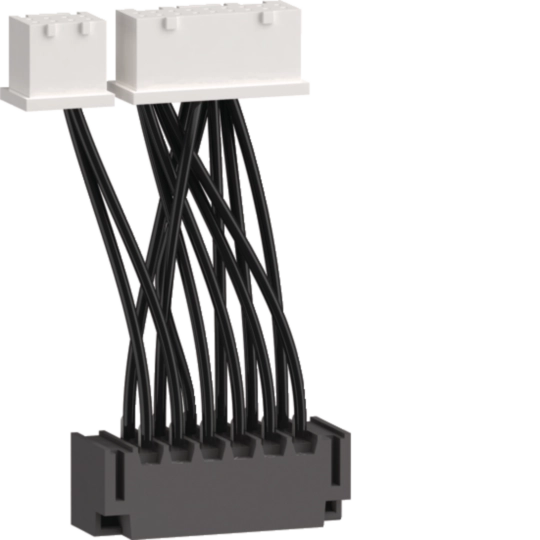

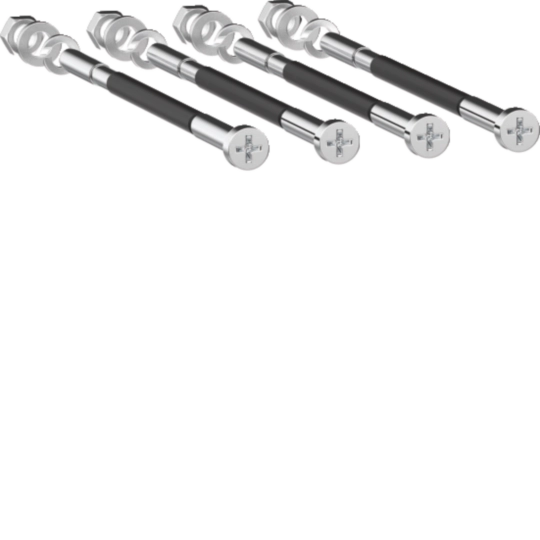

Connection Functions 3 products available -

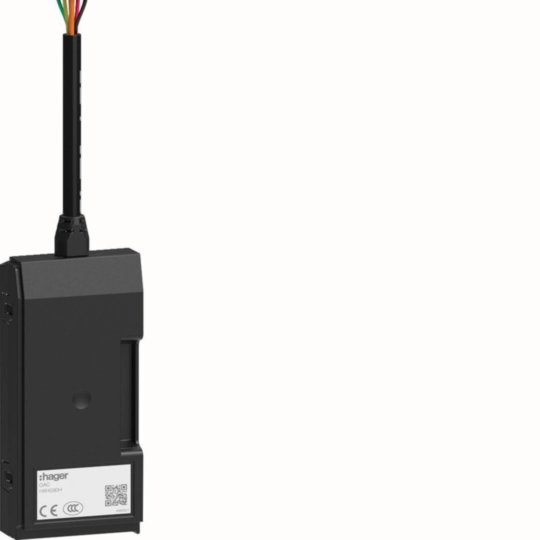

Under voltage time controller 4 products available -
Locking interlocking functions 1 products available -

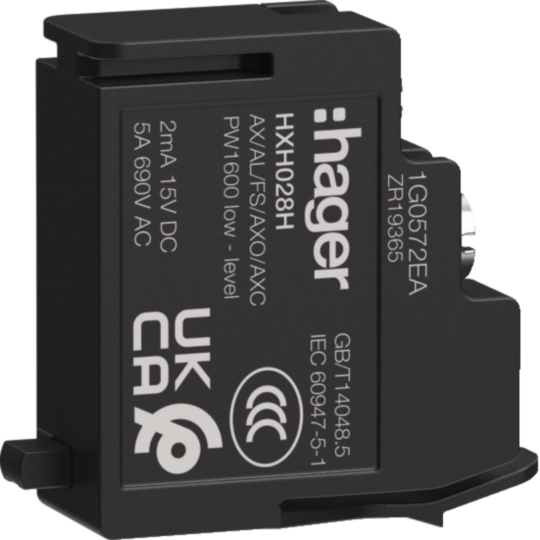

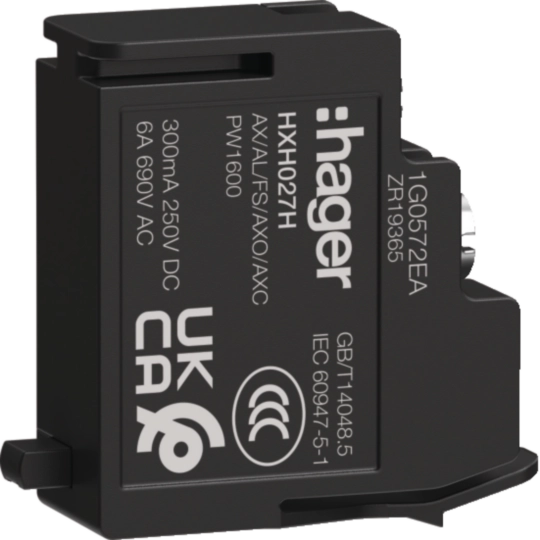

Auxiliaries contact block 2 products available -
Handle for power circuit breaker 1 products available -
See more 8 other products available
Complete your system
Technical properties
Electric current
-
Rated current630 A
-
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-250 kA
-
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-250 kA
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-250 kA
-
Rated ultimate short-circuit breaking capacity Icu under 415 V AC IEC 60947-250 kA
-
Breaking capacity on 1-pole for AC 230 V IEC 60947-219,2 kA
-
Breaking capacity on 1-pole for AC 400 V IEC 60947-219,2 kA
-
Rated ultimate short-circuit breaking capacity Icu under 690 V AC IEC 60947-230 kA
-
Rated service breaking capacity Ics under 220 V AC according to IEC 60947-250 kA
-
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-250 kA
-
Rated service breaking capacity Ics under 240 V AC according to IEC 60947-250 kA
-
Rated service breaking capacity Ics under 380 V AC according to IEC 60947-250 kA
-
Rated service breaking capacity Ics under 400 V AC according to IEC 60947-250 kA
-
Rated service breaking capacity Ics under 415 V AC according to IEC 60947-250 kA
-
Rated service breaking capacity Ics under 690 V AC according to IEC 60947-230 kA
-
Rated current 10°C according to IEC 60947630 A
-
Rated current 15°C according to IEC 60947630 A
-
Rated current 20°C according to IEC 60947630 A
-
Rated current 25°C according to IEC 60947630 A
-
Rated current 30°C according to IEC 60947630 A
-
Rated current at 35°C according to IEC 60947630 A
-
Rated current at 40°C according to IEC 60947630 A
-
Rated current 45°C according to IEC 60947630 A
-
Rated current 50°C according to IEC 60947630 A
-
Rated current 55°C according to IEC 60947630 A
-
Rated current at 60°C according to IEC 60947630 A
-
Rated current 70°C according to IEC 60947630 A
-
Rated current 65°C according to IEC 60947630 A
Architecture
-
Number of poles4
-
Control/operation elementToggle
-
Device construction typeFixed built-in
-
Neutral positionLeft
Tripping
-
Response time when opening12 ms
Frequency
-
Frequency50 - 60 Hz
Installation, mounting
-
Nominal tightening torque50-50 Nm
-
Mounting-/Connection PositionFront
Voltage
-
Rated impulse withstand voltage Uimp8 kV
-
Rated insulation voltage Ui1000 V
-
Rated operational voltage Ue220 - 690 V
Functions
-
Trip unitSentinel LSI
Power
-
Total power loss under IN13,4 W
-
Power loss per pole at In1,8 W
Endurance
-
Electric endurance in number of cycles4000
-
Number of mechanical operations20000
Equipment
-
Number of auxiliary contacts as change-over contact0
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as normally open contact0
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature-25-70 °C
-
Degree of pollution according to IEC 60664 / IEC 60947-23
Cover, door
-
InterlockableYes
Cable
-
Cable materialCopper, Aluminium
Dimensions
-
Height330 mm
-
Width280 mm
-
Depth198 mm
Controls and indicators
-
Motor drive integratedNo
Compatibility
-
Suitable for DIN RailNo
-
Compatible with RDC AOBNo
Power supply
-
Position power supplyBidirectional
Connectivity
-
Type of connectionBolt connection
Electrical protection
-
Long-time overload protection (ltd): delay (tr)0.5 s, 1 s, 2 s, 4 s, 5 s, 8 s, 10 s, 15 s, 20 s, 25 s
-
Short-time protection (std): delay (tsd)50 ms, 100 ms, 200 ms, 400 ms, 600 ms
-
Instantaneous protection (li): dial setting coefficient1.5, 2, 3, 4, 6, 8, 10, 12, 15
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents

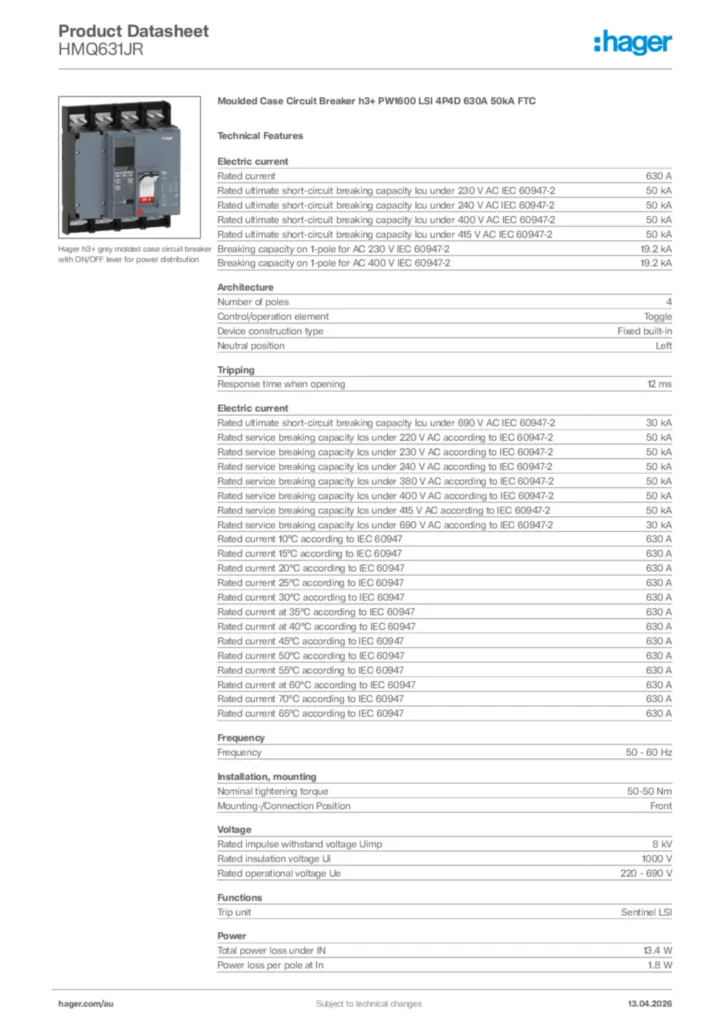

Downloads
-
Product image
-
Installation manual
Installation manual
h3+ PW1600 Moulded case circuit breakers 630 A to 1600 A
PDF40,05 MB

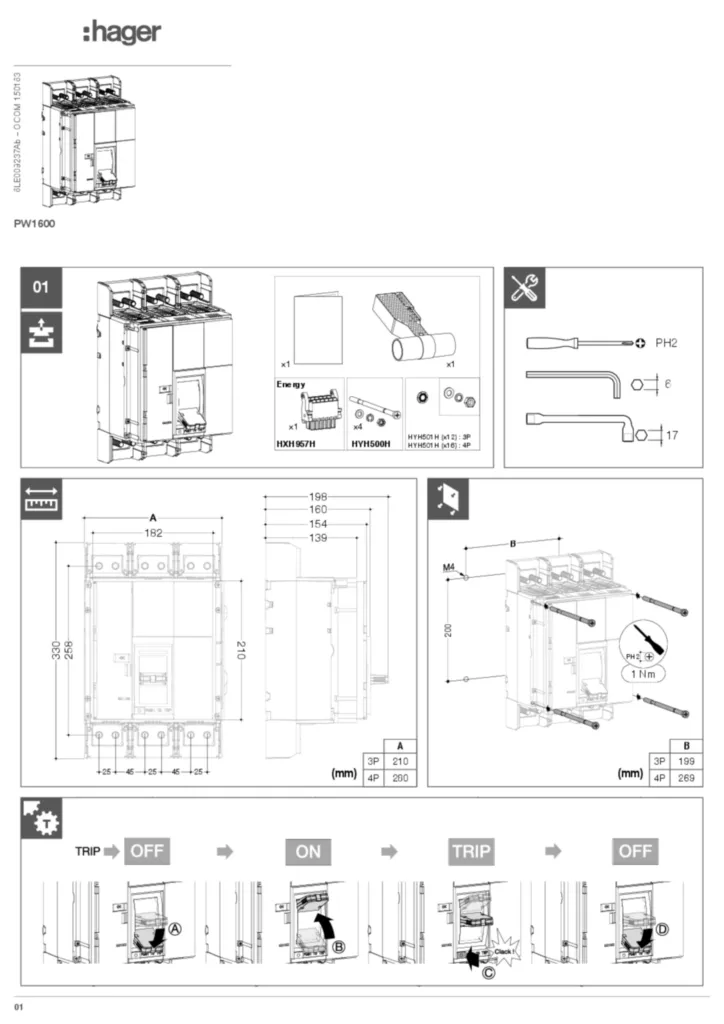

QuickInstall manual
h3+ PW1600 Moulded case circuit breakers 630 A to 1600 A
PDF25,64 MB -
Manual
User manual
hw+ sentinel electronic trip units
PDF19,14 MB
User manual
h3+ PW1600 Moulded case circuit breakers 630 A to 1600 A
PDF11,76 MB -
Declaration of conformity
EU declaration of conformity
PDF430,71 kB
UKCA declaration of conformity
PDF415,30 kB
