The Hager MCB 1P 10kA C-80A 1.5M is a compact 1.5-module breaker providing overload and short-circuit protection for 230-415 V AC circuits. With C-curve tripping, 80 A rating and 10 kA breaking capacity (IEC 60898-1/60947-2), it suits high-inrush loads and submains in residential/commercial boards. Screw terminals up to 70 mm², IP20, 50-60 Hz, durable (20k mech/4k elec), -25 to 70 °C. Designed for reliable installation in residential and commercial switchboards,suitable for DIN rail mounting.
EAN
3250613231095
Packaging
1 Piece
Hager Miniature circuit breaker 1P 80A 10kA Curve C 1.5 Module HMF180T
Login to create a product list
You need to be logged into your myHager account to create product lists
Spare part: check availability with your electrical wholesaler
Follow-up products :
Complete your system
Optional accessories
-
Locking interlocking functions 1 products available -
Terminal cover 1 products available -
Mechanic accessories for low-voltage components 1 products available -
Under voltage coil 1 products available -
Shunt release 2 products available -
Auxiliaries contact block 2 products available
Complete your system
Technical properties
Architecture
-
Type of pole1P
-
CurveC
Voltage
-
Rated operational voltage Ue230 - 415 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp6000 V
Frequency
-
Frequency50 - 60 Hz
Installation, mounting
-
Nominal tightening torque3,5 - 5,0 Nm
-
Type of top connection for modular devicesScrew terminal
-
Type of bottom connection for modular devicesScrew terminal
-
Nominal tightening torque down terminal3,60 - 3,60 Nm
-
Nominal tightening torque top terminal3,60 - 3,60 Nm
Electric current
-
Rated current80 A
-
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-110 kA
-
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-210 kA
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-110 kA
Safety
-
Ingress Protection (IP) classIP20
Power
-
Total power loss under IN6,18 W
Endurance
-
Electric endurance in number of cycles4000
-
Number of mechanical operations20000
Connection
-
Cross-section of input and output with screws, for massive conductors1 - 70 mm²
-
Cross-section of input and output with screws, for flexible conductors1 - 50 mm²
-
Cross-section flexible conductor50 mm²
-
Cross-section rigid conductor70 mm²
Use conditions
-
Degree of pollution according to IEC 60664 / IEC 60947-23
-
Air humidity protectionFor all climates
-
Operating temperature-25 - 70 °C
Capacity
-
Number of modules1,50
Connectivity
-
Top connection alignment for modular devicesAligned terminal
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Height90 mm
-
Width27 mm
-
Depth70 mm
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

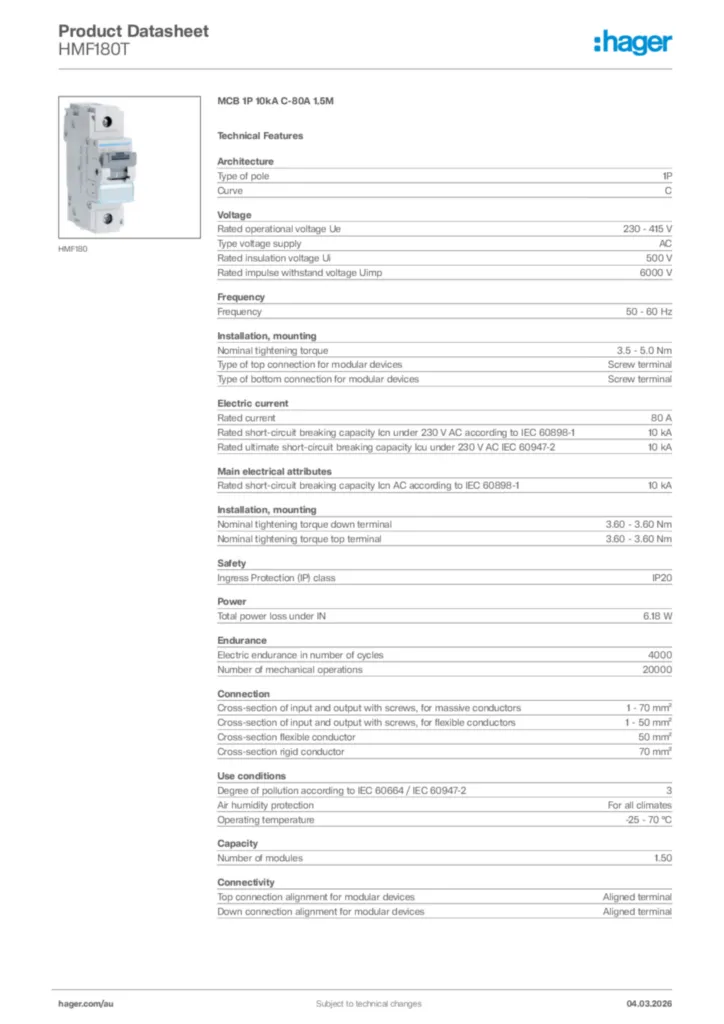

Hager Product data sheet HMF180T
