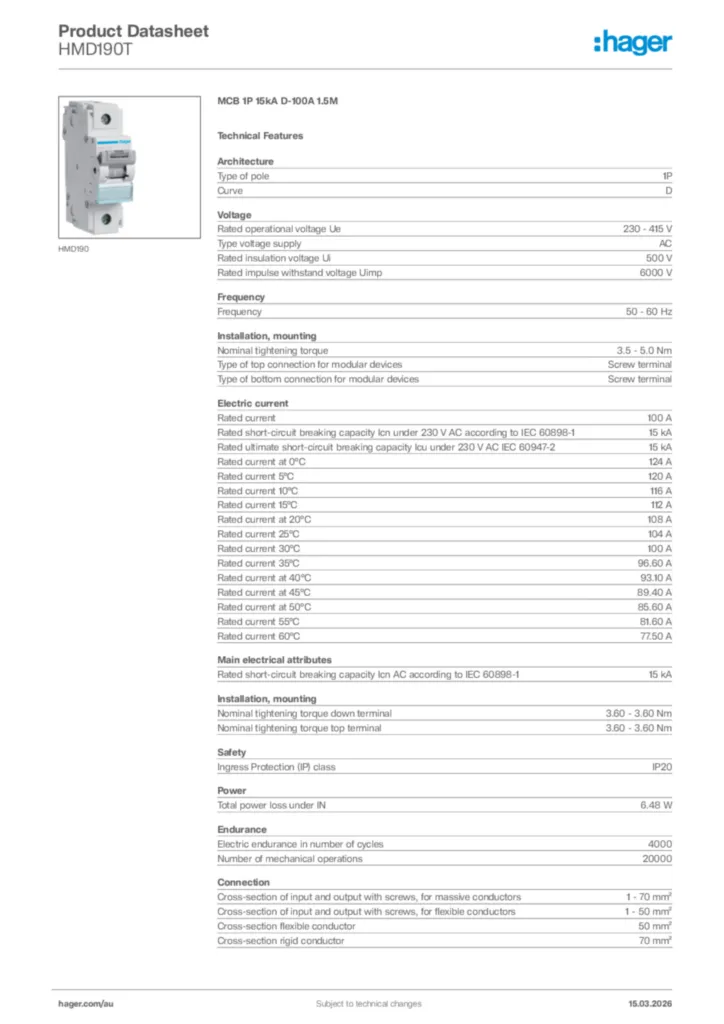

MCB 1P 15kA D-100A 1.5M HMD190T
EAN
3250613231347
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Mechanic accessories for low-voltage components 1 products available -
Auxiliaries contact block 2 products available -
Shunt release 2 products available -
Under voltage coil 1 products available -
Locking interlocking functions 1 products available -
See more 1 other products available
Complete your system
Technical properties
Architecture
-
Type of pole1P
-
CurveD
Voltage
-
Rated operational voltage Ue230 - 415 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp6000 V
Frequency
-
Frequency50 - 60 Hz
Installation, mounting
-
Nominal tightening torque3,5 - 5,0 Nm
-
Type of top connection for modular devicesScrew terminal
-
Type of bottom connection for modular devicesScrew terminal
Electric current
-
Rated current100 A
-
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-115 kA
-
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-215 kA
-
Rated current at 0°C124 A
-
Rated current 5°C120 A
-
Rated current 10°C116 A
-
Rated current 15°C112 A
-
Rated current at 20°C108 A
-
Rated current 25°C104 A
-
Rated current 30°C100 A
-
Rated current 35°C96,60 A
-
Rated current at 40°C93,10 A
-
Rated current at 45°C89,40 A
-
Rated current at 50°C85,60 A
-
Rated current 55°C81,60 A
-
Rated current 60°C77,50 A
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-115 kA
-
Nominal tightening torque down terminal3,60 - 3,60 Nm
-
Nominal tightening torque top terminal3,60 - 3,60 Nm
Power
-
Total power loss under IN6,48 W
Endurance
-
Electric endurance in number of cycles4000
-
Number of mechanical operations20000
Connection
-
Cross-section of input and output with screws, for massive conductors1 - 70 mm²
-
Cross-section of input and output with screws, for flexible conductors1 - 50 mm²
-
Cross-section flexible conductor50 mm²
-
Cross-section rigid conductor70 mm²
Use conditions
-
Degree of pollution according to IEC 60664 / IEC 60947-23
-
Air humidity protectionFor all climates
-
Operating temperature-25 - 70 °C
Capacity
-
Number of modules1,50
Connectivity
-
Top connection alignment for modular devicesAligned terminal
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Height90 mm
-
Width27 mm
-
Depth70 mm
