Main Switchgear

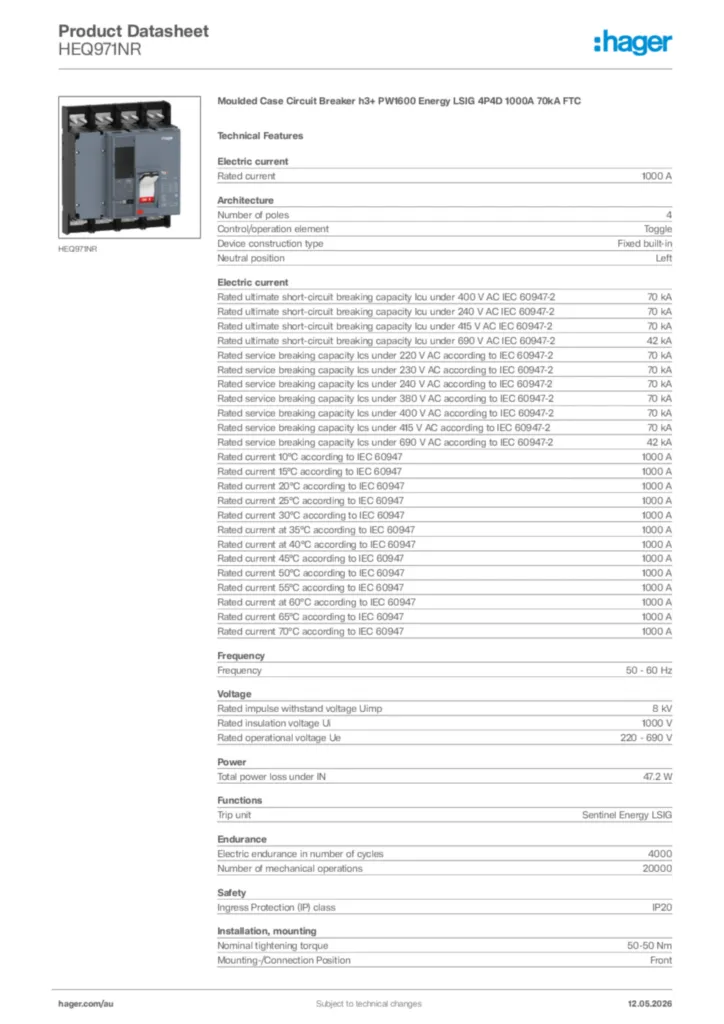

Moulded Case Circuit Breaker h3+ PW1600 Energy LSIG 4P4D 1000A 70kA FTC HEQ971NR

EAN

3250613250850

Packaging

1 Piece

Accessories
Technical properties
Environmental value
Documentations
More products

Complete your system

Handle for power circuit breaker 1 products available
Electrical accessories for low-voltage components 2 products available
Terminal cover 1 products available
Auxiliaries network functions 2 products available
Mechanic accessories for low-voltage components 4 products available
Auxiliaries switch position 1 products available

Technical properties

Rated current

1000 A
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

70 kA
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-2

70 kA
Rated ultimate short-circuit breaking capacity Icu under 415 V AC IEC 60947-2

70 kA
Rated service breaking capacity Ics under 220 V AC according to IEC 60947-2

50 kA
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-2

50 kA
Rated service breaking capacity Ics under 240 V AC according to IEC 60947-2

50 kA
Rated service breaking capacity Ics under 380 V AC according to IEC 60947-2

50 kA
Rated service breaking capacity Ics under 400 V AC according to IEC 60947-2

50 kA
Rated service breaking capacity Ics under 415 V AC according to IEC 60947-2

50 kA
Rated current 10°C according to IEC 60947

1000 A
Rated current 15°C according to IEC 60947

1000 A
Rated current 20°C according to IEC 60947

1000 A
Rated current 25°C according to IEC 60947

1000 A
Rated current 30°C according to IEC 60947

1000 A
Rated current at 35°C according to IEC 60947

1000 A
Rated current at 40°C according to IEC 60947

1000 A
Rated current 45°C according to IEC 60947

1000 A
Rated current 50°C according to IEC 60947

1000 A
Rated current 55°C according to IEC 60947

1000 A
Rated current at 60°C according to IEC 60947

1000 A
Rated current 65°C according to IEC 60947

1000 A
Rated current 70°C according to IEC 60947

1000 A

Number of poles

4
Control/operation element

Toggle
Device construction type

Fixed built-in
Neutral position

Left

Frequency

50 - 60 Hz

Rated impulse withstand voltage Uimp

8 kV
Rated insulation voltage Ui

1000 V
Rated operational voltage Ue

220 - 690 V

Trip unit

Sentinel Energy LSIG

Total power loss under IN

47,2 W

Electric endurance in number of cycles

4000
Number of mechanical operations

20000

Nominal tightening torque

50-50 Nm
Mounting-/Connection Position

Front

Ingress Protection (IP) class

IP20

Interlockable

Yes

Cable material

Copper, Aluminium

Compatible with RDC AOB

No
Suitable for DIN Rail

No

Height

330 mm
Width

280 mm
Depth

198 mm

Type of connection

Bolt connection

Long-time overload protection (ltd): delay (tr)

0.5 s, 1 s, 1.5 s, 2 s, 2.5 s, 3 s, 3.5 s, 4 s, 4.5 s, 5 s, 5.5 s, 6 s, 6.5 s, 7 s, 7.5 s, 8 s, 8.5 s, 9 s, 9.5 s, 10 s, 10.5 s, 11 s, 11.5 s, 12 s, 12.5 s, 13 s, 13.5 s, 14 s, 14.5 s, 15 s, 15.5 s, 16 s, 16.5 s, 17 s, 17.5 s, 18 s, 18.5 s, 19 s, 19.5 s, 20 s, 20.5 s, 21 s, 21.5 s, 22 s, 22.5 s, 23 s, 23.5 s, 24 s, 24.5 s, 25 s
Short-time protection (std): delay (tsd)

50 ms, 100 ms, 150 ms, 200 ms, 250 ms, 300 ms, 350 ms, 400 ms, 450 ms, 500 ms, 550 ms, 600 ms
Instantaneous protection (li): dial setting coefficient

1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10, 10.5, 11, 11.5, 12, 12.5, 13, 13.5, 14, 14.5, 15

Environmental value

We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

RoHS conform Yes

Certifications and documents

PEP document en-GB 2024-10-15

PDF

439,47 kB

Hager REACH declaration HEQ971NR

PDF

RoHS report HEQ971NR

PDF
