MCCB h1000 4P 1000A Icu 70kA@400V LSI fixed toggle HEE971H
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Terminal cover 2 product.page.accessories.products-available -
Padlock barrier for switch 1 product.page.accessories.products-available -
Shunt release 5 product.page.accessories.products-available -
Under voltage coil 4 product.page.accessories.products-available -
Motor operator 2 product.page.accessories.products-available -
Locking interlocking functions 1 product.page.accessories.products-available
product.page.accessories.title-modal
-
HXC005H
Shunt trip Release 380-450V AC (h250-h400-h630-h800-h1000)
-
HXC004HShunt trip Release 200-240V AC (h250-h400-h630-h800-h1000)
-
HXC002HShunt trip Release 48V DC (h250-h400-h630-h800-h1000)
-
HXC003HShunt trip Release 100-120V AC (h250-h400-h630-h800-h1000)
-
HXC001HShunt trip Release 24V DC (h250-h400-h630-h800-h1000)
Technical characteristics
Electric current
-
Rated current IN1000 A
-
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-2100 kA
-
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-2100 kA
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-270 kA
-
Rated ultimate short-circuit breaking capacity Icu under 415 V AC IEC 60947-270 kA
-
Breaking capacity on 1-pole for AC 230 V IEC 60947-260 kA
-
Breaking capacity on 1-pole for AC 400 V IEC 60947-29 kA
Architecture
-
Number of poles4
-
Control/operation elementToggle
-
Device construction typeFixed built-in
Capacity
-
Number of modules16
Tripping
-
Response time when opening10 ms
Settings
-
Magnetic protection knob setting xIN2.5, 5, 8
-
Range of magnetic adjustment5600 A, 7000 A, 8820 A, 10000 A, 10000 A, 10000 A, 10000 A
-
Thermal protection knob setting xIN0.4, 0.5, 0.63, 0.8, 0.9, 0.95, 1
-
Adjustment range short-term delayed short-circuit release0 - 0 A
Frequency
-
Frequency50 - 60 Hz
Installation, mounting
-
Nominal tightening torque65 - 65 Nm
-
Mounting-/Connection PositionFront
Voltage
-
Rated impulse withstand voltage Uimp8000 V
-
Rated insulation voltage Ui800 V
-
Rated operational voltage Ue220 - 690 V
Functions
-
Trip unitLSI
Main electrical attributes
-
Magnetic protection trip time100 - 200 ms
Power
-
Power dissipation at IN186 W
-
Power loss per pole at In62 W
Endurance
-
Electric endurance in number of cycles1000
-
Number of mechanical operations4000
Equipment
-
Number of auxiliary contacts as change-over contact0
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as normally open contact0
Safety
-
Ingress Protection (IP) classIP4X
Use conditions
-
Operating temperature-25 - 70 °C
Connection
-
Cross-section flexible conductor2x 240 mm²
-
Cross-section rigid conductor2x 240 mm²
-
Connector/plug typeTerminal
Controls and indicators
-
Motor drive integrated
Compatibility
-
Suitable for DIN Rail
Power supply
-
Position power supplyBidirectional
Downloads
-
Product image
-
GeneratedProductDatasheet

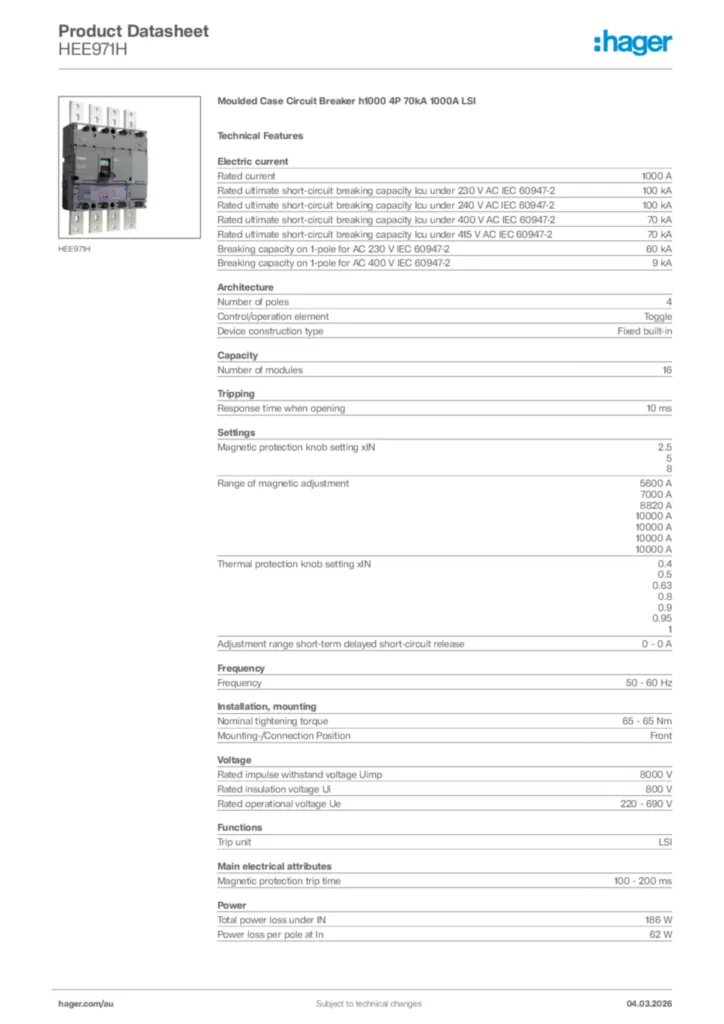

Hager Product data sheet HEE971H
Moulded Case Circuit Breaker h1000 4P 70kA 1000A LSI
PDF -
ProductInstallationManual
Installation manual International 2021-06-16
PDF7,89 MB -
ProductECDeclaration
Declaration
Declaration of conformity International 2022-06-23
PDF285,31 kB
Declaration of conformity en-US 2026-07-14
PDF262,43 kB
