Enclosure, NewVegaD, 1200x550x193mm, 168 modules, surface-mounted, distribution FD72DN

EAN
3250612548316
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Enclosure, NewVegaD, 1200x550x193mm, 168 modules, surface-mounted, distribution

FD72DN

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • See more (13)
    • Door/­op­er­ating panel 2 products available
    • Cover strip 1 products available
    • Mounting accessories 5 products available
    • Distrib­utor assembly for device surface mounting 1 products available
    • Vent­il­ator for enclosure 1 products available
    • Separ­a­tion plate for meter/dis­tri­bu­tion boards 1 products available

    Complete your system

    • Door/­op­er­ating panel
    • Cover strip
    • Mounting accessories
    • Distrib­utor assembly for device surface mounting
    • Vent­il­ator for enclosure
    • Separ­a­tion plate for meter/dis­tri­bu­tion boards
    • Modular connector
    • Coax connector
    • FD72TN

      Glazed door, NewVegaD, 1150x500mm, for 7-rows enclosure
      EUR 0.00  / *
    • FD72PN

      Plain door, NewVegaD, 1150x500mm, for 7-rows enclosure
      EUR 0.00  / *
    • JP002

      Cover strip, universal, 24 Modules, RAL 9011
      EUR 0.00  / *
    • UZ25V2

      Cable bracket, universN, small section, 20 pieces
      EUR 0.00  / *
    • UZ25V1

      Cable bracket, universN, big section, 20 pieces
      EUR 0.00  / *
    • UZ01V1

      Support, universN, double, for cable bracket, 20 pieces
      EUR 0.00  / *
    • FD00F2

      Kit NewVegaD, with external wall-mounting plates
      EUR 0.00  / *
    • ZZ42BS

      Kit with 4 plastic screws for frame mounting of VegaD/NewVegaD
      EUR 0.00  / *
    • FD02C2

      Kit, NewVegaD, 300x500mm, with depth-adjustable perforated plate and plain cover
      EUR 0.00  / *
    • FD00P5

      Kit, NewVegaD, universFW, with 2 aeration grids, for FD…, FWU...
      EUR 0.00  / *
    • FD00A3

      Partition plate, NewVegaD, for surface enclosure, horizontal
      EUR 0.00  / *
    • TN008S

      RJ45 cat.6A connector for grade 3 TV + modular support
      EUR 0.00  / *
    • TN010S

      F type module complete
      EUR 0.00  / *

    Technical properties

    Connec­tion
    • Number of conduit inlets
      4
    Voltage
    • Nominal voltage
      230 - 400 V
    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Surface mounting
    Elec­tric current
    • Rated current
      160 A
    Equip­ment
    • Number of rails
      7
    • Number of rows
      7
    • With lock
      No
    • Has neutral terminal block
      No
    • Has earthing terminal block
      Yes
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      168
    Dimen­sions
    • Height
      1200 mm
    • Width
      550 mm
    • Depth
      193 mm
    • Number of width units
      24
    Cover, door
    • Number of cabinet doors
      0
    • Number of locks
      0
    • Door/­cover is trans­parent
      No
    Mater­ials
    • Material
      Metal, Plastic
    • RAL code
      9010
    • Colour
      Pure white
    Safety
    • Protec­tion class
      Isol­a­tion class II
    • Impact resist­ance IK
      IK07
    • Ingress Protec­tion (IP) class
      IP30
    • Locking type
      Without lock

    Environmental value

    We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

    RoHS conform Yes

    Certifications and documents

    Encl., NewVegaD, 900x550x193mm, 120 mod.
    PDF
    472,28 kB
    Hager REACH declaration FD72DN
    PDF
    Hager RoHS report FD72DN
    PDF

    Downloads

    • Product image

      Image FD72DN | Hager Australia

      Product Image FD72DN

    • Product datasheet

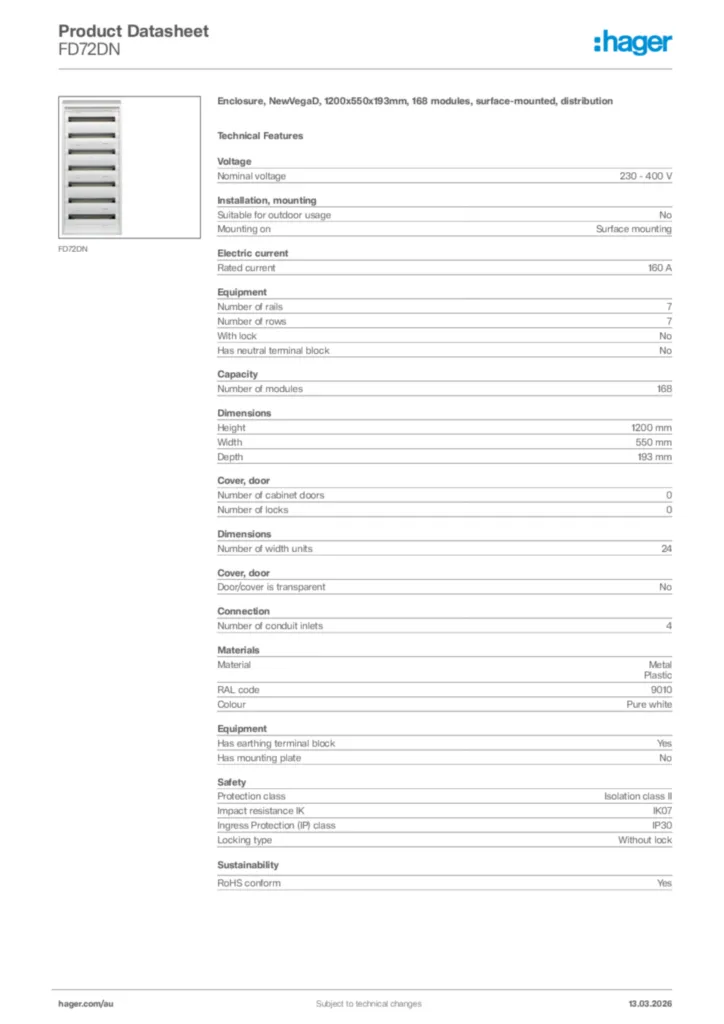

      Image Hager Product data sheet FD72DN | Hager Australia

      Hager Product data sheet FD72DN

      Enclosure, NewVegaD, 1200x550x193mm, 168 modules, surface-mounted, distribution

      PDF

    • Installation manual

      Image Installation manual International 2014-03-24 | Hager Australia

      Installation manual International 2014-03-24

      PDF
      7,44 MB

    • Handbook

      Image Handbook en-GB 2022-10-10 | Hager Australia

      Handbook en-GB 2022-10-10

      PDF
      24,05 MB
      Image Handbook en-GB 2023-07-07 | Hager Australia

      Handbook en-GB 2023-07-07

      PDF
      11,76 MB
      Image Handbook fr-FR 2023-09-11 | Hager Australia

      Handbook fr-FR 2023-09-11

      PDF
      11,49 MB
      Image Handbook fr-FR 2023-09-28 | Hager Australia

      Handbook fr-FR 2023-09-28

      PDF
      10,54 MB

    • Declaration of conformity

      Image Declaration | Hager Australia

      Declaration

      Declaration of conformity International 2022-10-11

      PDF
      190,72 kB
