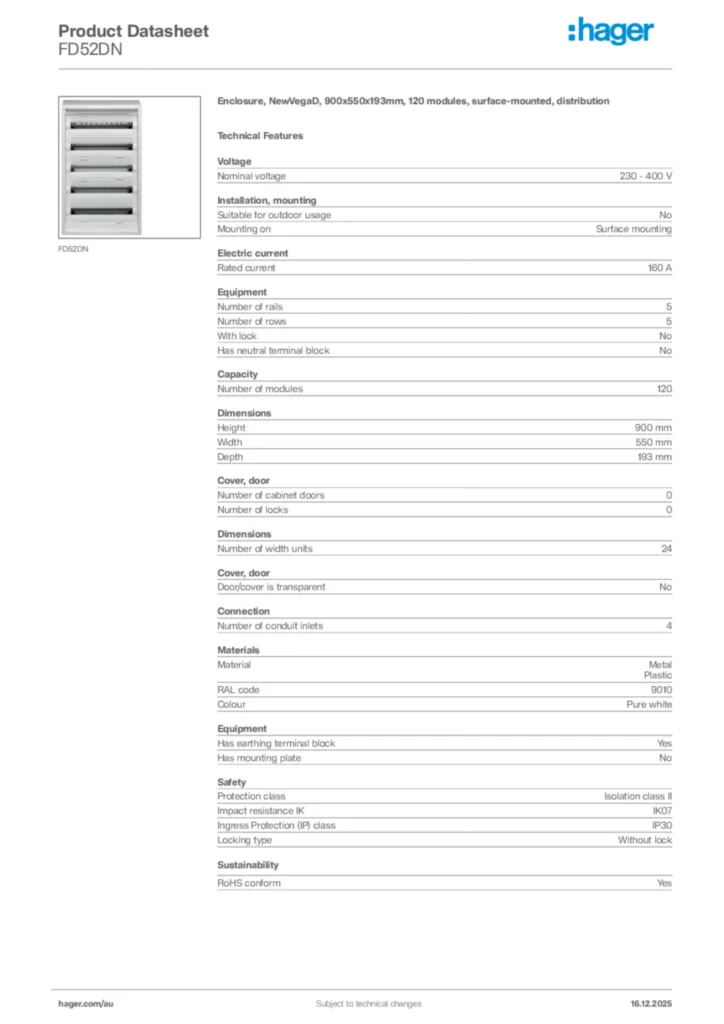

Enclosure, NewVegaD, 900x550x193mm, 120 modules, surface-mounted, distribution FD52DN
EAN
3250612548293
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Distributor assembly for device surface mounting 1 products available -
Modular connector 1 products available -
Door/operating panel 2 products available -
Separation plate for meter/distribution boards 1 products available -
Ventilator for enclosure 1 products available -
See more 7 other products available
Complete your system
-
FD00F2Kit NewVegaD, with external wall-mounting plates
-
UZ01V1Support, universN, double, for cable bracket, 20 pieces
-
UZ25V1Cable bracket, universN, big section, 20 pieces
-
UZ25V2Cable bracket, universN, small section, 20 pieces
-
ZZ42BSKit with 4 plastic screws for frame mounting of VegaD/NewVegaD
Technical properties
Connection
-
Number of conduit inlets4
Voltage
-
Nominal voltage230 - 400 V
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current160 A
Equipment
-
Number of rails5
-
Number of rows5
-
With lockNo
-
Has neutral terminal blockNo
-
Has earthing terminal blockYes
-
Has mounting plateNo
Capacity
-
Number of modules120
Dimensions
-
Height900 mm
-
Width550 mm
-
Depth193 mm
-
Number of width units24
Cover, door
-
Number of cabinet doors0
-
Number of locks0
-
Door/cover is transparentNo
Materials
-
MaterialMetal, Plastic
-
RAL code9010
-
ColourPure white
Safety
-
Protection classIsolation class II
-
Impact resistance IKIK07
-
Ingress Protection (IP) classIP30
-
Locking typeWithout lock
Environmental value
