    The Hager Vector IP65 12M UV‑stabilised surface‑mount enclosure provides reliable DC/AC distribution outdoors. 1 row/12 modules, 1 rail; up to 63A at 400V AC or 1000V DC. IK08, Class II insulation, 850°C glow‑wire rating. Transparent door, light grey RAL7035. Supplied with N/PE terminal blocks and 12 knockouts for fast wiring. Ideal for PV and outdoor circuits. Suitable for DIN rail mounting in residential and commercial switchboards and compliant electrical distribution applications.
    EAN
    3250615600608
    Packaging
    1 Piece
    • Delay Timers / Time Delay Relays

    Hager Off-delay time relay with control input 24-240V AC/DC 1CO 8A 1M 50ms-100h EZF100

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Hager Off-delay time relay with control input 24-240V AC/DC 1CO 8A 1M 50ms-100h

    EZF100

    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Frequency
    • Frequency
      50 - 60 Hz
    Use condi­tions
    • Oper­ating temper­ature
      -25 - 55 °C
    • Stor­age/trans­port temper­ature
      -25 - 70 °C
    Connec­tion
    • Cross-sec­tion flex­ible conductor
      0.5 - 2.5 mm²
    • Cross-sec­tion rigid conductor
      0.5 - 2.5 mm²
    • Number of contacts
      1
    • Type of contacts
      1x changeover
    Capa­city
    • Number of modules
      1
    Dimen­sions
    • Height
      87 mm
    • Width
      17,50 mm
    • Depth
      65 mm
    Elec­tric current
    • Accept­able current rating AC1
      8 A
    Equip­ment
    • Number of NC contacts
      0
    • Number of NO contacts
      1
    • Switch off delay
      Yes
    • Switch on delay
      No
    Settings
    • Time delay
      50 ms - 100 h
    Voltage
    • Command voltage for 50 Hz
      24 - 240 V
    • Command voltage for 60 Hz
      24 - 240 V
    • Command voltage Us for DC
      24 - 240 V
    • Type voltage supply
      AC/DC

    Environmental value

    We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    Certifications and documents

    PEP document International 2022-12-02
    PDF
    337,88 kB
    REACH declaration EZF100
    PDF
    Hager RoHS report EZF100
    PDF

    Downloads

    • Product image

      Image EZF100 | Hager Australia

      Product Image EZF100

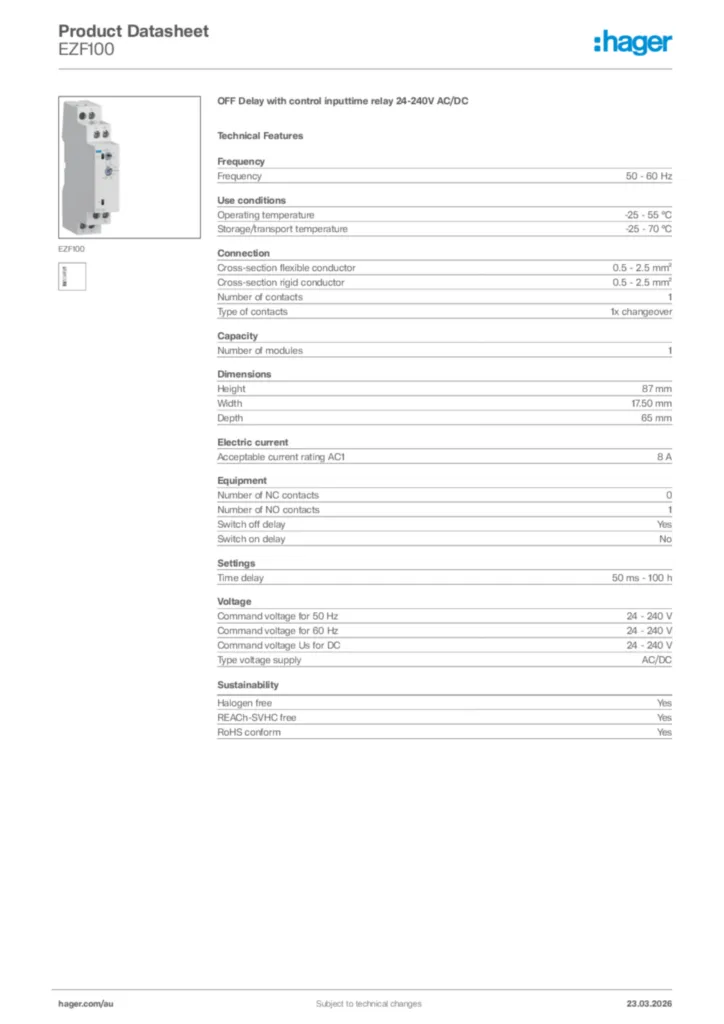

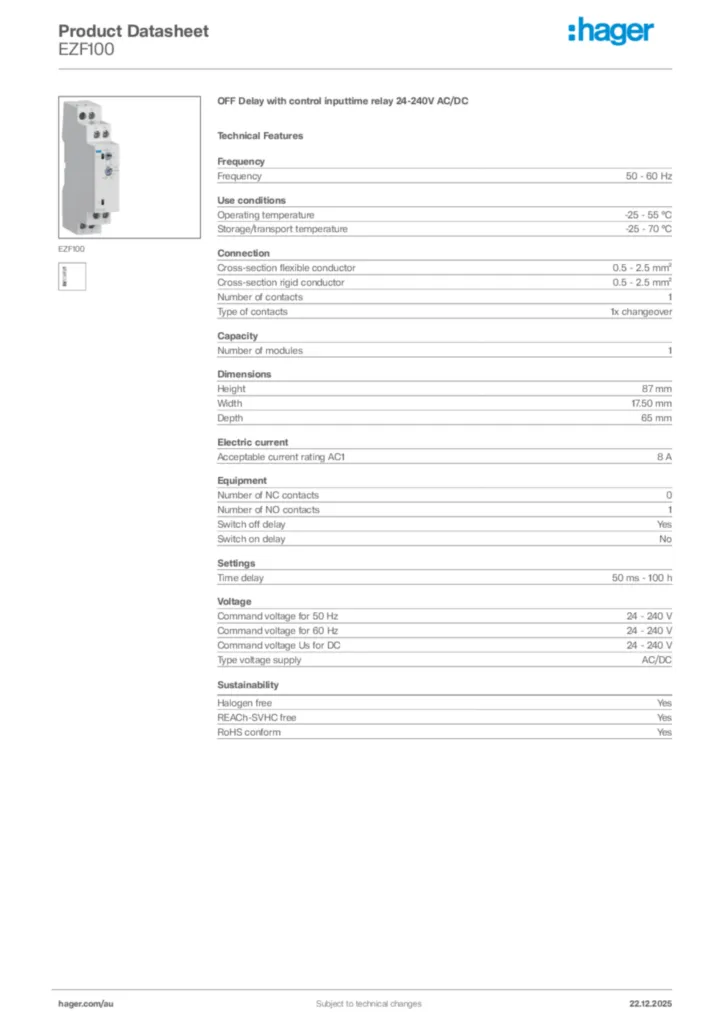

    • Product datasheet

      Image Hager Product data sheet EZF100 | Hager Australia

      Hager Product data sheet EZF100

      OFF Delay with control inputtime relay 24-240V AC/DC

      PDF

    • Installation manual

      Image Installation manual de-AT, de-DE, de-CH, en-AU, en-GB, en-NZ, en-US, fr-BE, fr-FR, fr-CH, it-IT, it-CH 2023-12-06 | Hager Australia

      Installation manual de-AT, de-DE, de-CH, en-AU, en-GB, en-NZ, en-US, fr-BE, fr-FR, fr-CH, it-IT, it-CH 2023-12-06

      PDF
      677,65 kB

    • Flyer

      Image Hager Delay Timers | Hager Australia

      Hager Delay Timers

      PDF
      465,34 kB

    • Declaration of conformity

      Image EU Declaration of Conformity | Hager Australia

      EU Declaration of Conformity

      Declaration of conformity en-GB, fr-FR 2024-01-04

      PDF
      315,33 kB
      Image UKCA Declaration of Conformity | Hager Australia

      UKCA Declaration of Conformity

      Declaration of conformity en-GB 2024-01-04

      PDF
      269,59 kB
