Stair case time lag switch

EMN001

  • DIN rail-­mounted devices

Stair case time lag switch EMN001

EAN
3250612339969
Packaging
6

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Technical properties
  • Environmental value
  • Documentations
  • More products

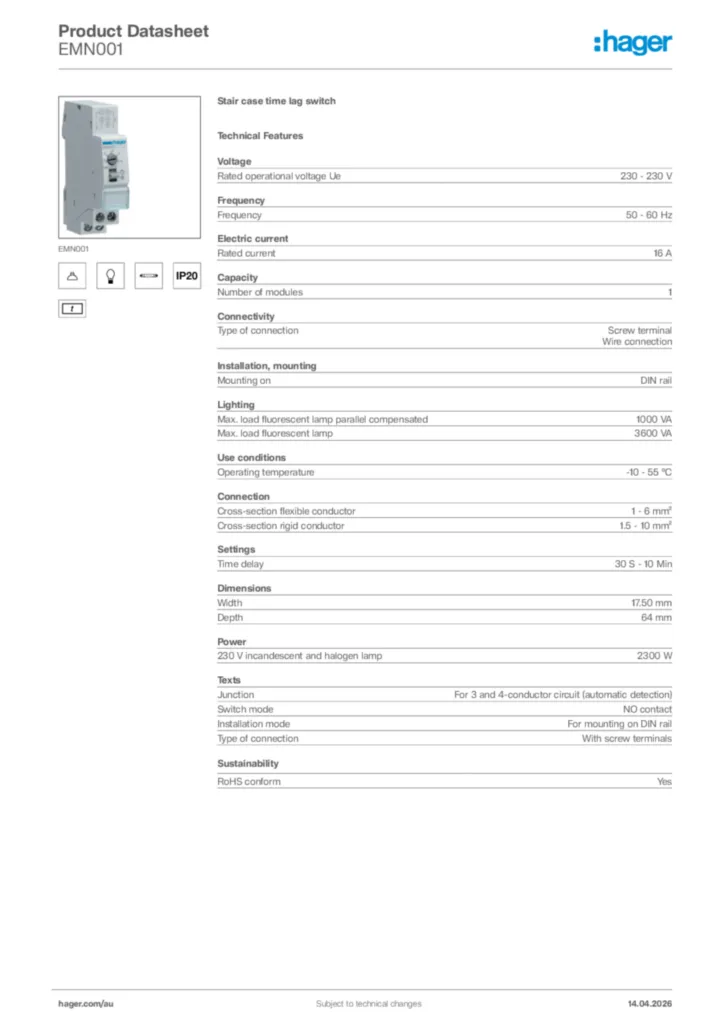

Download the data sheet

Technical properties

Voltage
  • Rated oper­a­tional voltage Ue
    230 - 230 V
Frequency
  • Frequency
    50 - 60 Hz
Elec­tric current
  • Rated current
    16 A
Capa­city
  • Number of modules
    1
Connectivity
  • Type of connec­tion
    Screw terminal, Wire connec­tion
Install­a­tion, mounting
  • Mounting on
    DIN rail
Lighting
  • Max. load fluor­es­cent lamp parallel compensated
    1000 VA
  • Max. load fluor­es­cent lamp
    3600 VA
Use condi­tions
  • Oper­ating temper­ature
    -10 - 55 °C
Connec­tion
  • Cross-sec­tion flex­ible conductor
    1 - 6 mm²
  • Cross-sec­tion rigid conductor
    1.5 - 10 mm²
Settings
  • Time delay
    30 S - 10 Min
Dimen­sions
  • Width
    17,50 mm
  • Depth
    64 mm
Power
  • 230 V incan­des­cent and halogen lamp
    2300 W
Texts
  • Junc­tion
    For 3 and 4-con­ductor circuit (auto­matic detec­tion)
  • Switch mode
    NO contact
  • Install­a­tion mode
    For mounting on DIN rail
  • Type of connec­tion
    With screw terminals

Environmental value

We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

RoHS conform Yes

Certifications and documents

REACH declaration EMN001 (english)
PDF
103,10 kB
RoHS declaration EMN001 (english)
PDF
103,84 kB

Downloads

  • Product image

    Image EMN001 | Hager Australia

    Product Image EMN001

  • Declaration of conformity

    Image Declaration | Hager Australia

    Declaration

    Declaration of conformity International 2021-11-17

    PDF
    127,02 kB
