    Hager Invicta 250A TPN board with 48P chassis (ISO-STD-GR) delivers reliable distribution for commercial and light industrial applications. Surface-mounted steel enclosure (RAL7035) with key lock, IP30/IK05, Class I. Supplied with 1 isolator and fixed-load busbar, 16 modules. Dimensions 1000×480×135 mm. Ideal for organising up to 48 poles with secure isolation and tidy wiring. Suitable for DIN rail mounting and compliant electrical distribution in residential and commercial switchboards.
    EAN
    3250615600592
    Packaging
    1 Piece
    • Delay Timers / Time Delay Relays

    Hager On-delay time relay 24-240V AC/DC 1 changeover 8A 50ms-100h 1 Module EZD100

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Hager On-delay time relay 24-240V AC/DC 1 changeover 8A 50ms-100h 1 Module

    EZD100

    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Frequency
    • Frequency
      50 - 60 Hz
    Use condi­tions
    • Oper­ating temper­ature
      -25 - 55 °C
    • Stor­age/trans­port temper­ature
      -25 - 70 °C
    Connec­tion
    • Cross-sec­tion flex­ible conductor
      0.5 - 2.5 mm²
    • Cross-sec­tion rigid conductor
      0.5 - 2.5 mm²
    • Number of contacts
      1
    • Type of contacts
      1x changeover
    Capa­city
    • Number of modules
      1
    Dimen­sions
    • Height
      87 mm
    • Width
      17,50 mm
    • Depth
      65 mm
    Elec­tric current
    • Accept­able current rating AC1
      8 A
    Equip­ment
    • Number of NC contacts
      0
    • Number of NO contacts
      1
    • Switch off delay
      No
    • Switch on delay
      Yes
    Settings
    • Time delay
      50 ms - 100 h
    Voltage
    • Command voltage for 50 Hz
      24 - 240 V
    • Command voltage for 60 Hz
      24 - 240 V
    • Command voltage Us for DC
      24 - 240 V
    • Type voltage supply
      AC/DC

    Environmental value

    We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    Certifications and documents

    PEP document International 2022-12-02
    PDF
    337,88 kB
    REACH declaration EZD100
    PDF
    Hager RoHS report EZD100
    PDF

    Downloads

    • Product image

      Image EZD100 | Hager Australia

      Product Image EZD100

    • Product datasheet

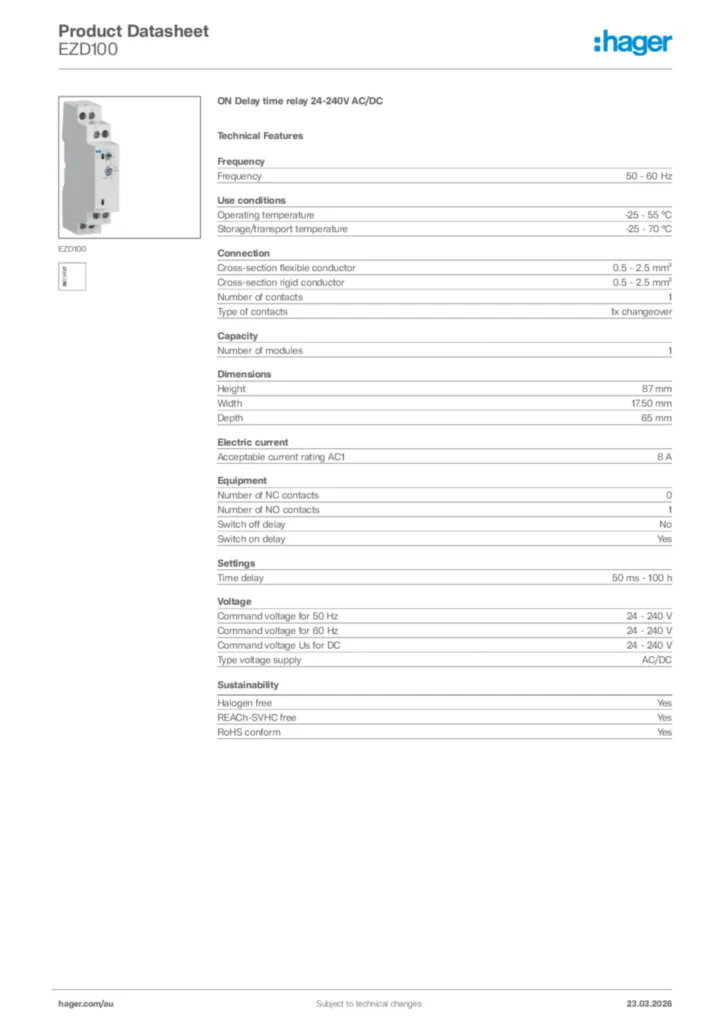

      Image Hager Product data sheet EZD100 | Hager Australia

      Hager Product data sheet EZD100

      ON Delay time relay 24-240V AC/DC

      PDF

    • Installation manual

      Image Installation manual de-AT, de-DE, de-CH, en-AU, en-GB, en-NZ, en-US, fr-BE, fr-FR, fr-CH, it-IT, it-CH 2023-12-06 | Hager Australia

      Installation manual de-AT, de-DE, de-CH, en-AU, en-GB, en-NZ, en-US, fr-BE, fr-FR, fr-CH, it-IT, it-CH 2023-12-06

      PDF
      662,41 kB

    • Flyer

      Image Hager Delay Timers | Hager Australia

      Hager Delay Timers

      PDF
      465,34 kB

    • Declaration of conformity

      Image EU Declaration of Conformity | Hager Australia

      EU Declaration of Conformity

      Declaration of conformity en-GB, fr-FR 2024-01-04

      PDF
      315,09 kB
      Image UKCA Declaration of Conformity | Hager Australia

      UKCA Declaration of Conformity

      Declaration of conformity en-GB 2024-01-04

      PDF
      269,56 kB
