Weekly time switch 1 channel, 3 modules with reserve EHN171
EAN
3250617201094
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Functions
-
Number of function channels1
-
Switching cyclesmin. 50000
-
Slide switchwith slide switch for permanent on/automatic
-
Power reserve≈ 200 h
Configuration
-
Switch modechange-over contact, usable as NC or NO
-
Number of modules3
Main electrical features
-
Rated operational voltage Ue230 / 240 V
-
Frequency50-60 Hz
Voltage
-
Operating voltage230 V~
Electric current
-
Max. power with cos phi 0.64 A
-
Switching current at cos φ = 0.6max. 3 A
Dimensions
-
Depth of installed product60 mm
-
Height of installed product90 mm
-
Width of installed product54 mm
-
Width of rail mounted device (RMD)3 modules
Power
-
Power consumed0.5 VA
-
Power consumption (operation)0.5 VA
-
Total power loss under IN1 W
-
Loss power at full load≈ 1 W
-
Power dissipation per coil0.5 W
Measurement
-
Running accuracy± 1 s/day
Battery
-
Battery / storage batterywith integrated storage battery for power reserve
-
Charging time of the power reserve in hours120
Fluorescent bulbs control
-
Compact fluorescent lampsmax. 200 W
Incandescent bulbs control
-
Max. power with incandescent lamps900 W
-
230 V incandescent lamps and halogen lampsmax. 900 W
Installation, mounting
-
Mounting typedin-Rail
-
Installation modefor mounting on DIN rail
Connection
-
Connection cross-sect. flexible conductor1 / 4mm²
-
Connection cross-sect. rigid cable1 / 4mm²
-
Conductor cross-section (flexible)1…4 mm²
-
Conductor cross-section (rigid)1…4 mm²
-
Number of contacts1
-
Type of contacts1 changeover
-
Type of connectionwith screw terminals
-
Contactwith potential-free switching contact
-
Type of connectionwith screw
Settings
-
Number of program steps84
-
Summer / Winter time changemanual
-
Shortest switching time120 mn
-
Type of programminganalog
-
Program cyclesProgramme cycles: 1 x 7 days
-
Programming cycle1X7D.
-
SettingFine setting of time via rotating hand
Equipment
-
Number of channels1
-
Number of switching times for on/off84
-
Supply failure reserve120 h
-
Switching cycles at cos φ = 0,6min. 20000
Use
-
Cycleweekly
Safety
-
REACH conformYes
-
RoHS conformYes
-
Halogen freeNo
Use conditions
-
Operating temperature-10…55 °C
-
Working accuracy1
-
Storage/transport temperature-10…55 °C
Downloads
-
Product image
-

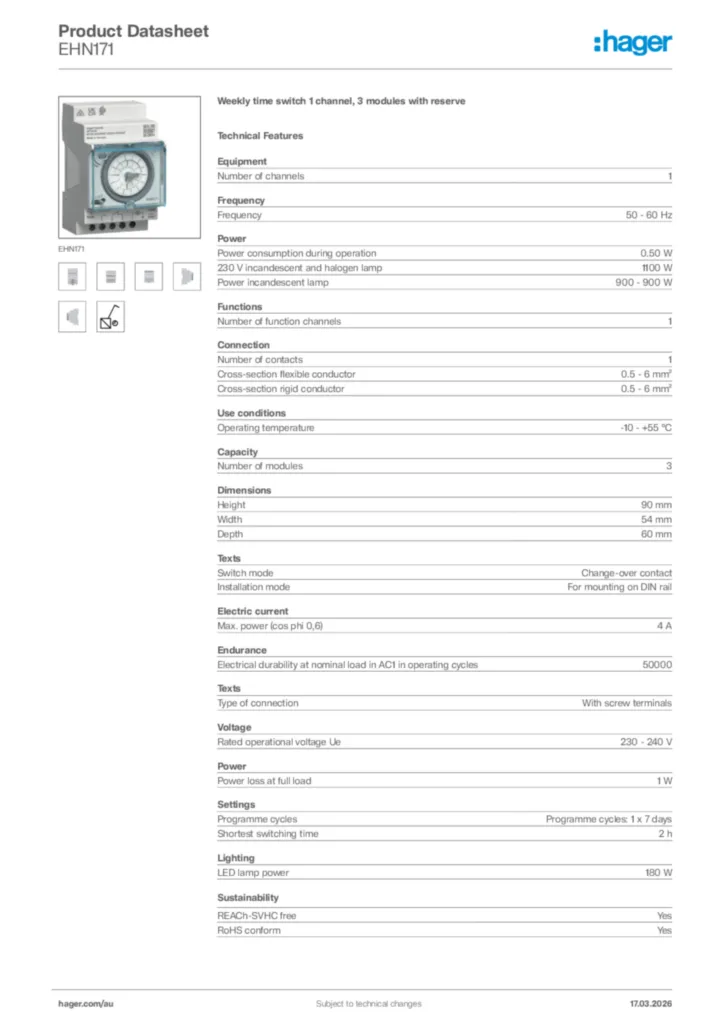

Instruction manual
Instruction manuals for EHN171
PDF3 MBInstruction manuals for EHN171
PDF2 MB -
Technical information
PDF2 MB -
Declaration of conformity
EU Declaration of conformity for EHN171
PDF314 KBEU Declaration of conformity for EHN171
PDF270 KBEU Declaration of conformity for EHN171
PDF348 KB -
RoHS report
REACH-declaration 2023-10-20 (english)
PDF32 KBRoHS-declaration 2023-10-20 (english)
PDF33 KB -
PEP document
Product environmental profile for EHN171
PDF417 KB
