Daily time switch 1 channel, 1 module EHN010
EAN
3250617201056
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Functions
-
Number of function channels1
-
Switching cyclesmin. 50000
-
Slide switchwith slide switch for permanent on/automatic
Configuration
-
Switch modeNO contact
-
Number of modules1
Main electrical features
-
Frequency50/60 Hz
Voltage
-
Operating voltage230 V~
Electric current
-
Max. power with cos phi 0.63 A
-
Switching current at cos φ = 0.6max. 3 A
Dimensions
-
Depth of installed product60 mm
-
Height of installed product90 mm
-
Width of installed product18 mm
-
Width of rail mounted device (RMD)1 modules
Power
-
Power consumed0.5 VA
-
Power consumption (operation)0.5 VA
-
Total power loss under IN1 W
-
Loss power at full load≈ 1 W
-
Power dissipation per coil0.5 W
Fluorescent bulbs control
-
Compact fluorescent lampsmax. 100 W
Incandescent bulbs control
-
Max. power with incandescent lamps900 W
-
230 V incandescent lamps and halogen lampsmax. 900 W
Installation, mounting
-
Mounting typedin-Rail
-
Installation modefor mounting on DIN rail
Connection
-
Connection cross-sect. flexible conductor1 / 4mm²
-
Connection cross-sect. rigid cable1 / 4mm²
-
Conductor cross-section (flexible)1…4 mm²
-
Conductor cross-section (rigid)1…4 mm²
-
Number of contacts1
-
Type of contacts1 changeover
-
Type of connectionwith screw terminals
-
Contactwith potential-free switching contact
-
Type of connectionwith screw
Settings
-
Number of program steps96
-
Summer / Winter time changemanual
-
Shortest switching time15 mn
-
Type of programminganalog
-
Program cyclesProgramme cycle: 24 hours
-
Programming cycle24H
-
SettingSetting via day dial
Equipment
-
Number of channels1
-
Number of switching times for on/off96
-
Supply failure reservewithout
-
Switching cycles at cos φ = 0,6min. 20000
Use
-
Cycledaily
Safety
-
REACH conformYes
-
RoHS conformYes
-
Halogen freeNo
Use conditions
-
Operating temperature-10…55 °C
-
Working accuracy1
-
Storage/transport temperature-20…70 °C
Downloads
-
Product image
-
Instruction manual

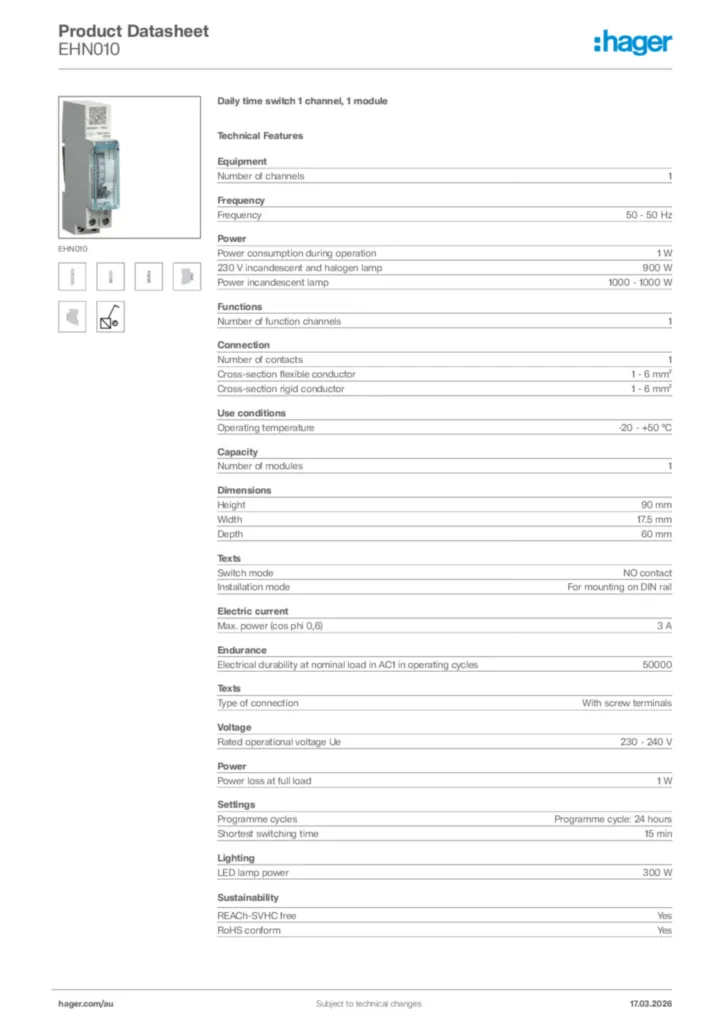

Instruction manuals for EHN010
PDF2 MB
Instruction manuals for EHN010
PDF720 KB -
Technical information
PDF2 MB -
Declaration of conformity
EU Declaration of conformity for EHN010
PDF314 KB
EU Declaration of conformity for EHN010
PDF270 KB
EU Declaration of conformity for EHN010
PDF348 KB -
RoHS report
REACH-declaration 2023-10-20 (english)
PDF32 KB
RoHS-declaration 2023-10-20 (english)
PDF33 KB -
PEP document
Product environmental profile for EHN010
PDF236 KB
