    EAN
    3250612256273
    Packaging
    1 Piece
    • Ceiling Mount Install­a­tion

    Motion detector highbay 360° surface mounted NO contact detection height 8m EER518

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Motion detector highbay 360° surface mounted NO contact detection height 8m

    EER518

    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Detec­tion
    • Detec­tion angle
      360 - 360 °
    • Type of sensor
      Move­ment detector
    • Detec­tion angle hori­zontal
      360 - 360
    Settings
    • Time delay
      1 Min - 1 h
    • Minimal duty cycle
      2 s
    • Response bright­ness adjustable
      Yes
    • Response sens­it­ivity adjustable
      Yes
    • Switch on delay time
      0
    Lighting
    • Response bright­ness adjustable
      5- 2000 lx
    • LED lamp power
      400 W
    • Photo­cell sens­it­ivity
      5 - 2000 lx
    Connec­tion
    • Connect­or/plug type
      Plug-in terminal
    Frequency
    • Frequency
      50 - 60 Hz
    Dimen­sions
    • Built-in depth
      78 mm
    • Recom­mended install­a­tion height
      6 - 9 m
    • Install­a­tion height
      6- 10 m
    Use condi­tions
    • Oper­ating temper­ature
      -5 - 45 °C
    Mater­ials
    • Material
      Plastic
    • Surface finish
      Matt
    Safety
    • Ingress Protec­tion (IP) class
      IP41
    Install­a­tion, mounting
    • Mounting on
      Surface mounting
    • Suit­able for outdoor usage
      No
    • Ceiling mounting possible
      Yes
    Power supply
    • Supply voltage
      230 V +10%/-15%
    Reach distance
    • Max. trans­mis­sion range front­ally
      7 m
    • Max. trans­mis­sion range side­ways
      11 m

    Environmental value

    We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    REACH declaration EER518
    PDF
    Hager RoHS report EER518
    PDF
    PEP document en-GB 2022-06-07
    PDF
    205,85 kB

    Downloads

    • Product image

      Image EER518 | Hager Australia

      Product Image EER518

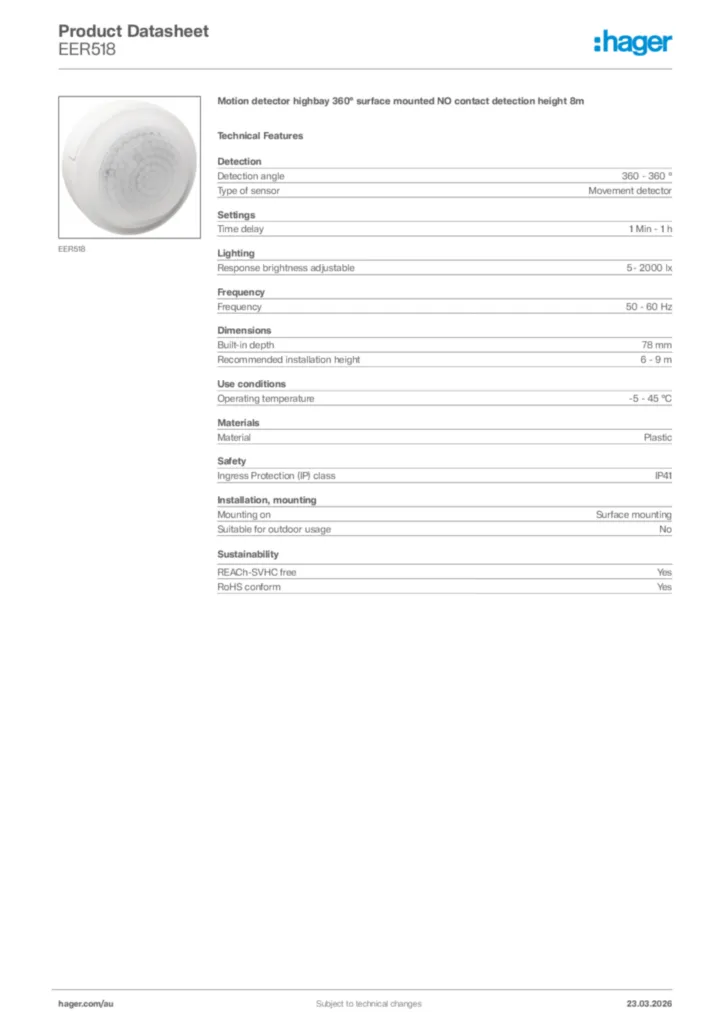

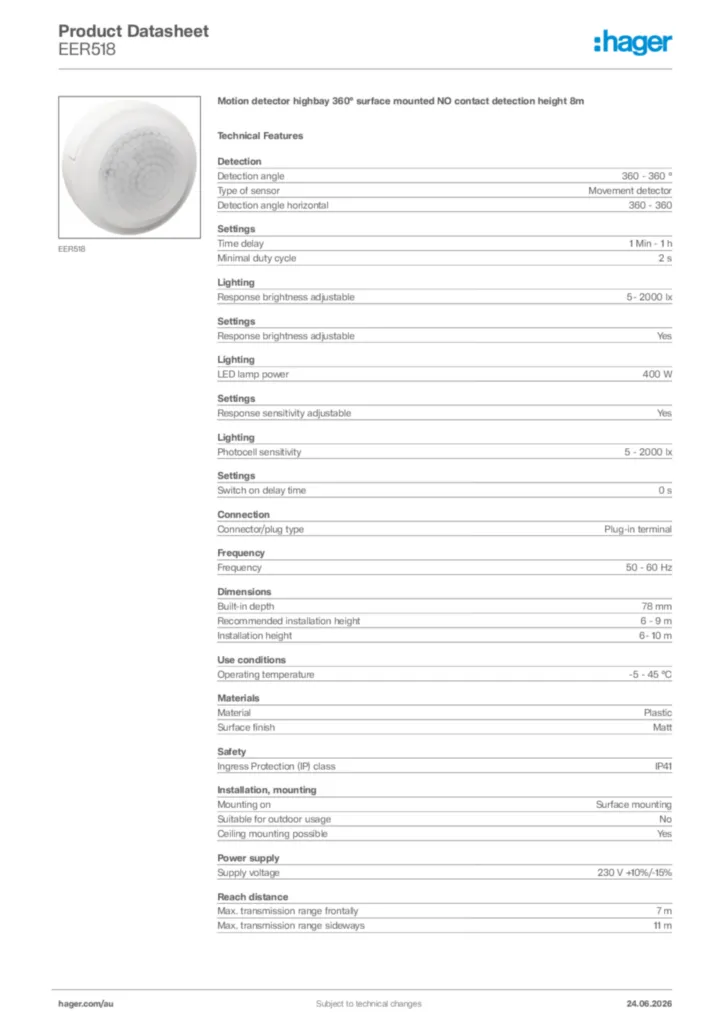

    • Product datasheet

      Image Hager Product data sheet EER518 | Hager Australia

      Hager Product data sheet EER518

      Motion detector highbay 360° surface mounted NO contact detection height 8m

      PDF

    • Installation manual

      Image Manual for EER518 - Motion detector highbay 360° surface-mounted (EN-IT, 2022-03) | Hager Australia

      Manual for EER518 - Motion detector highbay 360° surface-mounted (EN-IT, 2022-03)

      Installation manual en-GB, it-IT 2022-03-15

      PDF
      1,07 MB

    • Brochure

      Image Brochure en-AU 2023-09-15 | Hager Australia

      Brochure en-AU 2023-09-15

      PDF
      5,45 MB

    • Declaration of conformity

      Image EU Declaration of Conformity | Hager Australia

      EU Declaration of Conformity

      Declaration of conformity en-GB, fr-FR 2024-11-26

      PDF
      114,89 kB
