Movement detector 360° flush mounted with normally open contact EE805A

EAN

3250612258758

Packaging

1 Piece

Technical properties
Documentations
More products

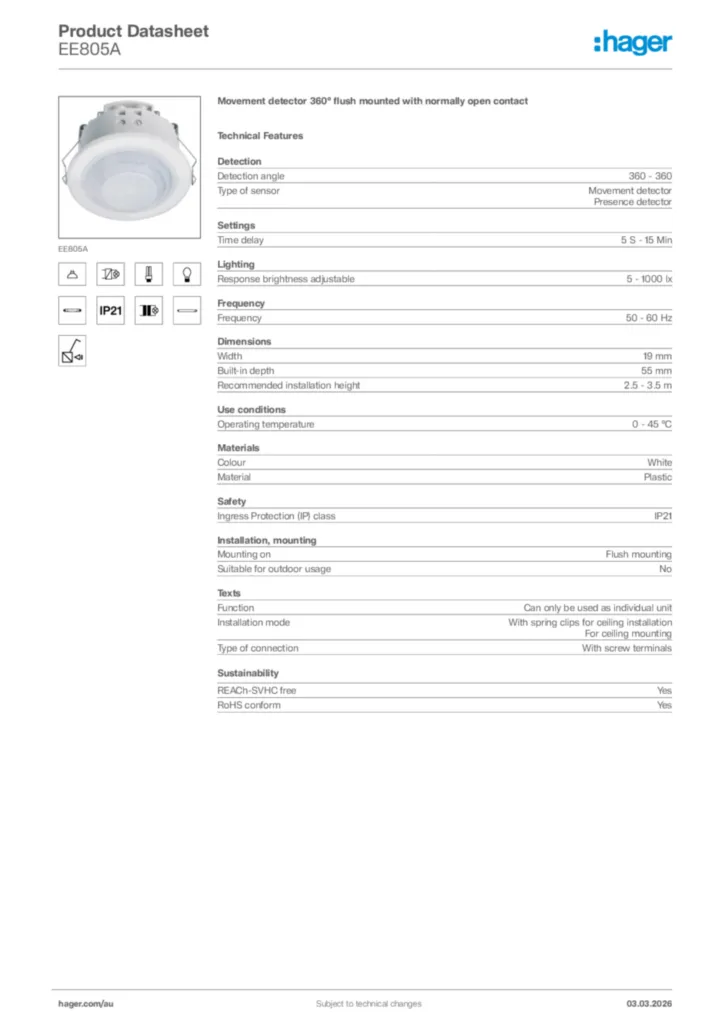

Download the data sheet

Technical properties

Function

can only be used as individual unit

Rated operational voltage Ue

230 V
Frequency

50/60 Hz

Operating voltage

230 V~ +10%/-15%

Switching current (ohmic)

max. 10 A

Height of installed product

15.5 mm
Dimensions (Ø x H)

90 x 61 mm
Width of installed product

19 mm
Installation opening Ø

75 mm
Assembling height

61 mm
Recommended installation height

2.5…3.5 m
Installation wall thickness

5…20 mm

Halogen switching capacity 230V

0 / 2300 W
Max. power with fluo uncompensated lamps

1000 VA
Power consumption (standby)

0.3 W
Incandescent bulb power

0 / 2300 W
Maximum power per output for low-voltage halogen lamps with conv. transformer

1500 W
Conventional transformers

max. 1500 VA
Electronic transformers

max. 1500 W

Supply voltage

230 V +10% / -15%

Detection angle

360 °
Detection field Ø, on floor

≈ 6 m

Colour

white

Response brightness, adjustable

≈ 5…1000 lx
Brightness measurement range

5 / 1000 Lux
Fluorescent lamps with electronical ballast (EB)

8 x 58 W

Energy-saving lamps

10 x 20 W
Fluorescent lamps uncompensated

1000 W

230V LED lamps

20 x 20 W

12 V halogen lamps

1500 VA

Maximum Mounting Height

4 m
Mounting type

flush-mounted
Installation mode

for ceiling mounting ; with spring clips for ceiling installation

Conductor cross-section

1…2.5 mm²
Type of contacts

Normally open contact (NO)
Type of connection

with plug-in terminals

Response value sensitivity adjustable

No
Delay time, adjustable

5 s…30 mn
Setting

with potentiometers for setting the response brightness and delay time

Component

with fitting material

Potential-free

not potential-free

Protection class

isol.class II

Operating temperature

-5…45 °C
Storage/transport temperature

-25…70 °C
Energy-saving

energy saving by means of presence and brightness-dependent ON and OFF switching of light ; low intrinsic energy requirement

Application, usage

Motion detector
Main design line

Motion detectors

Downloads

Product image

Product Image EE805A
Instruction manual

Manual for EE804A-EE805A Presence and motion detector (en, 2017-09)

PDF

936 KB
User brochure

Motion and Presence Detectors Brochure

PDF

268 KB
Declaration of conformity

Declaration

PDF

126 KB
PEP document

Product environmental profile for EE805A

PDF

439 KB
