Movement detector 360° surface mounted with normally open contact EE804A
EAN
3250612258765
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Bus systemWithout
Functions
-
Functioncan only be used as individual unit
Main electrical features
-
Rated operational voltage Ue230 V
-
Frequency50/60 Hz
Dimensions
-
Height of installed product50 mm
-
Dimensions (Ø x H)90 x 61 mm
-
Width of installed product105.5 mm
-
Recommended installation height2.5…3.5 m
Power supply
-
Supply voltage230 V +10% / -15%
Detection
-
Detection angle360 °
-
Detection angle360 °
-
Detection field Ø, on floor≈ 6 m
-
Frontal detecting distance6 m
-
Side detecting distance6 m
Materials
-
Colourwhite
-
Materialplastic
Lighting control
-
Response brightness, adjustable≈ 5…1000 lx
-
Brightness measurement range5 / 1000 Lux
LED control
-
230V LED lamps20 x 20 W
Installation, mounting
-
Maximum Mounting Height4 m
-
Mounting typesurface-mounted
-
Installation modefor ceiling mounting ; Installation possible on flush-mounted box
Connection
-
Number of contacts1
-
Type of connectionwith screw terminals
Settings
-
Response value sensitivity adjustableNo
-
Delay time, adjustable5 s…30 mn
-
Settingwith potentiometers for setting the response brightness and delay time without dismantling
Scope of delivery
-
Componentwith fitting material
Equipment
-
Angle of horizontal detection360 °
Safety
-
Protection classisol.class II
Use conditions
-
Operating temperature-5…45 °C
-
Storage/transport temperature-25…70 °C
-
Energy-savingenergy saving by means of presence and brightness-dependent ON and OFF switching of light ; low intrinsic energy requirement
Identification
-
Application, usageMotion detector
-
Main design lineMotion detectors
Downloads
-
Product image
-

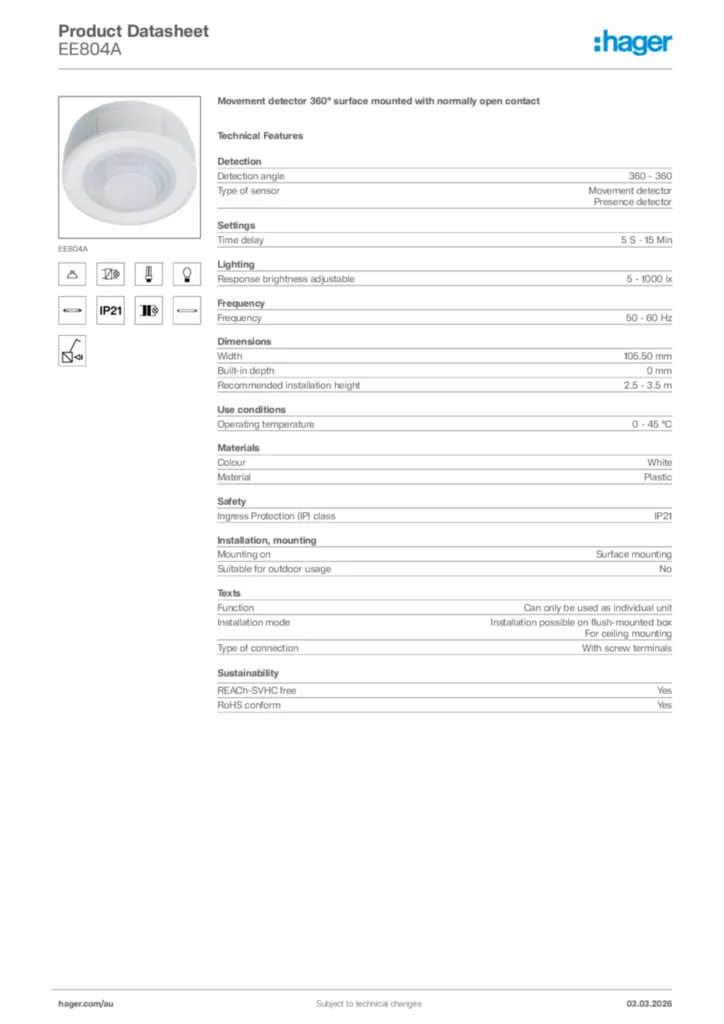

Instruction manual
