Motion detector 360° white EE840
EAN
3250612258406
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Bus systemWithout
Functions
-
Functioncan be used as a single unit, main device or extension unit
Main electrical features
-
Frequency50/60 Hz
Dimensions
-
Height of installed product2.5 m
-
Recommended installation height2.5 m
Power supply
-
Supply voltage230 V +10% / -15%
Detection
-
Detection angle360 °
-
Detection angle360 °
-
Detection field Ø, on floor≈ 12 m
-
Frontal detecting distance12 m
-
Side detecting distance6 m
Materials
-
Colourwhite
-
RAL colourRAL 9010 - Pure white
-
Materialplastic
Lighting control
-
Response brightness, adjustable≈ 5…1000 lx
-
Brightness measurement range5 / 1000 Lux
LED control
-
230V LED lamps20 x 20 W
-
LEDwith LED detection and mode indicator
Installation, mounting
-
Maximum Mounting Height2.5 m
-
Installation modefor wall and ceiling mounting, corner installation with adapter
Connection
-
Type of connectionwith screw terminals
Settings
-
Response value sensitivity adjustableYes
-
Response sensitivity, settable20…100 %
-
Delay time, adjustable5 s…15 mn
-
Settingwith potentiometers for fine adjustment of the response brightness, sensitivity and delay time
Scope of delivery
-
Componentwith fitting material
Equipment
-
Angle of horizontal detection360 °
-
Slewingvertically slewing
Safety
-
REACH conformYes
-
RoHS conformYes
Use conditions
-
Operating temperature-20…55 °C
-
Energy-savinglow intrinsic energy requirement ; energy saving by means of presence and brightness-dependent ON and OFF switching of light
Downloads
-
Product image
-
Instruction manual
Instruction manuals for EE840
PDF1 MB -
User brochure
Weatherproof range brochure
PDF1004 KB -

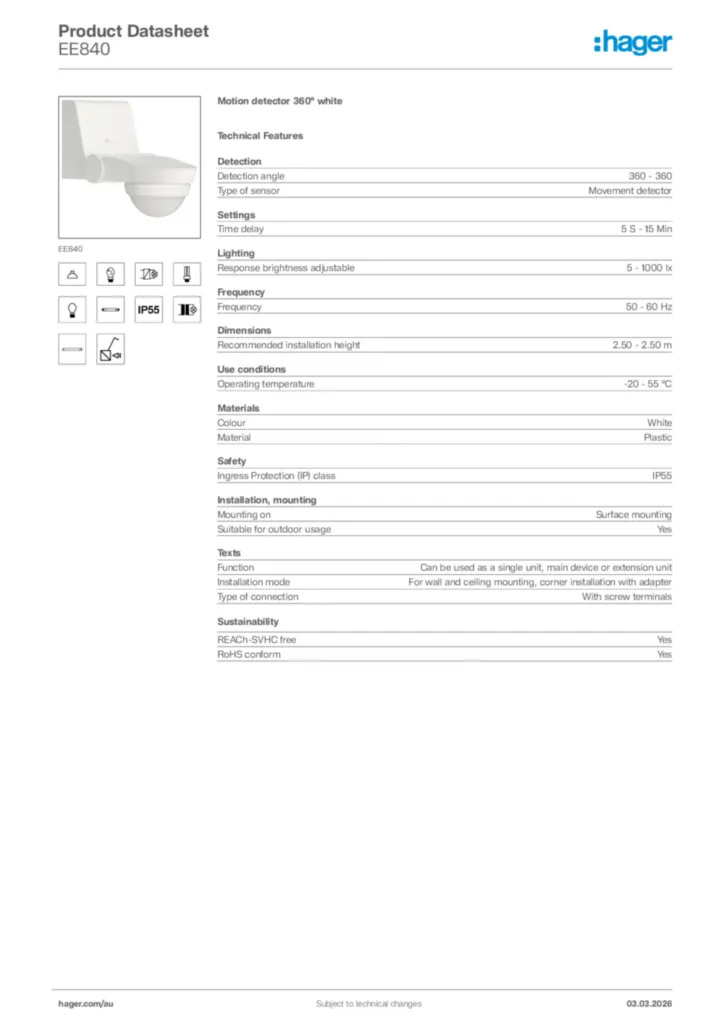

Product data sheet
