Current Transformer with RJ45 output BGUK 3-Phase 800A/330mV Class 1 pitch 70mm EC80800CT
EAN
3250617121231
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Specific identificaton attributes for Protection
-
Filter Type product3-phase current transformer replacement
Functions
-
Accuracy class1
Dimensions
-
Height124 mm
-
Width215 mm
-
Depth54 mm
-
Height of opening50 mm
-
Width of opening50 mm
Connectivity
-
Type of connectionPlug-in connection
Frequency
-
Frequency50 - 50 Hz
Voltage
-
Rated insulation voltage Ui3000 V
Use conditions
-
Operating temperature-25 - 50 °C
-
Storage/transport temperature-40 - 85 °C
Electric current
-
Max. intensity of primary800 A
Installation, mounting
-
Mounting onBusbar, Cable
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

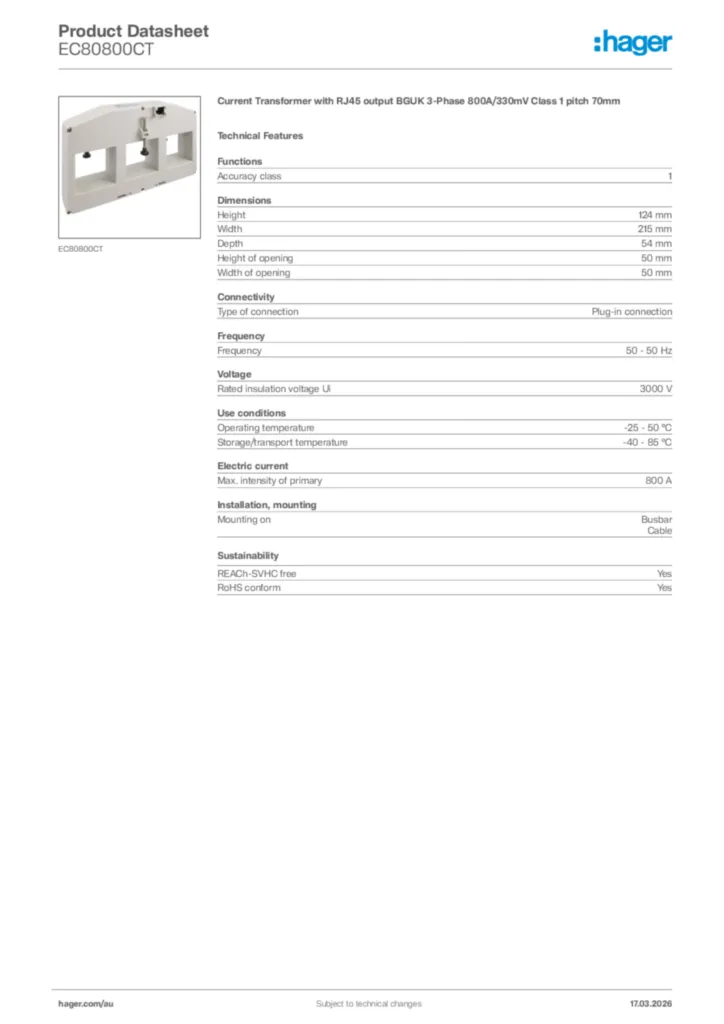

Hager Product data sheet EC80800CT
Current Transformer with RJ45 output BGUK 3-Phase 800A/330mV Class 1 pitch 70mm
PDF -
Installation manual
Installation manual en-GB 2018-08-24
PDF2,34 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-08-23
PDF142,96 kB
Declaration
Declaration of conformity International 2022-08-23
PDF132,32 kB
Declaration
Declaration of conformity International 2022-06-07
PDF446,57 kB
