Bar/Cable-through Current Transformer BG 613 800/5A 5VA Class 1 SRD08005
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
DIN rail adapter 1 products available
Technical properties
Specific identificaton attributes for Protection
-
Filter Type productPlug-in current transformer
Functions
-
Accuracy class1
Power
-
Power5 VA
-
Total power loss under IN6 W
Dimensions
-
Diameter of opening45 mm
-
Height108 mm
-
Width85 mm
-
Depth30 mm
-
Height of opening45 mm
-
Width of opening65 mm
Connectivity
-
Type of connectionWire connection
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated power-frequency withstand voltage (r.m.s.)3000 V
-
Max. operating voltage720 V
Use conditions
-
Operating temperature-40 - 40 °C
-
Storage/transport temperature-40 - 40 °C
Connection
-
Cross-section flexible conductor1.5 - 6 mm²
-
Cross-section rigid conductor1.5 - 6 mm²
Safety
-
Ingress Protection (IP) classIP10
-
Insulating classE
Electric current
-
Rated primary current (Ipr)800 A
-
Rated secondary current (Isr)5 A
-
Rated current800 A
-
Rated continuous thermal current1,2*Ipr
-
Rated short-time thermal current (Ith/1s)60*Ipr
-
Rated dynamic current2.5*Ith
-
Over voltage limiting factorFS 5
Installation, mounting
-
Mounting onDIN rail, Mounting plate
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

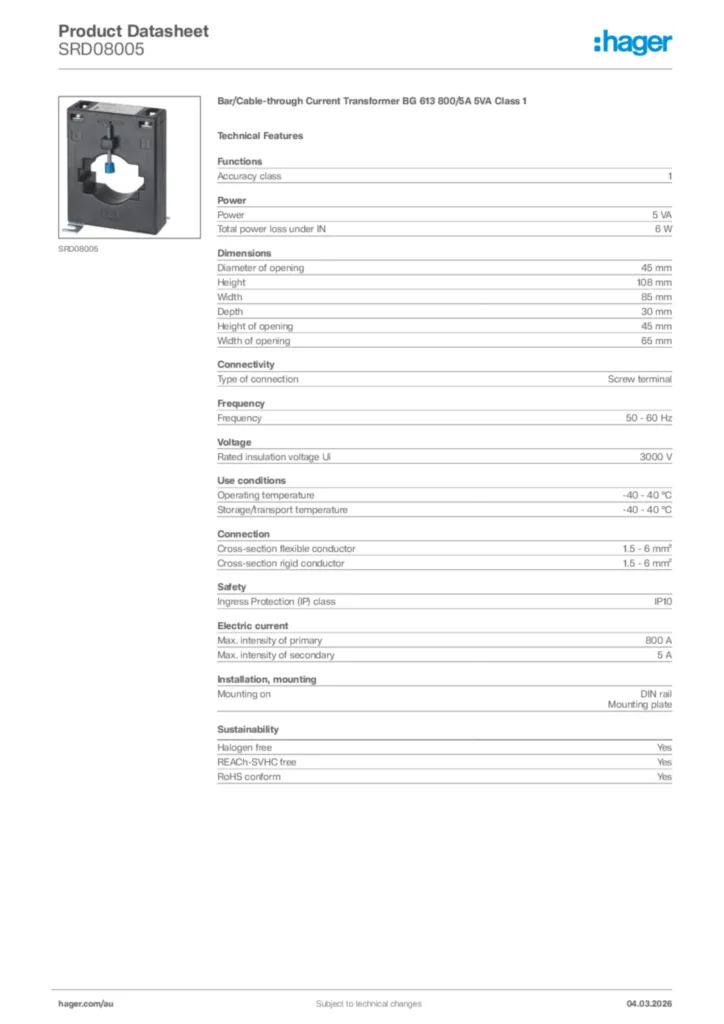

Hager Product data sheet SRD08005
