    Flush mounted radio output 3A 230V + 2 inputs mains powered TRM693AU

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Flush mounted radio output 3A 230V + 2 inputs mains powered

    TRM693AU

    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Technical characteristics

    Connectivity
    • Radio protocol
      KNX Radio
    • Receiver category
      2
    • With bus system KNX
      No
    • With bus system KNX radio
      Yes
    Dimen­sions
    • Height
      40 mm
    • Width
      40 mm
    • Depth
      20 mm
    • Built-in depth
      40 mm
    Mater­ials
    • Colour
      Light grey
    Equip­ment
    • Radio frequency bidirec­tional
      Yes
    • With switch for manual switch
      Yes
    Elec­tric current
    • Rated current
      3 A
    Frequency
    • Frequency
      50 - 50 Hz
    • Radio recep­tion frequency
      433 - 433 MHz
    Power
    • Output power
      690 W
    • 230 V incan­des­cent and halogen lamp
      500 W
    Voltage
    • Oper­ating voltage
      230 - 230 V
    • Rated oper­a­tional voltage Ue
      230 - 230 V
    • System supply voltage
      230 V AC
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    Use condi­tions
    • Oper­ating temper­ature
      -10 - 50 °C
    Connec­tion
    • Cross-sec­tion rigid conductor
      0.5 - 2.5 mm²
    • Cross-sec­tion flex­ible conductor
      0.5 - 1.5 mm²
    Texts
    • Func­tion
      Reset func­tion (to factory setting)
    • Install­a­tion mode
      For install­a­tion behind flush-­mounted inserts
    • Type of connec­tion
      With screw-in lift terminals

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Hager REACH declaration TRM693AU
    PDF
    Hager RoHS report TRM693AU
    PDF

    Downloads

    • Image TRM693AU | Hager

      Product Image TRM693AU

    • Product datasheet

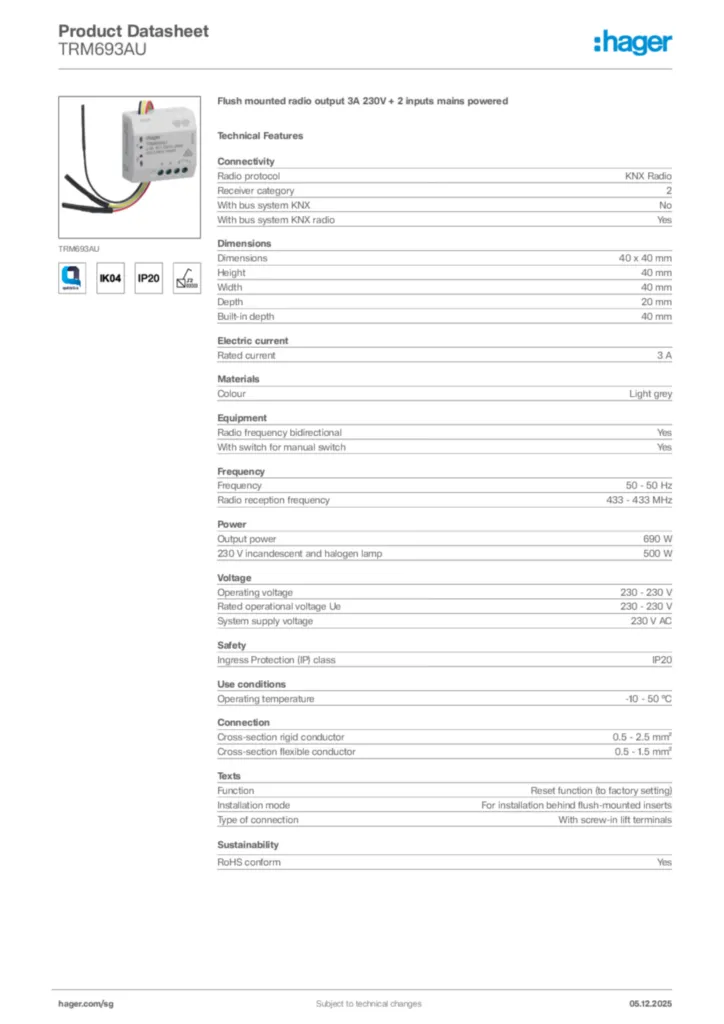

      Image Hager Product data sheet TRM693AU | Hager

      Hager Product data sheet TRM693AU

      Flush mounted radio output 3A 230V + 2 inputs mains powered

      PDF

    • Installation manual

      Image Installation manual en-GB 2017-09-28 | Hager

      Installation manual en-GB 2017-09-28

      PDF
      9,84 MB

    • Declaration of conformity

      Image * | Hager

      *

      Declaration of conformity International 2022-06-30

      PDF
      126,71 kB
