Module 1 flush mounted output 3A for shutters or blinds + 2 inputs, KNX radio TRM692G
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Settings
-
Supported configuration modequicklink
Connectivity
-
With bus system KNX radioYes
Installation, mounting
-
Mounting onFlush mounting
Equipment
-
With switch for manual switchYes
Materials
-
ColourLight grey
Electric current
-
Max. switching current3 A
Use conditions
-
Operating temperature-10 - 50 °C
Connection
-
Cross-section flexible conductor0.5 - 1.5 mm²
-
Cross-section rigid conductor0.5 - 2.5 mm²
Capacity
-
Number of modules0
Texts
-
FunctionEasy additional functions: +6 scenes, Repeat function can be activated to increase the radio range, Reset function (to factory setting)
-
Type of connectionWith screw-in lift terminals
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

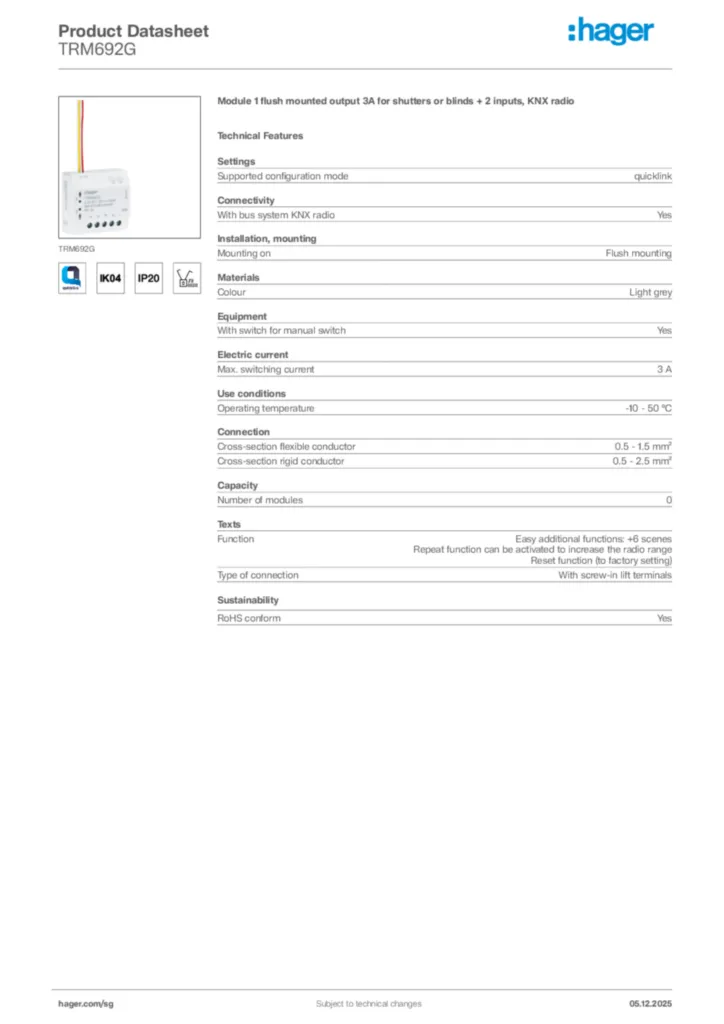

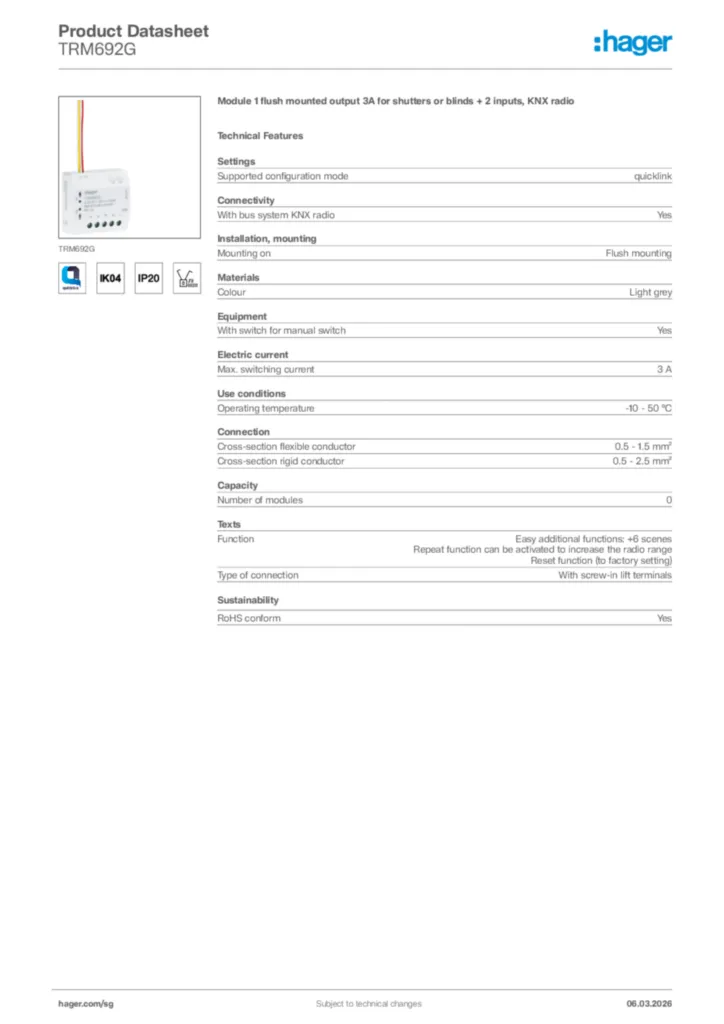

Hager Product data sheet TRM692G
Module 1 flush mounted output 3A for shutters or blinds + 2 inputs, KNX radio
PDF -
Installation manual
Installation manual en-GB, es-ES, pl-PL, pt-PT 2016-03-03
PDF11,15 MB -
Product attachment
Configuration guide quicklink (DE-FR-IT-NL, 2016-02)
Product attachment International 2020-01-01
PDF1,18 MB -
KNX product database
KNX product database en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pl-PL, pt-PT, sv-SE 2020-01-01
KNXPROD486,73 kB -
Application Guide
Application description ETS-Easy TRM692G
Application Guide en-GB, pl-PL 2015-02-12
PDF6,37 MB -
Declaration of conformity
Declaration of conformity International 2024-01-18
PDF131,29 kB
