    • TRC301B
    EAN-Nr.
    3250615989116
    Packaging
    1 piece
    • KNX Radio - quick­link
    • Binary inputs
    • See more

    Radio Window contact battery-powered, KNX, Quicklink, White TRC301B

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Radio Window contact battery-powered, KNX, Quicklink, White

    TRC301B

    • Technical characteristics
    • Documentations
    • More products
    Download the sheet

    Technical characteristics

    Archi­tec­ture
    • Bus system
      Radio frequent
    Settings
    • Supported config­ur­a­tion mode
      ETS, easy, quick­link
    Elec­tric current
    • Number of entry circuits
      2
    Connectivity
    • With bus system KNX radio
      Yes
    Equip­ment
    • External signal voltage neces­sary
      No
    • Radio frequency bidirec­tional
      No
    • With battery
      Yes
    • With HVAC control
      No
    Frequency
    • Frequency trans­mis­sion
      868 - 868 MHz
    Install­a­tion, mounting
    • Mounting on
      Surface mounting
    Internal use only
    • Number of half modules of 17,5 mm
      0
    Lighting
    • LED controlling
      Yes
    Mater­ials
    • Colour
      White
    • RAL code
      9010
    Safety
    • Ingress Protec­tion (IP) class
      IP31
    Use condi­tions
    • Oper­ating temper­ature
      0 - 50 °C
    Voltage
    • Input voltage
      3 - 3 V
    • Type voltage supply
      DC
    Dimen­sions
    • Height
      26 mm
    • Depth
      30 mm
    Texts
    • Install­a­tion mode
      With adapters for magnet height compens­a­tion
    • Type of connec­tion
      With addi­tional screw terminals for wired reed contacts

    Downloads

    • Image TRC301B | Hager

      Product Image TRC301B

    • Product datasheet

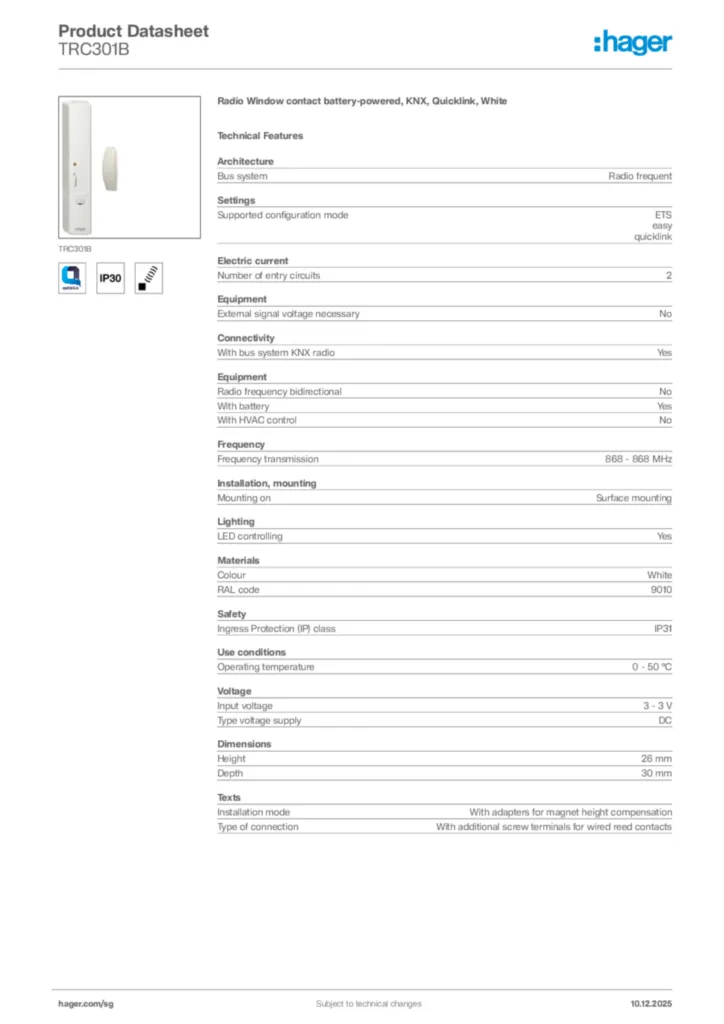

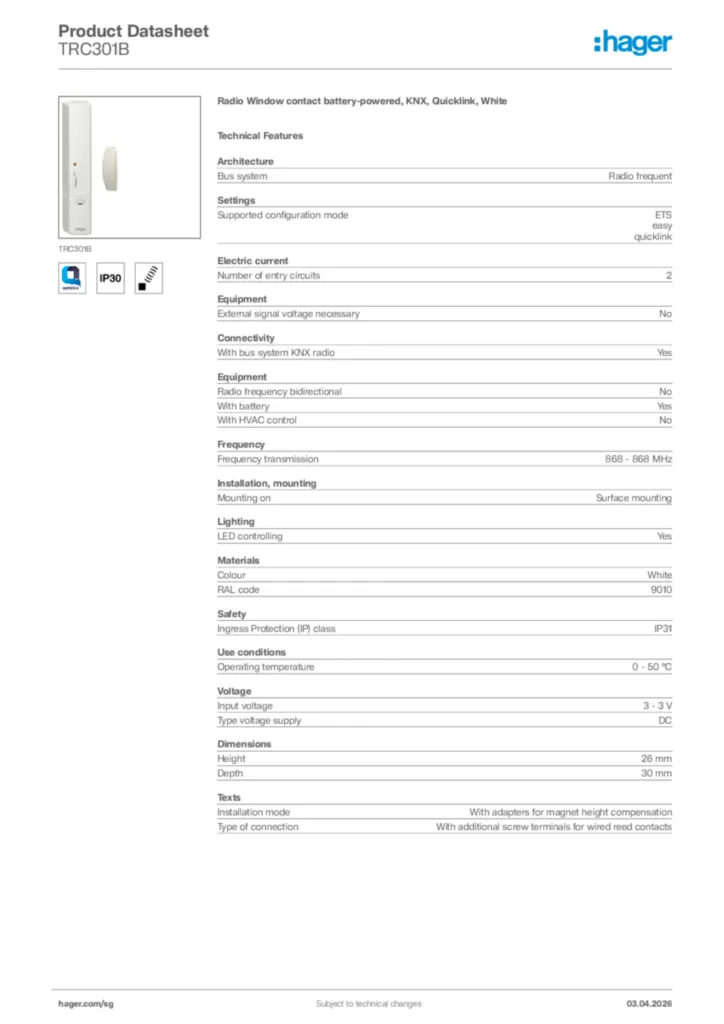

      Image Hager Product data sheet TRC301B | Hager

      Hager Product data sheet TRC301B

      Radio Window contact battery-powered, KNX, Quicklink, White

      PDF

    • Installation manual

      Image Installation manual en-GB, fr-FR, de-DE, it-IT, pl-PL 2010-09-28 | Hager

      Installation manual en-GB, fr-FR, de-DE, it-IT, pl-PL 2010-09-28

      PDF
      2,05 MB

    • Product attachment

      Image Configuration guide quicklink (DE-FR-IT-NL, 2016-02) | Hager

      Configuration guide quicklink (DE-FR-IT-NL, 2016-02)

      Product attachment International 2020-01-01

      PDF
      1,18 MB

    • KNX product database

      Image Logiciel d'application ETS du TRC301B | Hager

      Logiciel d'application ETS du TRC301B

      KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL, pt-PT 2020-01-01

      KNXPROD
      4,72 MB
      Image Logiciel d'application ETS du TRC301B | Hager

      Logiciel d'application ETS du TRC301B

      KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL, pt-PT 2020-01-01

      VD5
      5,62 MB

    • Application Guide

      Image description d'application TRC301B | Hager

      description d'application TRC301B

      Application Guide en-GB, pl-PL 2020-01-01

      PDF
      859,41 kB

    • Function description

      Image PD_TRC301B_TX100_GB | Hager

      PD_TRC301B_TX100_GB

      Function description en-GB 2012-03-30

      PDF
      2,53 MB
