    • TRB302B
    EAN-Nr.
    3250615989284
    Packaging
    1 piece
    • KNX Radio - quick­link
    • Binary inputs
    • See more

    Module 2 inputs flush mounted 230V KNX QL TRB302B

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Module 2 inputs flush mounted 230V KNX QL

    TRB302B

    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Technical characteristics

    Archi­tec­ture
    • Bus system
      Radio frequent
    Settings
    • Supported config­ur­a­tion mode
      ETS, easy
    Elec­tric current
    • Number of entry circuits
      2
    Connectivity
    • With bus system KNX radio
      Yes
    Equip­ment
    • External signal voltage neces­sary
      No
    • Radio frequency bidirec­tional
      No
    • With battery
      No
    • With HVAC control
      No
    Frequency
    • Frequency trans­mis­sion
      868 - 868 MHz
    Install­a­tion, mounting
    • Mounting on
      Flush mounting
    Internal use only
    • Number of half modules of 17,5 mm
      0
    Lighting
    • LED controlling
      No
    Mater­ials
    • Material
      Plastic
    • Colour
      Light grey
    • RAL code
      7035
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    Use condi­tions
    • Oper­ating temper­ature
      -5 - 45 °C
    Cable
    • Cable length
      0,20 m
    Voltage
    • Input voltage
      5 - 5 V
    • Type voltage supply
      AC
    Texts
    • Install­a­tion mode
      For install­a­tion behind flush-­mounted inserts
    • Type of connec­tion
      With screw-in lift terminals

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Hager REACH declaration TRB302B
    PDF
    RoHS report TRB302B
    PDF

    Downloads

    • Image TRB302B | Hager

      Product Image TRB302B

    • Product datasheet

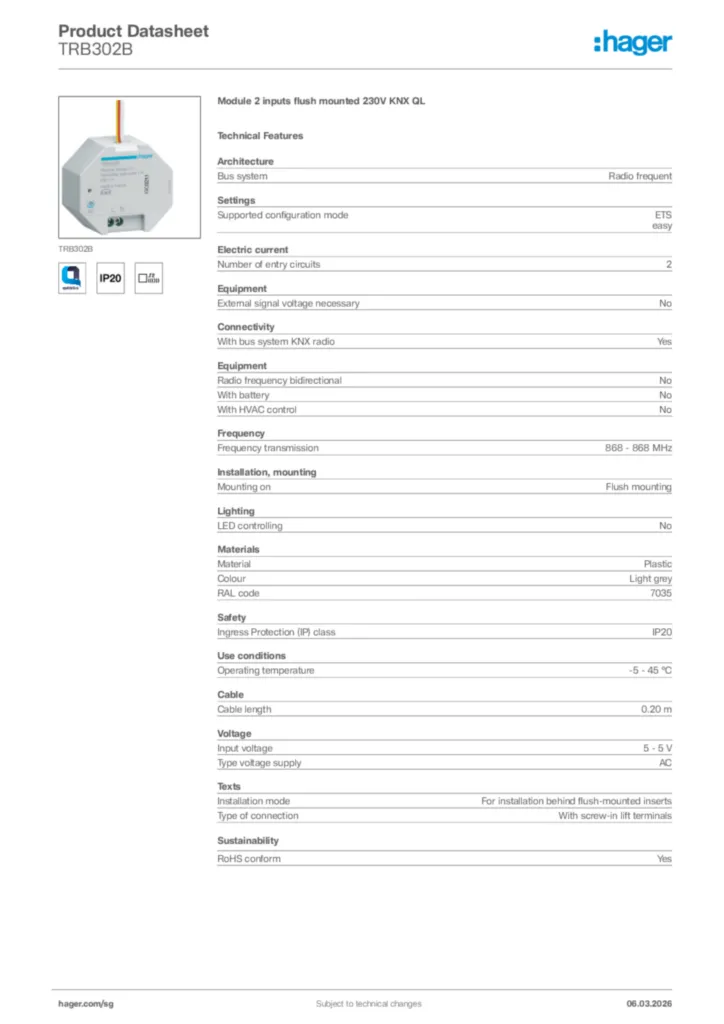

      Image Hager Product data sheet TRB302B | Hager

      Hager Product data sheet TRB302B

      Module 2 inputs flush mounted 230V KNX QL

      PDF

    • Installation manual

      Image Installation manual en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pl-PL, pt-PT, sv-SE 2013-05-13 | Hager

      Installation manual en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pl-PL, pt-PT, sv-SE 2013-05-13

      PDF
      3,17 MB

    • Product attachment

      Image Configuration guide quicklink (DE-FR-IT-NL, 2016-02) | Hager

      Configuration guide quicklink (DE-FR-IT-NL, 2016-02)

      Product attachment International 2020-01-01

      PDF
      1,18 MB
