Cartridge L-N Uc 350V In 20kA Imax 40kA SPL040
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 4 products available
Technical characteristics
Capacity
-
Number of modules1
Voltage
-
Rated operational voltage Ue230 - 230 V
-
Continuous operating voltage Uc according to IEC 61643-1350 V
-
Voltage protection level Up according to IEC 61643-11,50 kV
-
Voltage level Up L-N/PEN IEC 61643-111500 V
Electric current
-
Nominal discharge current In 8 - 20 µs L-N(PEN)/N-PE IEC 6164320 kA
-
Max. discharge (Imax) L-N(PEN)/ N-PE40 kA
Dimensions
-
Height53,5 mm
-
Width18 mm
-
Depth45,5 mm
Use conditions
-
Operating temperature-40 - 85 °C
Network configuration
-
Network typeTN-S, TT
Equipment
-
With remote signalling contactNo
Standards
-
Requirement class IEC 61643T2
Frequency
-
Frequency50 - 60 Hz
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

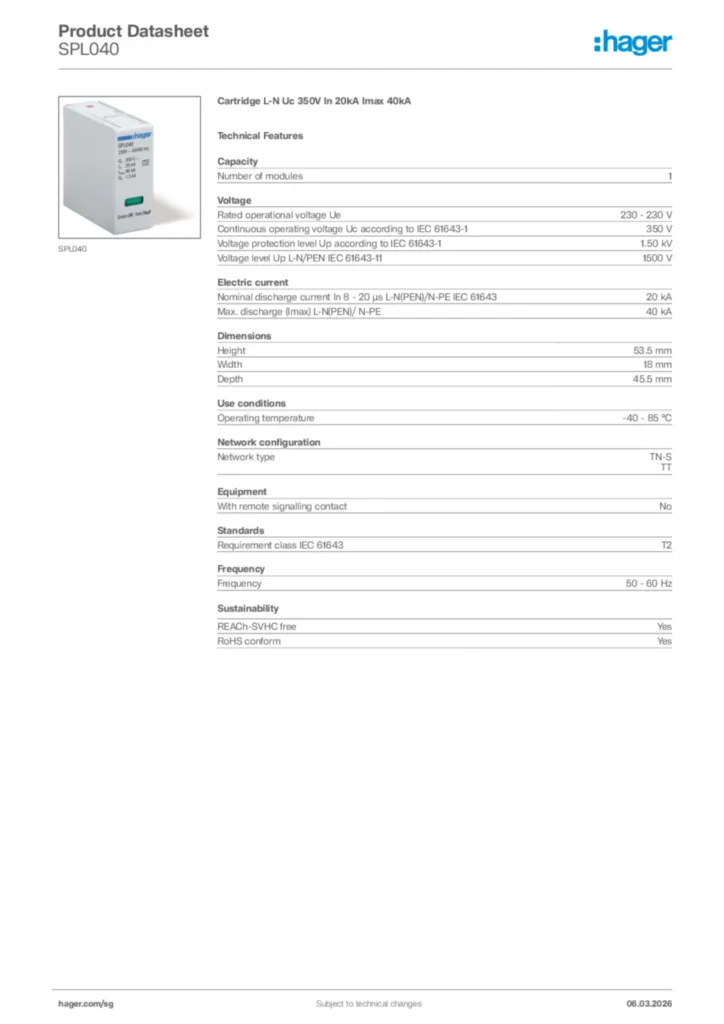

Hager Product data sheet SPL040
Cartridge L-N Uc 350V In 20kA Imax 40kA
PDF -
Installation manual
Installation manual zh-CN, en-GB 2020-01-01
PDF14,68 MB -
Brochure
SPD catalogue
Brochure en-GB 2025-08-25
PDF479,65 kB -
Catalogue
Technical Specifications SG
Catalogue en-GB 2026-01-27
PDF3,27 MB
