    • SPL465
    EAN-Nr.
    3250615515803
    Packaging
    1 piece
    • Surge Protec­tion Device (SPD)

    SPD 4P T2 TNS/TT Uc 350V In 35kA Imax 65kA SPL465

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    SPD 4P T2 TNS/TT Uc 350V In 35kA Imax 65kA

    SPL465

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Complete your system

    Optional accessories

    • Accessor­ies/s­pare parts for surge protec­tion power supply systems 1 products available

    Complete your system

    • Accessor­ies/s­pare parts for surge protec­tion power supply systems
    • SPL065N

      Cartridge N-PE In 35kA Imax 65kA
      €0.00  / *

    Technical characteristics

    Capa­city
    • Number of modules
      4
    Voltage
    • Rated oper­a­tional voltage Ue
      230 - 400 V
    • Continuous oper­ating voltage Uc according to IEC 61643-1
      350 V
    • Voltage protec­tion level Up according to IEC 61643-1
      1,90 kV
    • Voltage protec­tion level Up N-PE IEC 61643-11
      1500 V
    • Voltage protec­tion level Up L-N (PEN)
      1,9 kV
    Elec­tric current
    • Max. over­cur­rent protec­tion device, parallel connec­tion (fuse)
      125 A
    • Max. discharge current (Imax)
      65 kA
    • Max. discharge current (Imax) L-N (PEN)
      65 kA
    • Max. discharge current (Imax) N-PE
      65 kA
    • Nominal discharge current In
      35 kA
    • Nominal discharge current In 8 - 20 µs L-N (PEN)
      35 kA
    • Nominal discharge current In 8 - 20 µs N-PE
      35 kA
    • Follow current inter­rupting rating
      0,10 kA
    • Residual current Ipe
      ≤ 0.5 mA
    Dimen­sions
    • Height
      90 mm
    • Width
      72 mm
    • Depth
      66,60 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    • Protec­tion class
      Isol­a­tion class II
    • Mode of protec­tion
      L-N, N-PE
    Use condi­tions
    • Oper­ating temper­ature
      -40 - 85 °C
    • Air humidity protec­tion
      5 - 95%
    • Stor­age/trans­port temper­ature
      -40 - 85 °C
    • Degree of pollu­tion according to IEC 60664 / IEC 60947-2
      2
    • Max. alti­tude
      4000 m
    Mater­ials
    • Product colour
      Light grey
    • RAL code
      7035
    • Material
      Plastic
    Network config­ur­a­tion
    • Network type
      TN-S, TT
    • Network TN
      No
    • Network TN-C
      No
    • Network DC
      No
    • Network IT
      No
    • Network TT
      Yes
    • Network TN-C-S
      No
    • Network TN-S
      Yes
    Equip­ment
    • With remote signalling contact
      No
    Connec­tion
    • Cross-sec­tion of input and output with screws, for flex­ible conductors
      1,5 - 25 mm²
    • Cross-sec­tion of input and output with screws, for massive conductors
      1,5 - 35 mm²
    • Cross-sec­tion for rigid conductor, for protective conductor
      1,5 - 35 mm²
    • Cross-sec­tion for flex­ible conductor, for protective conductor
      1,5 - 25 mm²
    • Cross-sec­tion flex­ible conductor
      1.5 - 25 mm²
    • Cross-sec­tion rigid conductor
      1.5 - 35 mm²
    • Number of connec­tions
      1
    Stand­ards
    • Require­ment class IEC 61643
      T2
    Frequency
    • Frequency
      50 - 60 Hz
    Install­a­tion, mounting
    • Nominal tight­ening torque
      2,50 - 2,50 Nm
    • Suit­able for indoor usage
      Yes
    Archi­tec­ture
    • Type of pole
      4P
    • Neutral posi­tion
      Left
    Config­ur­a­tion
    • With integ­rated protec­tion fuse
      No
    Connectivity
    • Mounting type
      DIN rail
    • Type of connec­tion
      Screw connec­tion
    Controls and indic­ators
    • With indic­ator lamp
      Yes
    Func­tions
    • Discon­nector indic­a­tion
      Optical
    • Suit­able for addi­tional system config­ur­a­tion
      No
    Fuse
    • Fuse char­ac­ter­istics
      gG
    Specific iden­ti­ficaton attrib­utes for Protec­tion
    • Filter Type product
      SPD

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    REACH declaration SPL465
    PDF
    RoHS report SPL465
    PDF
    PEP for 4P T2 TNS/TT Uc 350V In 10kA Imax 20kA
    PDF
    354,64 kB

    Downloads

    • Image SPL465 | Hager

      Product Image SPL465

    • Product datasheet

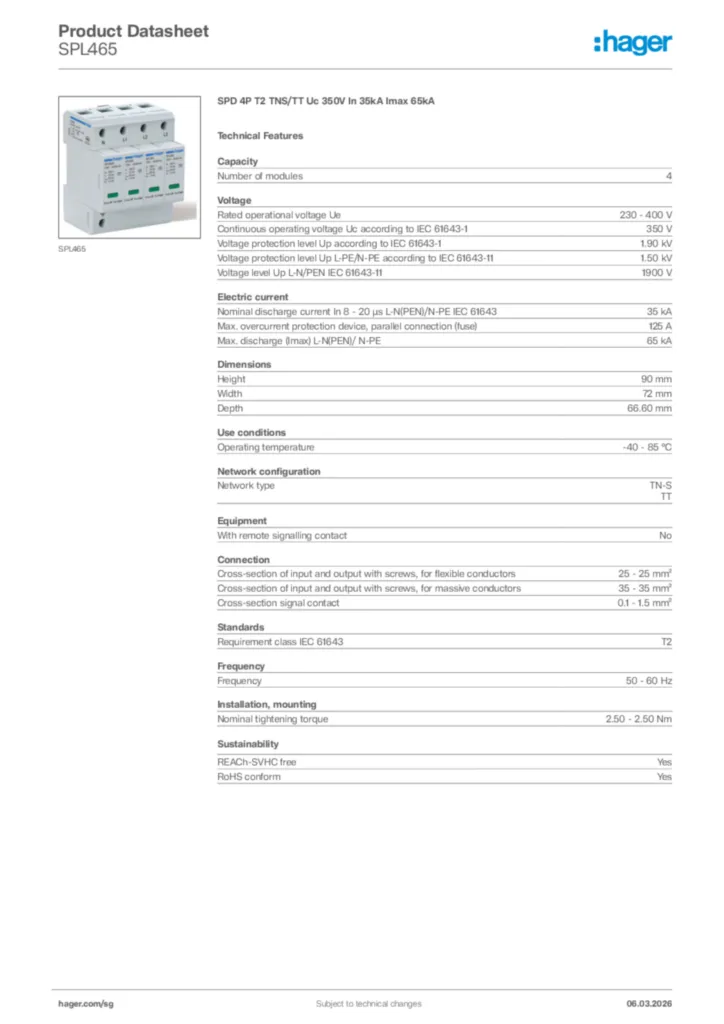

      Image Hager Product data sheet SPL465 | Hager
