    • SPL020
    EAN-Nr.
    3250615515636
    Packaging
    1 piece
    • Surge Protec­tion Device (SPD)

    Cartridge L-N Uc 350V In 10kA Imax 20kA SPL020

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Cartridge L-N Uc 350V In 10kA Imax 20kA

    SPL020

    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Technical characteristics

    Voltage
    • Rated oper­a­tional voltage Ue
      230 - 230 V
    • Over­voltage category according to IEC 60947-1
      3
    • Type voltage supply
      AC
    • Continuous oper­ating voltage Uc according to IEC 61643-1
      350 V
    • Nominal voltage
      240 - 415 V AC ± 10%
    Equip­ment
    • With remote signalling contact
      Yes
    Use condi­tions
    • Oper­ating temper­ature
      -40 - 85 °C
    • Max. alti­tude
      4000 m
    • Degree of pollu­tion according to IEC 60664 / IEC 60947-2
      2
    • Stor­age/trans­port temper­ature
      -40 - 80 °C
    Stand­ards
    • Require­ment class IEC 61643
      T2
    Frequency
    • Frequency
      50 - 60 Hz
    Dimen­sions
    • Height
      53,5 mm
    • Width
      18 mm
    • Depth
      45,5 mm
    Connec­tion
    • Cross-sec­tion flex­ible conductor
      1.5 - 25 mm²
    • Cross-sec­tion rigid conductor
      1.5 - 35 mm²
    Connectivity
    • Type of connec­tion
      Plug-in connec­tion
    • Mounting type
      On base element
    Elec­tric current
    • Short-­cir­cuit current rating (Isccr)
      25 kA
    • Max. discharge current (Imax)
      20 kA
    • Max. over­cur­rent protec­tion device, parallel connec­tion (fuse)
      40 A
    • Nominal discharge current In
      10 kA
    Func­tions
    • Discon­nector indic­a­tion
      Optical
    Install­a­tion, mounting
    • Suit­able for indoor usage
      Yes
    Safety
    • Mode of protec­tion
      L-N
    • Ingress Protec­tion (IP) class
      IP20
    Mater­ials
    • Material
      Plastic
    • Colour
      Light grey
    • RAL code
      7035
    Network config­ur­a­tion
    • Network type
      TN-S, TT

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    REACH declaration SPL020
    PDF
    RoHS report SPL020
    PDF

    Downloads

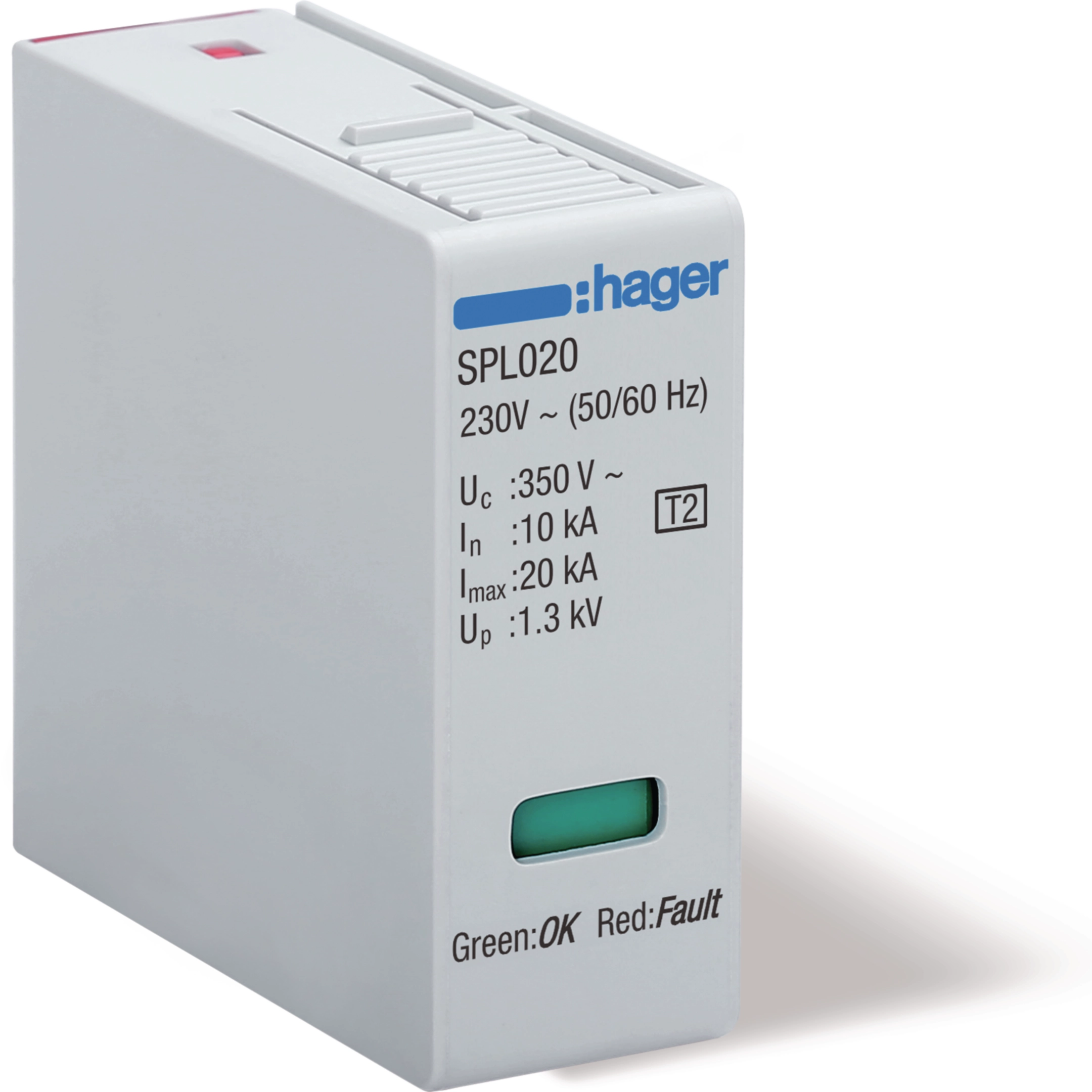

    • Image SPL020 | Hager

      Product Image SPL020

    • Product datasheet

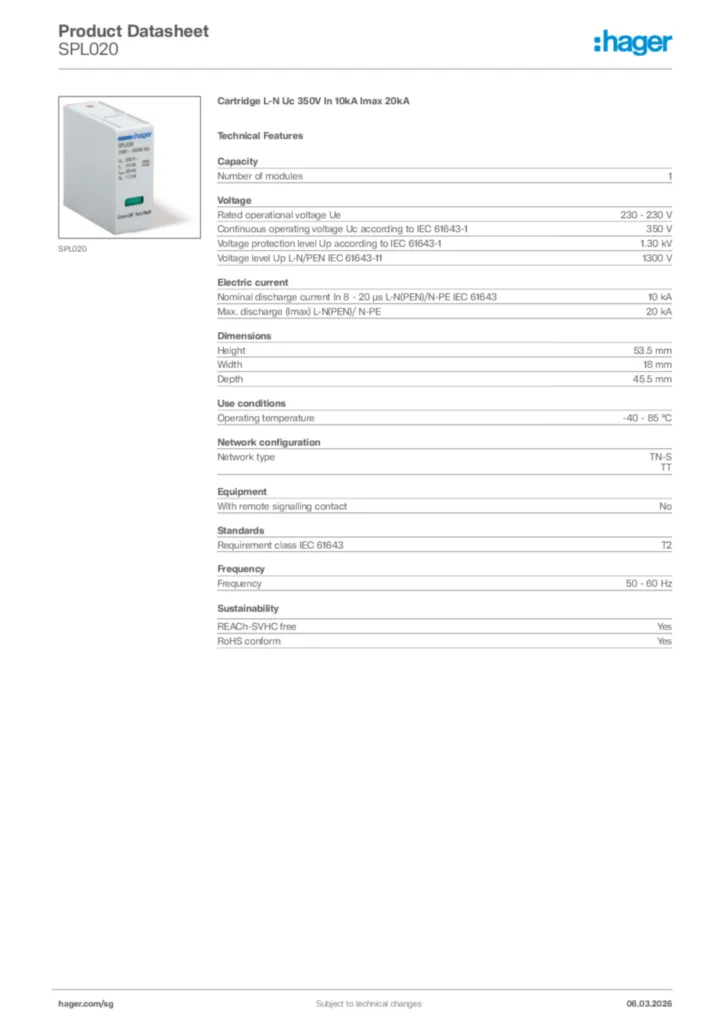

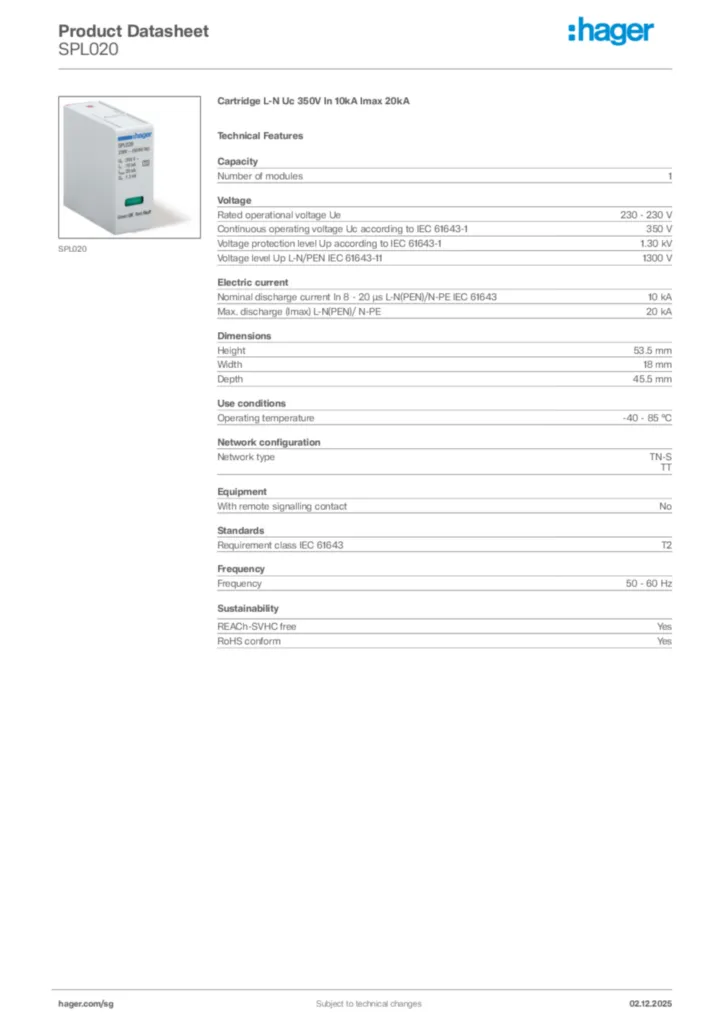

      Image Hager Product data sheet SPL020 | Hager

      Hager Product data sheet SPL020

      Cartridge L-N Uc 350V In 10kA Imax 20kA

      PDF

    • Installation manual

      Image Installation manual zh-CN, en-GB 2020-01-01 | Hager

      Installation manual zh-CN, en-GB 2020-01-01

      PDF
      14,68 MB

    • Brochure

      Image SPD catalogue | Hager

      SPD catalogue

      Brochure en-GB 2025-08-25

      PDF
      479,65 kB

    • Catalogue

      Image Technical Specifications SG | Hager

      Technical Specifications SG

      Catalogue en-GB 2026-01-27

      PDF
      3,27 MB
