Moulded Case Circuit Breaker X250 4P 40kA 160A TM HNB161U

EAN-Nr.
3250613347703
Packaging
1 piece
Only available for export countries

Complete your system

Optional accessories

  • See more (24)
    • Auxil­i­aries contact block 4 products available
    • Under voltage coil 8 products available
    • Motor oper­ator 2 products available
    • Shunt release 5 products available
    • Connec­tion Func­tions 1 products available
    • Phase separ­a­tion func­tions 1 products available

    Technical characteristics

    Elec­tric current
    • Rated current
      160 A
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 400 V AC IEC 60947-2
      40 kA
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 240 V AC IEC 60947-2
      85 kA
    • Rated current 10°C according to IEC 60947
      189,40 A
    • Rated current 15°C according to IEC 60947
      185,90 A
    • Rated current 20°C according to IEC 60947
      182,40 A
    • Rated current 25°C according to IEC 60947
      178,70 A
    • Rated current 30°C according to IEC 60947
      175,20 A
    • Rated current at 35°C according to IEC 60947
      171,50 A
    • Rated current at 40°C according to IEC 60947
      167,80 A
    • Rated current 45°C according to IEC 60947
      163,80 A
    • Rated current 50°C according to IEC 60947
      160 A
    • Rated current 55°C according to IEC 60947
      156 A
    • Rated current at 60°C according to IEC 60947
      152 A
    • Rated current 65°C according to IEC 60947
      147,60 A
    • Rated current 70°C according to IEC 60947
      143,50 A
    Archi­tec­ture
    • Number of poles
      4
    • Control/­op­er­a­tion element
      Toggle
    • Device construc­tion type
      Fixed built-in
    Trip­ping
    • Response time when opening
      10 ms
    Frequency
    • Frequency
      50 - 60 Hz
    Voltage
    • Rated impulse with­stand voltage Uimp
      8000 V
    • Rated insu­la­tion voltage Ui
      800 V
    • Rated oper­a­tional voltage Ue
      220 - 415 V
    Func­tions
    • Trip unit
      TM A/A
    Power
    • Total power loss under IN
      32,60 W
    Endur­ance
    • Elec­tric endur­ance in number of cycles
      1000
    • Number of mech­an­ical oper­a­tions
      4000
    Safety
    • Ingress Protec­tion (IP) class
      IP4X
    Connec­tion
    • Cross-sec­tion flex­ible conductor
      35 - 150 mm²
    • Cross-sec­tion rigid conductor
      35 - 185 mm²
    Settings
    • Thermal protec­tion knob setting xIN
      0.63, 0.8, 1
    • Adjust­ment range short-term delayed short-­cir­cuit release
      0 - 0 A
    Compat­ib­ility
    • Suit­able for DIN Rail
      No
    Install­a­tion, mounting
    • Mount­ing-/­Con­nec­tion Posi­tion
      Front
    • Nominal tight­ening torque
      12 - 12 Nm
    Main elec­trical attrib­utes
    • Magnetic protec­tion trip time
      0 - 0 ms

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

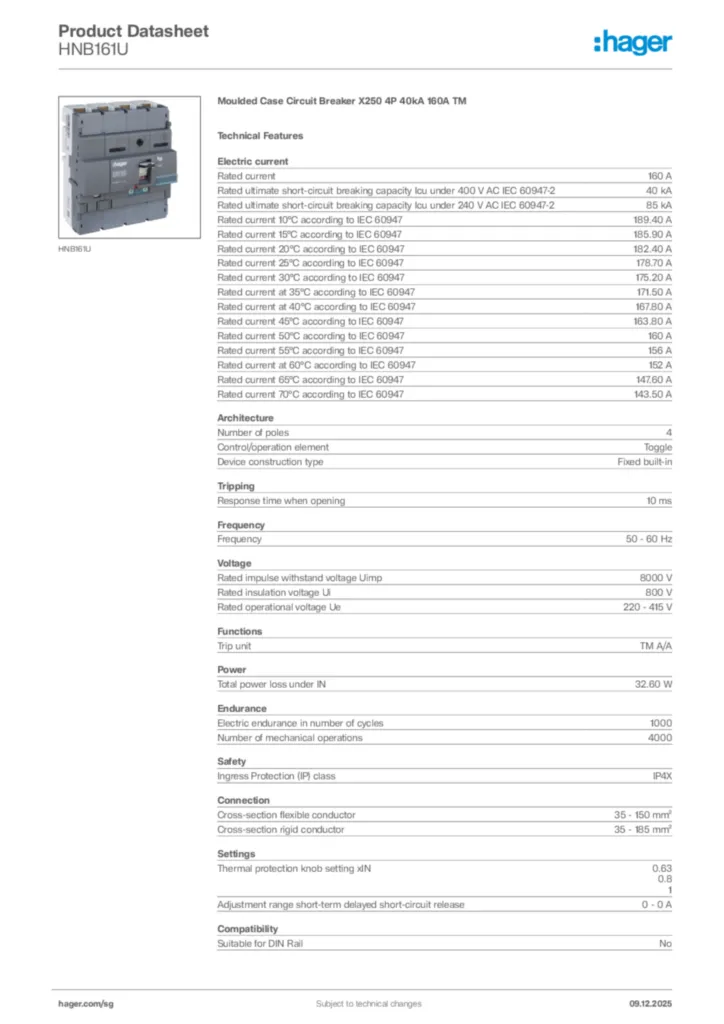

    Certifications and documents
