Moulded Case Circuit Breaker X250 4P 40kA 125A TM HNB126U

Name: HNB126U
Brand: Hager
SKU: HNB126U

EAN-Nr.

3250613347697

Packaging

1 piece

Only available for export countries

Accessories
Technical characteristics
Environmental value

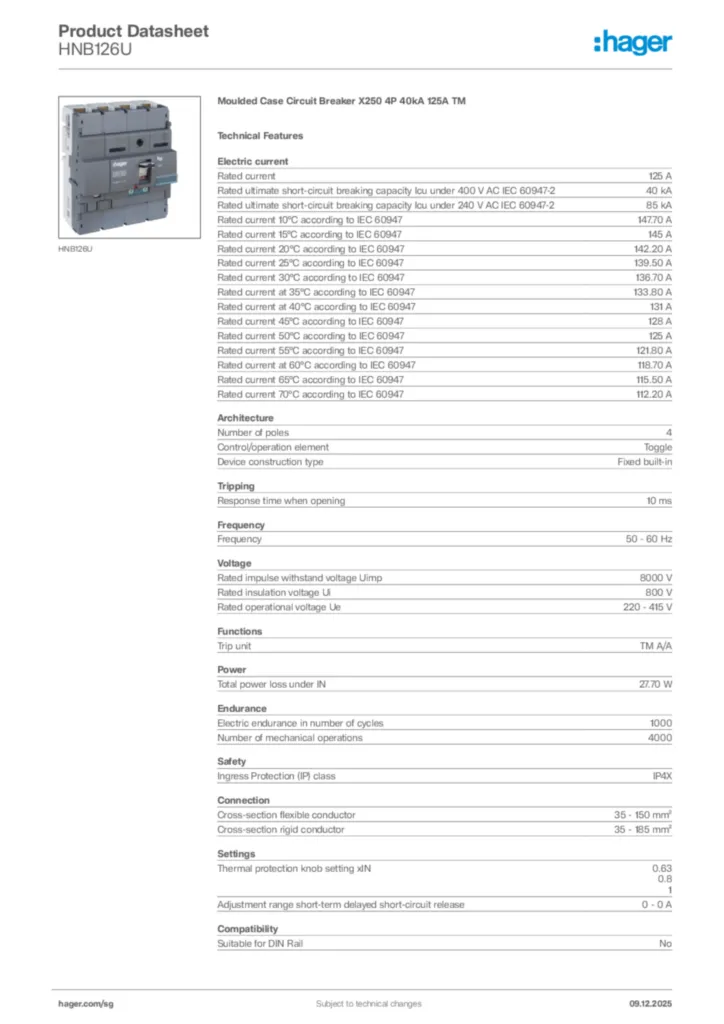

Documentations
More products

Complete your system

Auxiliaries contact block 4 products available
Under voltage coil 8 products available
Motor operator 2 products available
Shunt release 5 products available
Connection Functions 1 products available
Phase separation functions 1 products available

Technical characteristics

Rated current

125 A
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

40 kA
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-2

85 kA
Rated current 10°C according to IEC 60947

147,70 A
Rated current 15°C according to IEC 60947

145 A
Rated current 20°C according to IEC 60947

142,20 A
Rated current 25°C according to IEC 60947

139,50 A
Rated current 30°C according to IEC 60947

136,70 A
Rated current at 35°C according to IEC 60947

133,80 A
Rated current at 40°C according to IEC 60947

131 A
Rated current 45°C according to IEC 60947

128 A
Rated current 50°C according to IEC 60947

125 A
Rated current 55°C according to IEC 60947

121,80 A
Rated current at 60°C according to IEC 60947

118,70 A
Rated current 65°C according to IEC 60947

115,50 A
Rated current 70°C according to IEC 60947

112,20 A

Number of poles

4
Control/operation element

Toggle
Device construction type

Fixed built-in

Response time when opening

10 ms

Frequency

50 - 60 Hz

Rated impulse withstand voltage Uimp

8000 V
Rated insulation voltage Ui

800 V
Rated operational voltage Ue

220 - 415 V

Trip unit

TM A/A

Total power loss under IN

27,70 W

Electric endurance in number of cycles

1000
Number of mechanical operations

4000

Ingress Protection (IP) class

IP4X

Cross-section flexible conductor

35 - 150 mm²
Cross-section rigid conductor

35 - 185 mm²

Thermal protection knob setting xIN

0.63, 0.8, 1
Adjustment range short-term delayed short-circuit release

0 - 0 A

Suitable for DIN Rail

No

Mounting-/Connection Position

Front
Nominal tightening torque

12 - 12 Nm

Magnetic protection trip time

0 - 0 ms

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
